CKD PPX Series User Manual

PPX Series

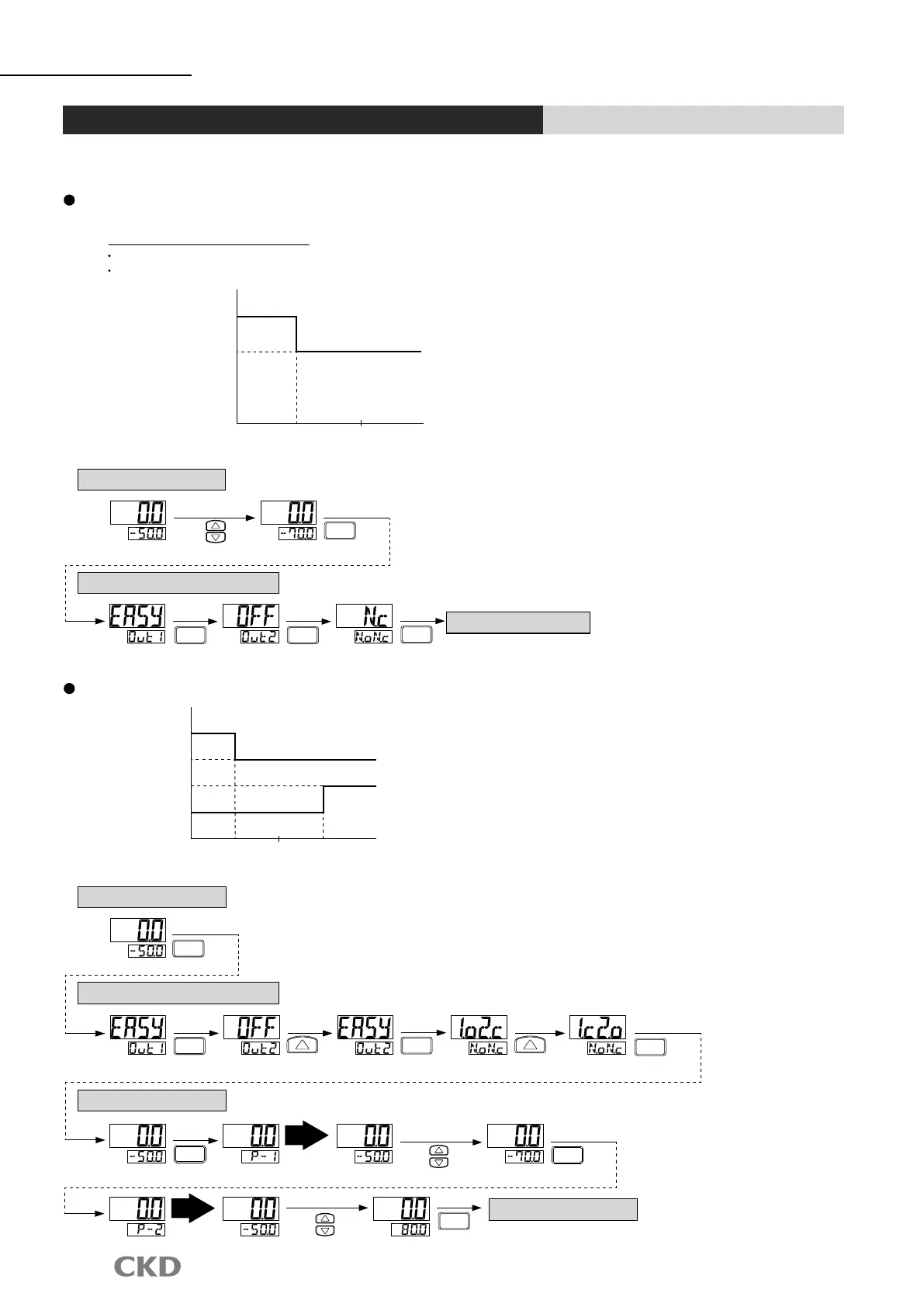

RUN MODE screen
To EASY MODE
R01 type (-100.0 to 100.0kPa)
Start from the mode when power turned ON (RUN MODE).
If RUN MODE is not selected, hold down the "MODE" key for several seconds to display the RUN MODE state.
Suction conrmation
(Note 1): This is the example of setting from default setting (default).
(Note 2): If the setting conditions are unknown, operate <reset setting> in PRO MODE, and reset to default before using.
EASY MODE
Example of setting operation per application
Menu setting mode screen
RUN MODE screen
RUN MODE screen
Suction + vacuum break conrmation
Menu setting mode screen
RUN MODE screen
Auto
MODE
RUN MODE screen
Auto
Suction conrmation
P-1
[-70.0]
-100kPa
ON
OFF
0kPa
Comparison output 2
OFF
Comparison output 1
EASY MODE
Hold down for 2 s.
Press to
match the setting.
Setting completion
Press once.Press once.
Hold down for 2 s.
MODEMODE MODE
Vacuum break
conrmation
Suction conrmation
P-1
[-70.0]
-100kPa
Comparison output 2
EASY MODE
Comparison output 1
EASY MODE
ON
OFF
ON
OFF
P-2
[80.0]
0kPa
MODE
Hold down for 2 s.
Hold down for 2 s.
Press twice.
Press once.
Press once.
Press once.
MODE
Press once.
Press once.
MODE
MODE
MODE
Hold down for 2 s.
MODE
MODE
Press to
match the setting.
Press
to
match the setting.
