CELTIS 10.2007
GB
B.2

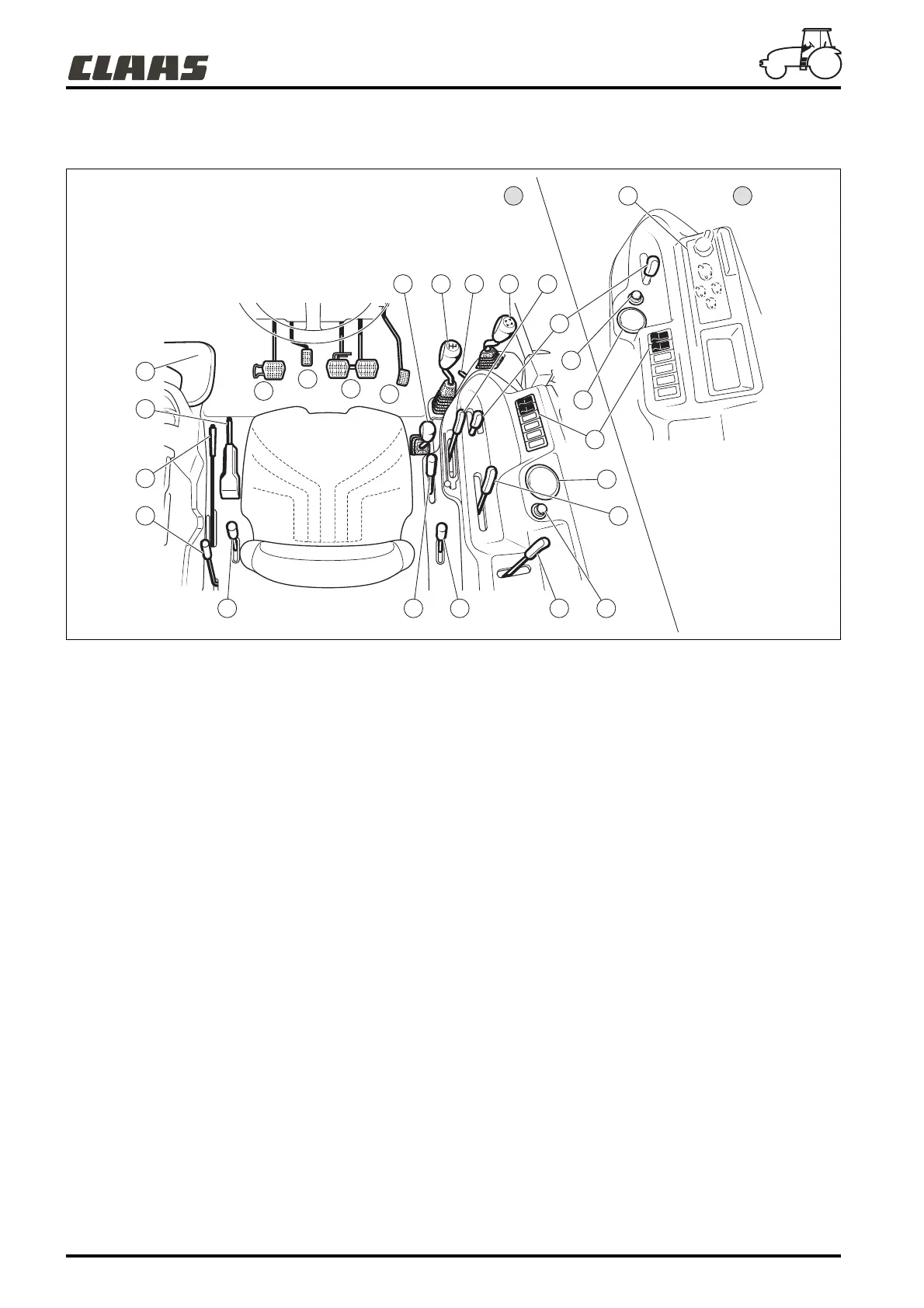

CONTROLS AND DRIVING POSITION
761bsn01
Installation
A
- With "Tracto Control" hydraulic lift.
Installation
B
- With "TCE
9
" electrohydraulic lift.
1-
Hand brake lever.
2-
Passenger seat.
3-
Range lever.
4-
Gear lever/impulse contactor "hydraulic doubler"*.
5-
Cross control lever locking control.
6-
Auxiliary distributor cross control.
7-
Lift control lever (position control).
8-
Accelerator lever.
9-
Contactor plate (
4
driving wheels, front power take-
off...).
10 -
Lift control lever (force control).
11 -
Ashtray.
12 -
Cigarette lighter.
13 -
Hitch hook release lever.
14 -
Power take-off clutch release lever (hydraulic
engagement version ).
15 -
Auxiliary distributor control lever.
16 -
Power take-off rate selection lever.
17 -
Crawler range selection lever.
18 -
Power take-off clutch release lever (mechanical
engagement version).
19 -
TCE
9
Electronic tracto-control lift.
20 -
Clutch pedal.
21 -
Rear live axle differential claw pedal.
22 -
Brake pedals.
23 -
Accelerator pedal.
2
4 5 6
A B
3
1
18
17
16 15 14 13 12
11
11
19
10
9
8
12
7
20
21
22
23
*
*Concerns the gearbox with "TWINSHIFT" hydraulic doubler.
