CELTIS 10.2007
GB
B.16

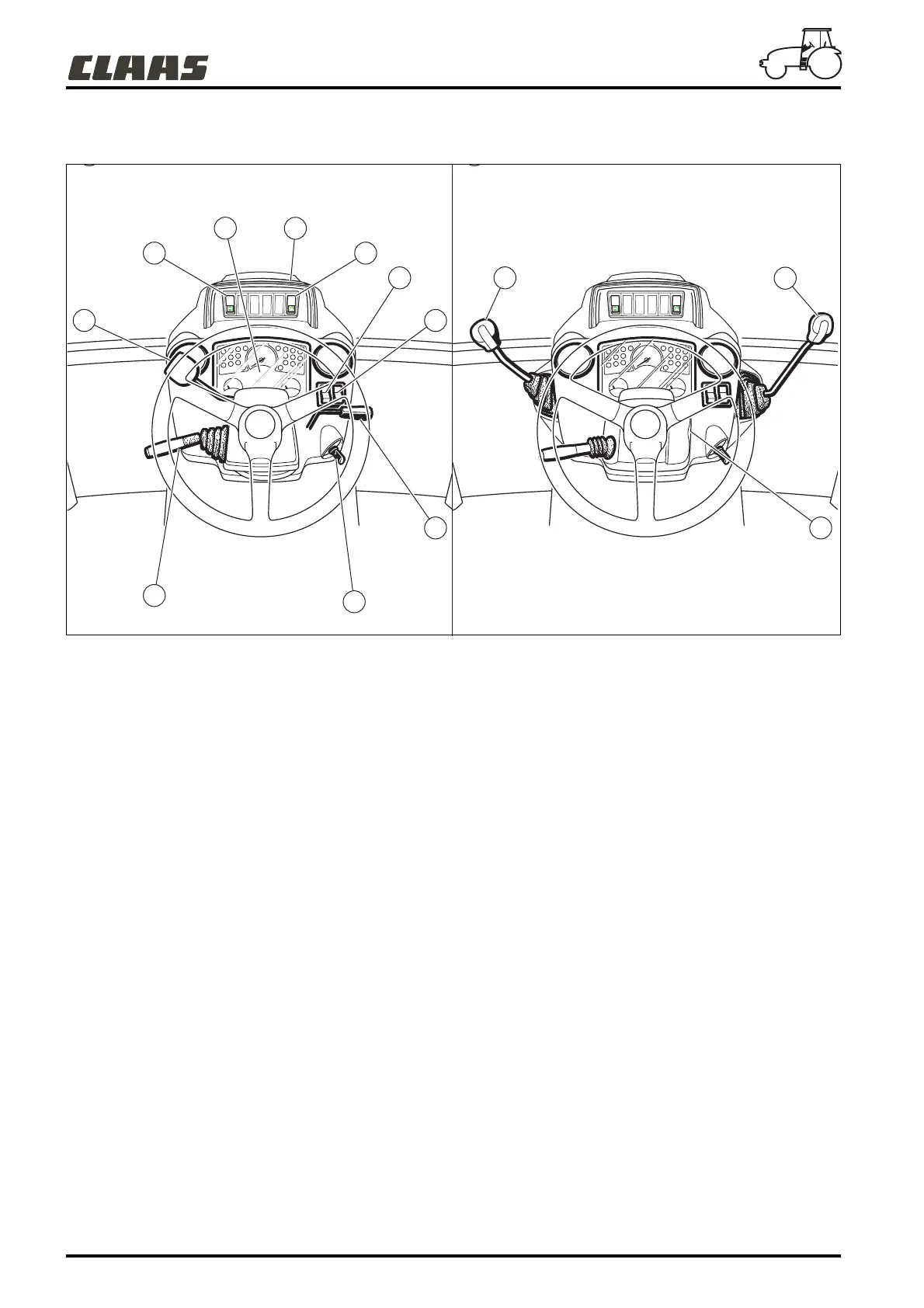

INSTRUMENTS AND CONTROLS (PANEL)
761bsn08
1-
Hydroelectric forward/reverse lever (REVERSHIFT).
2-
The fuse plate box casing.
3-
Instrument cluster.
4-
Front axle control button.
5-
Rear working lights switch.
6-
Rotating light control button.
7-
Emergency alarm button.
8-
Key operated ignition.
9-
Mechanical range doubler lever.
10 -
Direction indicators, lighting and warning lights.
11 -
Mechanical drive reverser lever.
12 -
Steering wheel height/angle adjustment control.
13 -
Button:
-
Setting the digital clock.
-
Data scrolling on digital instrument panel display.
1
10
3
2
7
12
116
9
13
4 5
8
