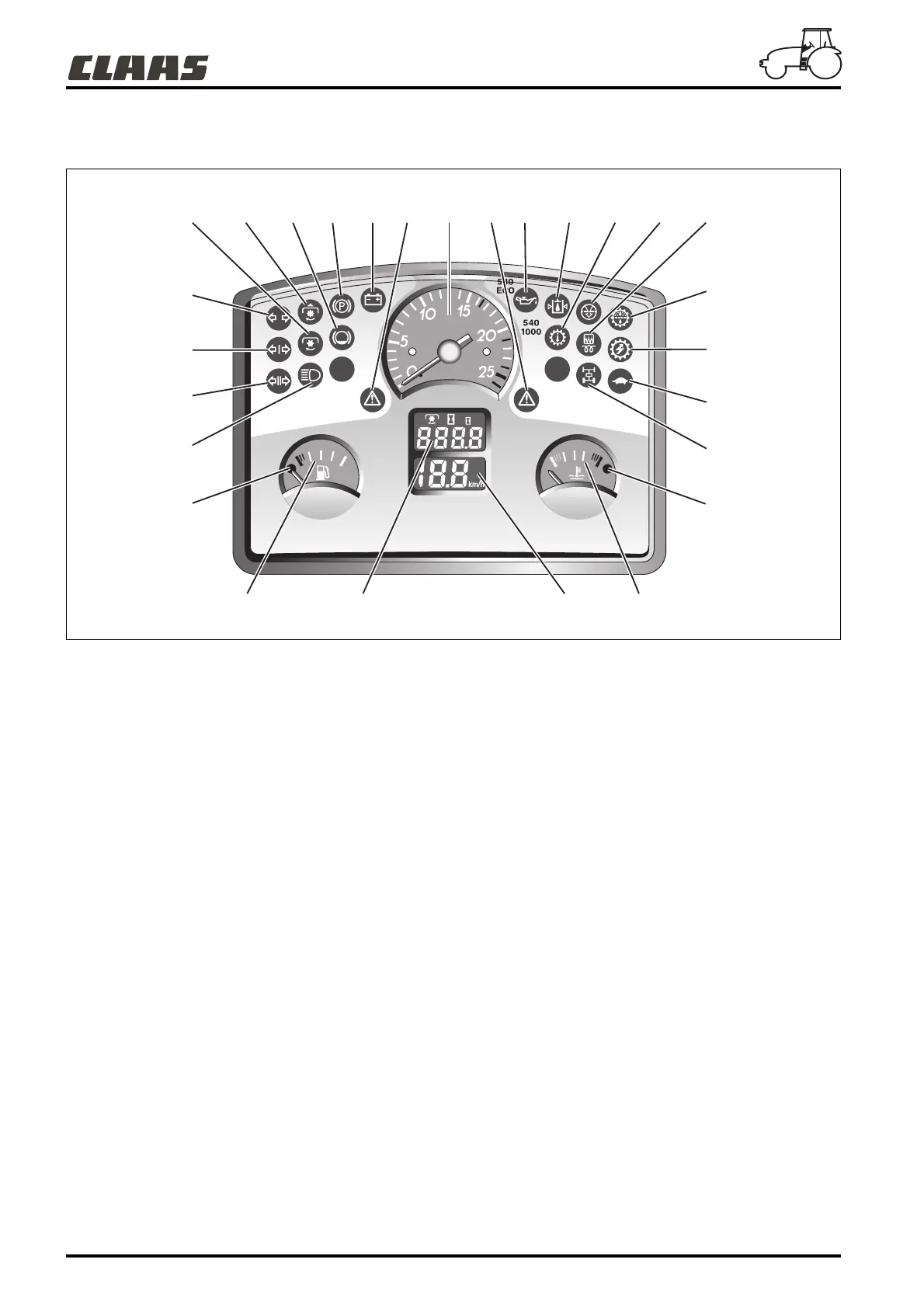

INDICATOR AND CONTROL LIGHTS
761bsn03
1-
Fuel low level warning light.
2-
Main beam indicator.
3-
2nd trailer direction indicators repeater.
4-
1st trailer direction indicators repeater.
5-
Tractor direction indicators repeater.
6-
Rear power take-off indicator.
7-
Front power take-off indicator.
8-
Not used.
9-
Hand brake warning light.
10 -
Battery charge warning light.
11 -
Emergency stop light.
12 -
Engine oil pressure warning light.
13 -
"Hydraulic doubler" oil pressure warning light.
14 -
Transmission oil temperature warning light.
15 -
Blocked dry type air filter warning light.
16 -
Automatic preheating / engine computer defect warning
light (only on
Celtis 456
).
17 -
Not used.
18 -
Transmission computer defect warning.
19 -
Hydraulic doubler warning (reduced speed).
20 -
Front axle engagement indicator light.
21 -
Engine coolant temperature warning light.
A-
Fuel gauge.
B-
Engine tachometer.
C-
Engine coolant temperature gauge.
D-
Theoretical forward speed indicator in km/h or mph.
E-
Display:
-
Trip hour meter.
-
Total hour meter.
-
Rear power take-off speed.
-
Engine speed in rpm.
-
Digital clock.
10
12 13 14 15
16
17
18
19
5
4
3
1
20
21
1111678910
2
A
B
C
D
E
