CELTIS 10.2007
GB
B.9

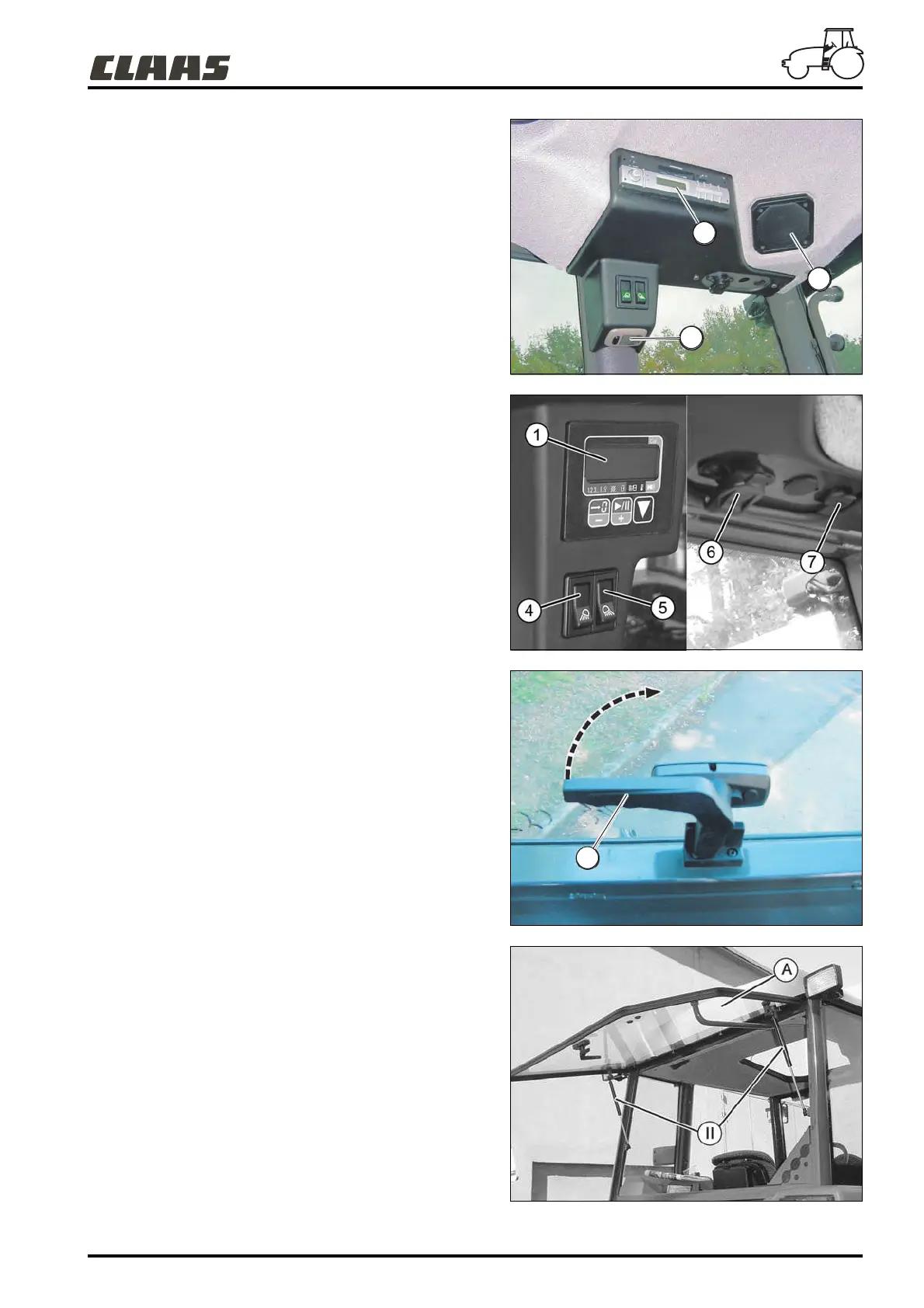

CONTROLS AND ACCESSORIES IN
THE CAB ROOF
RIGHT-HAND SIDE
1-
On board computer (see chapter
I
"On board computer").
2-
Radio.
3-
Loudspeaker.
4-
Front working lights switch.
5-
Rear working lights switch.
6-
ISO tool electrical connection,
25
amps.
7-
Event counter connection for the on-board computer.
8-
Overhead light.
RADIO
The radio
(2)
and loudspeakers
(3)
are fitted in the cab roof.
EQUIPMENT PROVISION
These models have provision for installing a radio (loudspeaker
wire, aerial wire and connection, power to the radio and roof
aerial).
Note: for the installation of a radio, consult an authorised
CLAAS agent.
CONTROLS AND ACCESSORIES
NATURAL VENTILATION
REAR OPENING WINDOW
(A)
Opening
-
Turn handle
(I)
90
° in the direction of the arrow to unlock it.
-
Push the rear panel until it opens. The window is held in the
open position by the stabilisers
(II)
.
Closure
Pull the rear panel down against the cab frame, and lock the
handle
(I)
.
841bsn04
841bsn05
841bsn06
841bsn07
2
3
8
l
