Claas CELTIS 446 User Manual

CELTIS – 10.2007 – GB
B.3

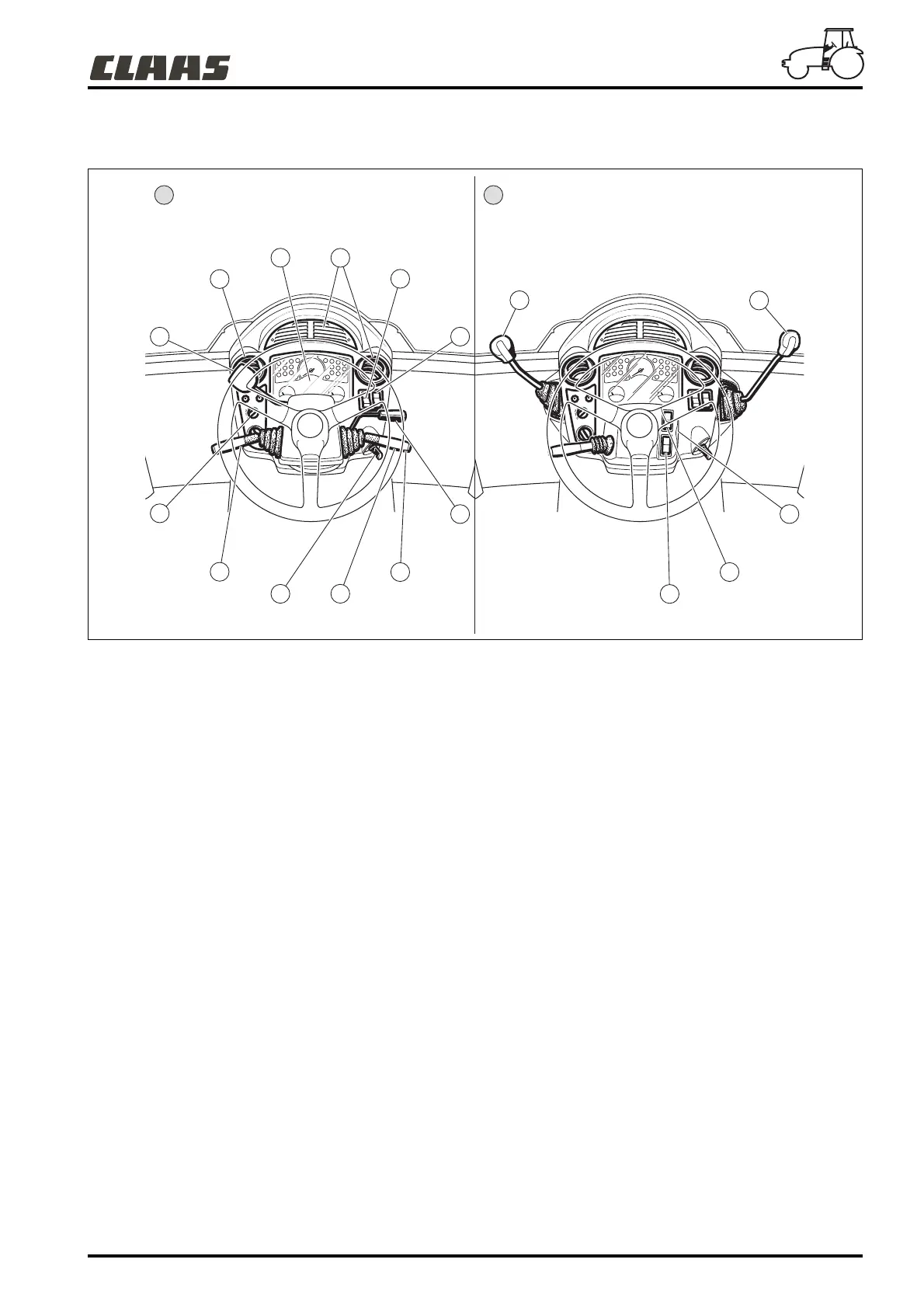

INSTRUMENTS AND CONTROLS (PANEL)
761bsn02
Installation A - With "REVERSHIFT" electrohydraulic drive inverter.
Installation
B - With mechanical drive inverter.
1- Hydroelectric forward/reverse lever (REVERSHIFT) .
2- Air vents.
3- Instrument cluster.
4- Rotating light control button.
5- Emergency alarm button.
6- Mechanical range doubler lever.
7- Main switch (key operated).
8- Windscreen wipers.
9- Windscreen washers.
10 - Direction indicators, lighting and warning lights.
11 - ventilation /air conditioning control panel.
12 - Steering wheel height/angle adjustment control.
13 - Digital clock adjustment knob (assembly B ).
14 - Mechanical drive reverser lever.
1
11
10
7
9
2
3
2
4
5
12
8
14
6
8
9
13
A B

Claas CELTIS 446 Specifications

General

Displacement	4.5 L
Transmission	ZF T-7220
Max. Speed	40 km/h
Engine type	4-cylinder diesel
Hydraulic Pump Flow	60 lpm
Wheelbase	2, 500 mm
Type	Standard tractor
Lift Capacity	5, 000 kg
