Claas CELTIS 446 User Manual

CELTIS – 10.2007 – GB
C.3

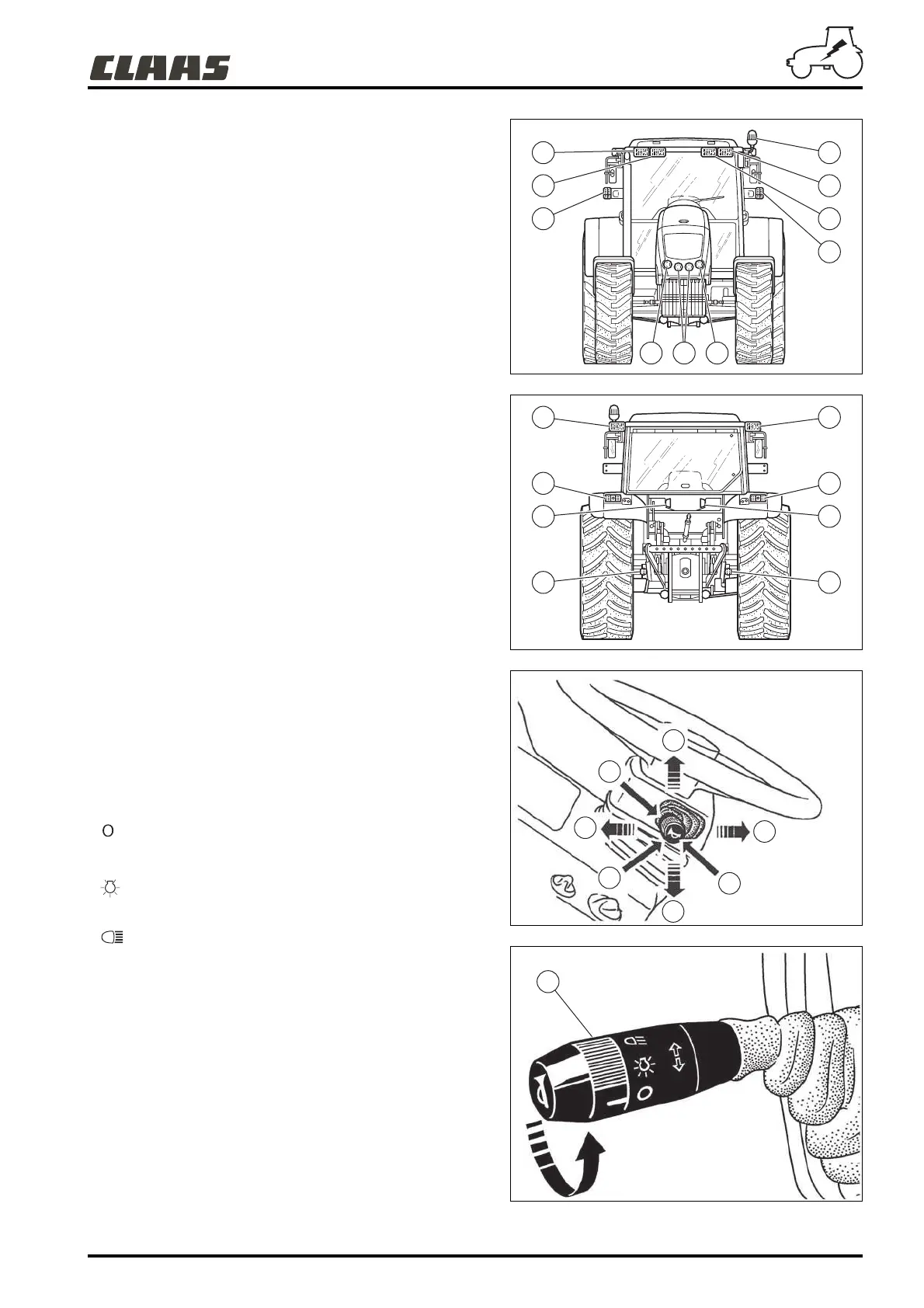

LIGHTING - INDICATORS
AT THE FRONT
1- Main beam lights.
2- Dipped headlights.
3- Side indicator repeaters.
• Direction indicators and hazard warning lights.
• Side lights.
4- Working lights.
5- Rotating beacon.
6- Dipped headlights (depending on equipment fitted and
destination).
AT THE REAR
7- Side indicator repeaters:
• Direction indicators and hazard warning lights.
• Brake lights and rear lights.
• Reflector.
8- Plate lighting.
9- Working lights.
10 - Reflector.
CONTROLS
Direction indicators
- Right side (I) .
- Left side (II) .
Horn (III)
Press the lever.
Headlights
Turn the end of the lever (A) anti-clockwise.
Position:
To change from dipped to full beam, press the lever to position
(10) .
Return the lever to position
(11) to change back to dipped
headlights.
To flash headlights
Pull the lever towards the steering wheel (12) .
601bsn63
601bsn65
601bsn10
601bsn11
= lights off
= side lights
= dipped beam/main beam headlights.
4 5
3
6
1 2 1
4
3
6
9
7
8
10
9
7
8
10
12
II
III
10
11
A
I
A
