2.1.4 RHB MEDION 340 - 310 - 299 216.0
Cab

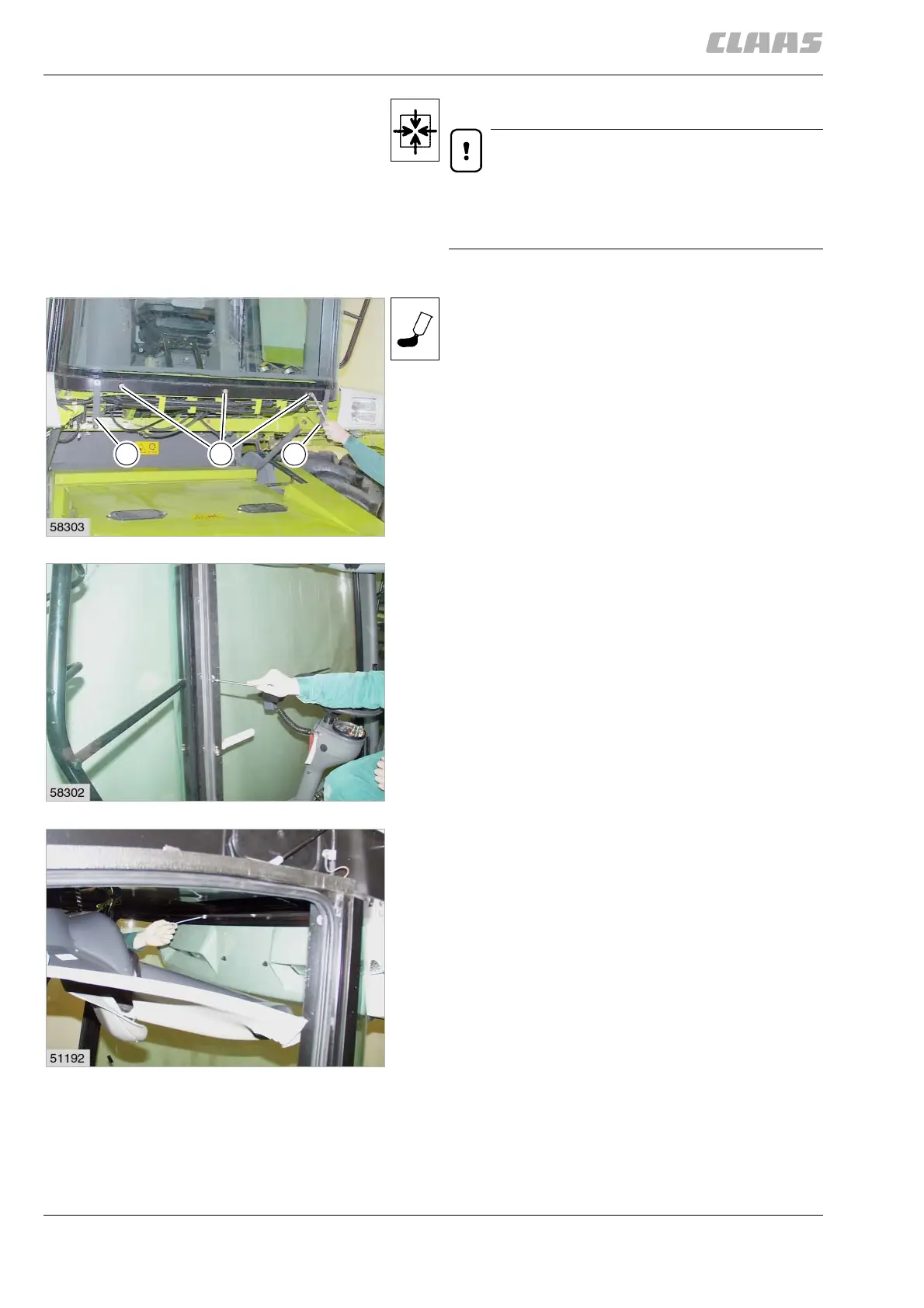

Installing the front frame
Important!
Prior to installation, remove sealing compound
residues from the windscreen frame and the cab
contact points.
1. Apply liquid sealing compound,
e.g. omni FIT FD 10 (part no. 241 880.0),
all around the windscreen frame.
2. Lift the windscreen in front of the cab with a suita-
ble suction device and screw in three hex.
bolts (O) at the bottom windscreen frame and four
hex. bolts each at the lateral windscreen frames
on the left and right side.
3. Bolt down brackets (P) on the left and right side.
(Fig. 12, 13)
4. Screw in four hex. bolts at the top windscreen
frame.
(Fig. 14)
O
P
P
12
13
14
