clage DEX Next User Manual

CLAGE
19
Model DEX Next
Energy efficiency class A *
)
Rated capacity / rated current 18 kW..27 kW (26 A..39 A)
Chosen capacity / current 18 kW / 26 A 21 kW / 30 A 24 kW / 35 A 27 kW / 39 A
Electrical connection 3~ / PE 380..415 V AC 3~ / PE 400 V AC
Min. required cable size
1)
4.0 mm
2
4.0 mm
2
6.0 mm
2
6.0 mm
2
Hot water (l/min)
max. at ∆t = 28 K
max. at ∆t = 38 K
9.2
2)
6.8
10.7
2)
7.9
12.3
2)
9.0
2)
13.8
2)
10.2
2)
Rated volume 0.5 l
Rated pressure 1.0 MPa (10 bar)
Connecting type pressure-resistant / pressureless
Heating system Bare wire heating system IES
®
@ 15 °C:
Required specific water resistance
Specific electrical conductivity
≥ 1100 cm
≤ 90 mS/m
Inlet temperature ≤ 70 °C
Flow rate to switch on – max. flow rate 1.5 l/min – 8.0
3)
Pressure loss 0.2 bar at 2.5 l/min 1.3 bar at 9.0 l/min
Temperature range 20 – 60 °C
Water connection G ½inch
Weight (when filled with water) 4.2 kg
VDE class of protection I
Type of protection / safety
IP25
*
) The declaration complies with the EU regulation No812/2013.
1) Maximum applicable cable size is 10 mm
2
at electrical connection from above
2) Mixed water
3) Flow rate limited to achieve optimum temperature rise
4) Without flow regulator

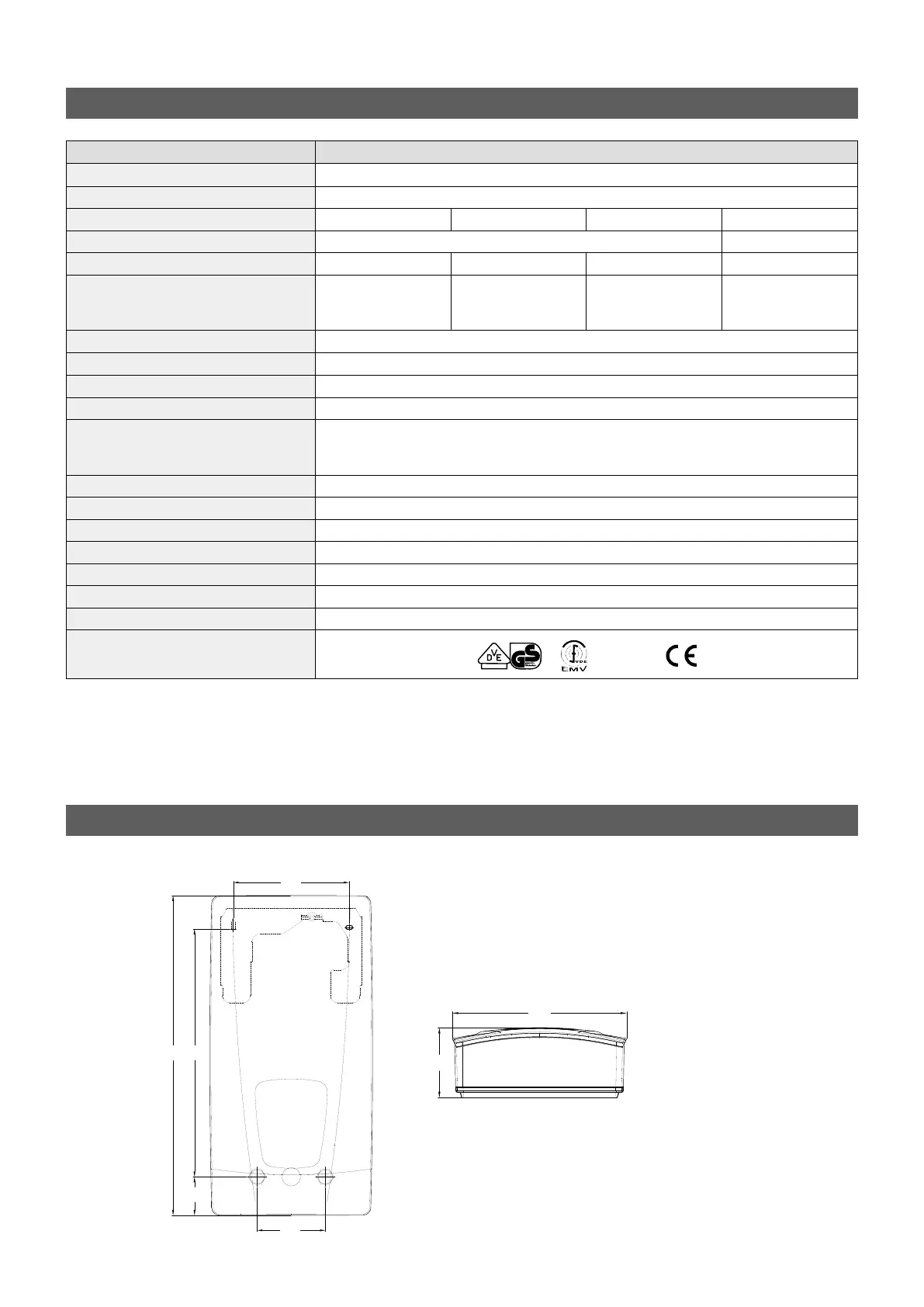

2. Technical specifications
3. Dimensions
100
170
468 363
56
96
239
Dimensions in mm
