Clarion APA4203/APA4I62
2-Channel Stereo System With
Low-Pass Bridged Mono Channel
FRONT PANEL SETTINGS
HLTER FILTER
CHI/2 CH3/4
Set Filter Frequencies to speaker manufacturer's specifications .
Bridged Mono
(Subwoofer)

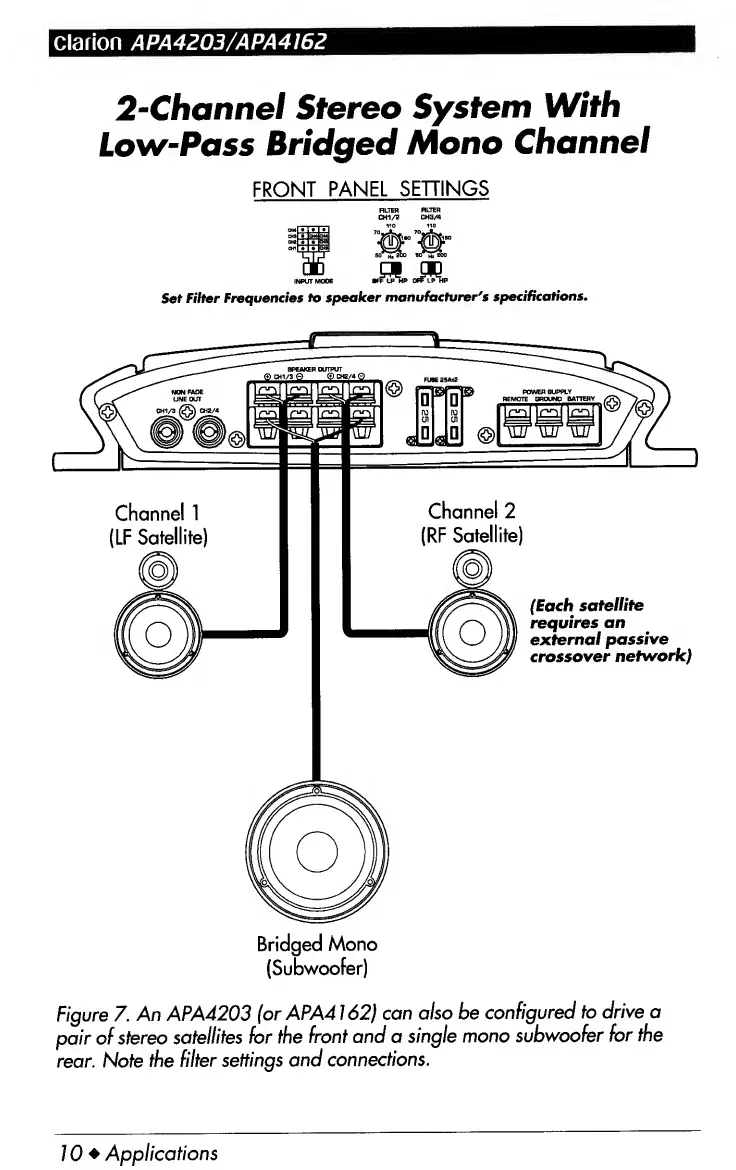

Figure 7. An APA4203 (or APA4162) can also be configured to drive a
pair of stereo satellites for the front and a single mono subwoofer for the
rear . Note the filter settings and connections.
