5-channel System
2-Channels High-Pass, 2-Channels Band-Pass Plus Sub

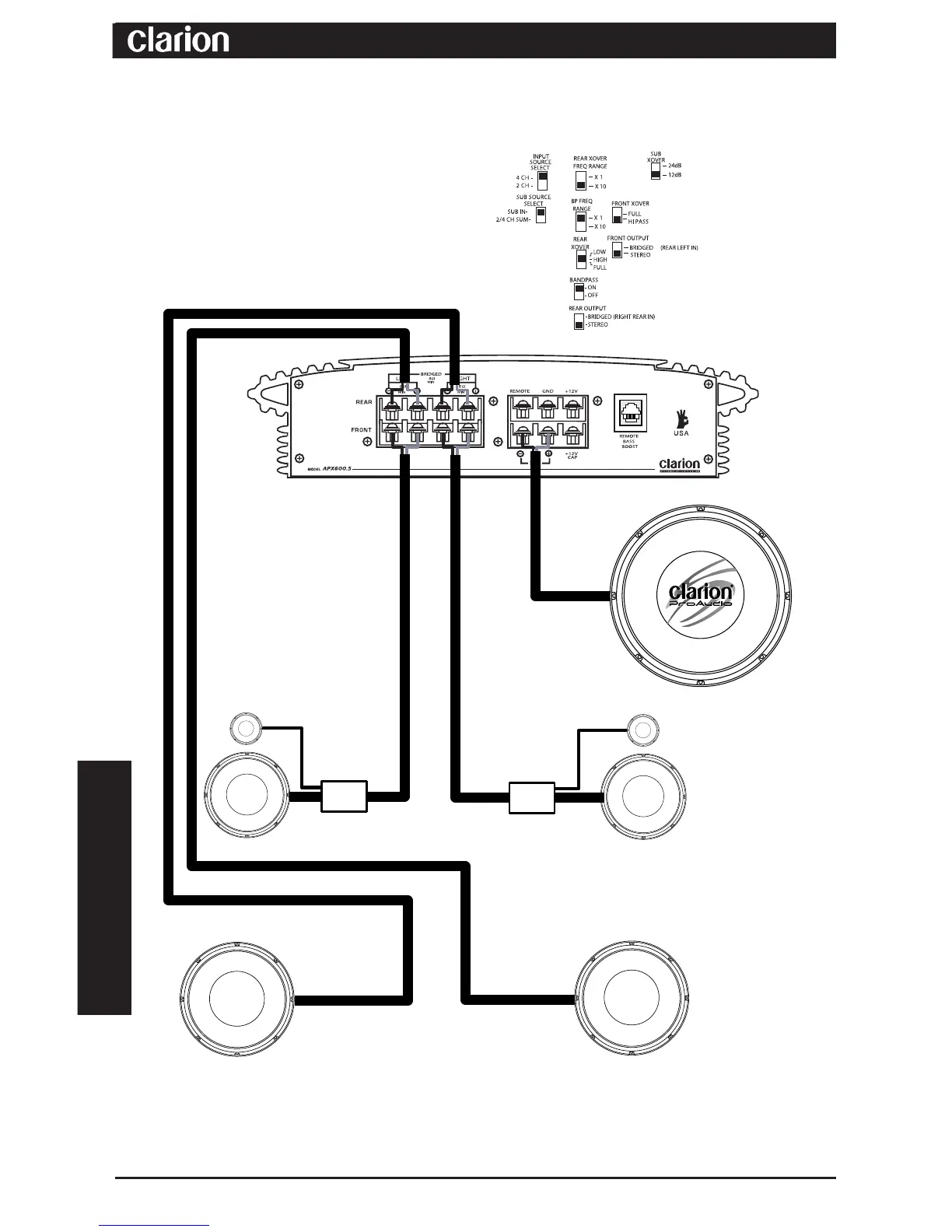

Figure 6 -
In this 5-channel system, the
APX600.5 drives a pair of stereo
satellites for the front and a pair of stereo mid bass for the rear plus a sub. Note
the system configuration settings.
