APPLICATIONS
The Clarion APX600.5 multi-channel car audio amplifier can be used in a
variety of system applications. Enclosed are some example system layouts to
help plan your own installation.
3-Channel Mode

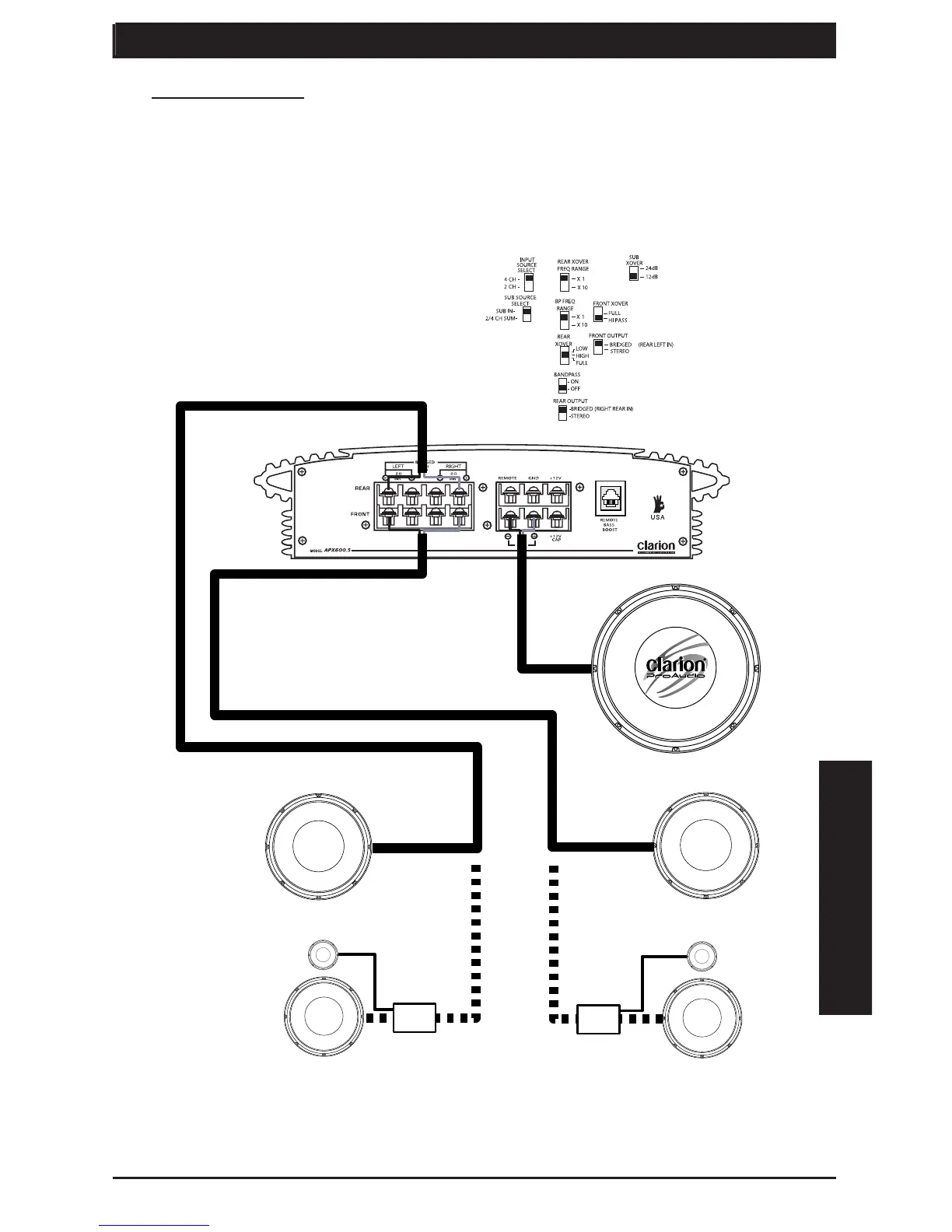

Figure 5 - In this application, the APX600.5 is used as a 3-channel amplifier to
drive two full-range or Satellite speakers in stereo plus a subwoofer.
OWNER'S MANUAL
7
APPLICATIONS
OWNER'S MANUAL
APPLICATIONS
L Full Range
R Full Range
L Satellite
2-way Passive
Crossover
R Satellite
2-way Passive
Crossover
