INSTALLATION AND
CONNECTION
WIRE

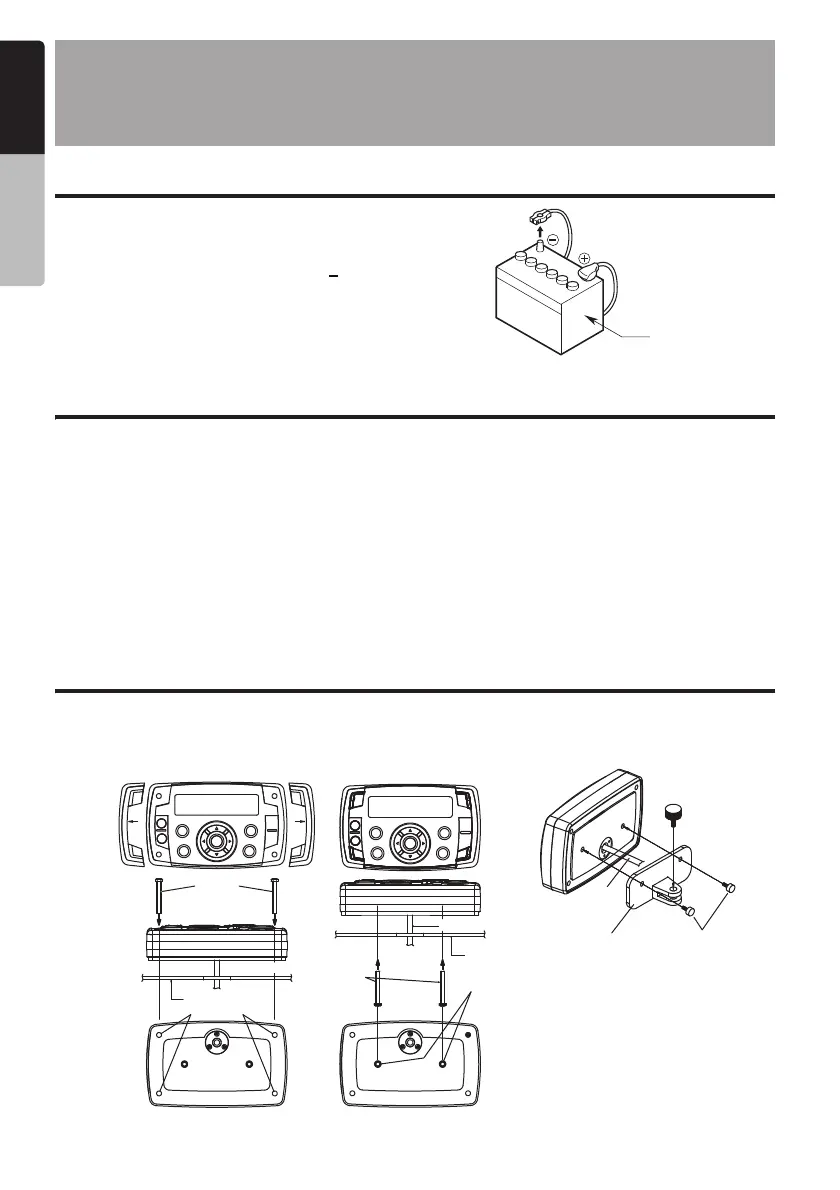

1. BEFORE STARTING
1. This set is exclusively for use in vessels with
a negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “ ” terminal
before starting. This is to prevent short circuits
during installation. (Figure 1)
2. INSTALLATION CAUTIONS
3. INSTALLATIONDISPLAY CONTROLLER
Battery
Figure 1
1. In order to avoid any interference, do not install the tuner module or control unit in the proximity of
the engine compartment.
2. The use of unauthorized parts can cause permanent damage to the unit.
3. Always check your wire connections to ensure proper installation before turning on the unit.
4. Consult with your nearest dealer for proper installation or if common parts need to be used.
Seek assistance if modifications or drilling holes to your vessel is needed.
5. Do not install the unit where it will be subjected to excessive moisture, dust, dirt, foreign particles
or vibration. Areas of high temperature from the engine, direct sunlight, heater or hot air should
also be avoided.
6. Do not install the unit in a location where it will interfere with the vessel operation, or it will injure the
passengers if there is a sudden or emergency stop.
M4 Tapping
Screw
4 Pcs
M4 Machine
Screw
2 Pcs
8-Pin DIN Cable
8-Pin DIN Cable
8-Pin DIN
Cable
Mounting
Bracket
Flush Mount
Flush Mount
Screw Hole
Method 3
This method requires the
purchase of the optional
BKU001 Gimbal mount
accessory
1. The control unit should be mounted to a dry, clean and flat surface. Ensure the rear gasket is fully
sealed to the mounting surface without distorting the unit.
2. Select one of the three recommended methods that best fit your vessel.
Method 1
Screw Hole
Method 2
CMS2
18
English
Owner’s Manual
