Cautions On Wiring

• Be sure to turn the power off before wiring. Be particularly careful where you route the wires.

• Keep them well away from the engine, and exhaust pipe, etc. Heat may damage the wires.

• If the fuse should blow, check to see if the wiring is correct. If a fuse is blown, replace it with a

new one of the same specication as the original.

• To replace the fuse, remove the old fuse of the power supply cord and insert the new one.

Note:

• There are various types of fuse holder. Do not let the battery side touch other metal parts.

• After connection, x the cord using a clamp or insulation tape for protection.

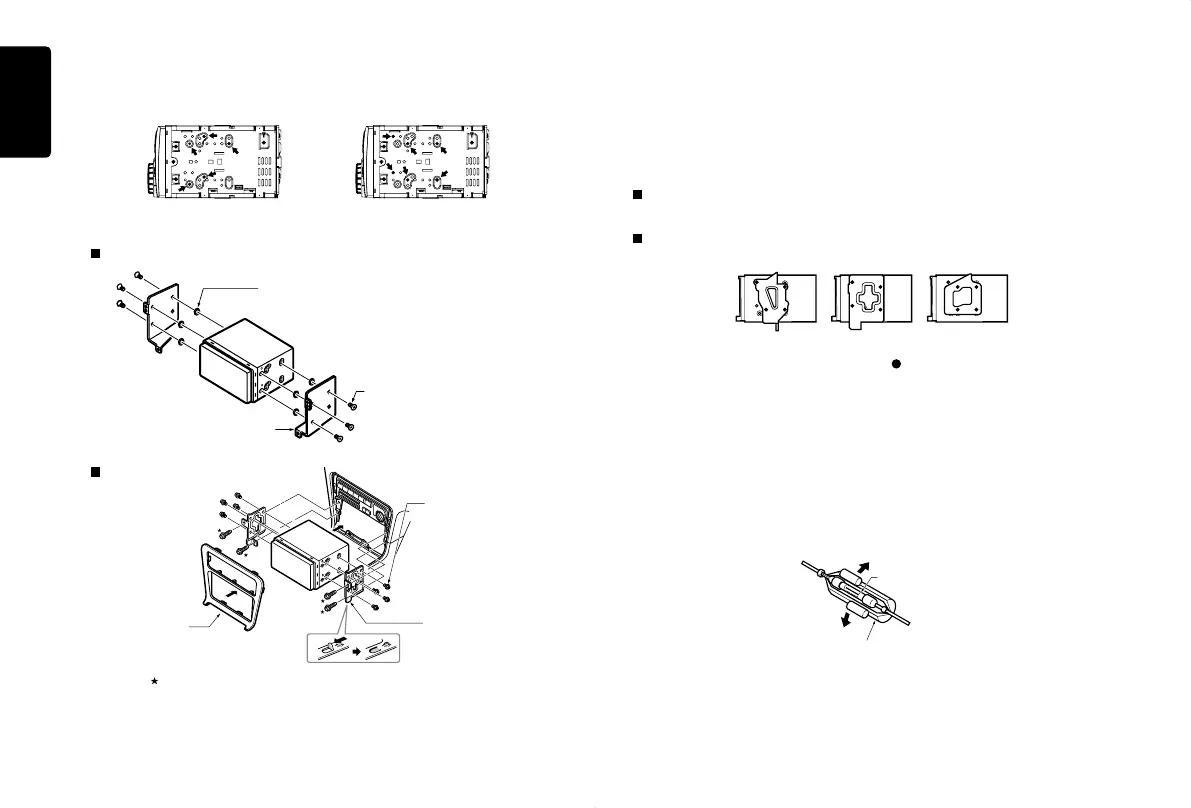

Mounting Screw Holes (Side View of the Main Unit)

Screws marked are included in the vehicle.

Note:

*1 Some panel openings are too small for the unit depending on the vehicle type and model.

In such a case, trim the upper and lower sides of the panel frame by about 0.5 to 1.5 mm so

the unit can be inserted smoothly.

*2 If a hook on the installation bracket interferes with the unit, bend and atten it with a nipper

or similar tool.

Vehicles other than NISSAN and TOYOTA

In some cases the center panel may require modication. (Trimming, lling, etc.)

Typical Mounting Brackets

In some cases the center panel may require modication. (Trimming, lling, etc.)

Afx the screws to the marks.Afx the screws to the mark

Fuse (15A FUSE)

6-Spacer (thickness: 1 mm)

Mounting bracket

(1 pair for the left and right sides)

Mounting bracket

(1 pair for the left and right sides)

6-Flat head screw (M5 × 6)

(attached to the main unit)

8-Hexagonal screw (M5 × 6)

Center Panel *1

NISSAN

TOYOTA

Fuse holder
