4)

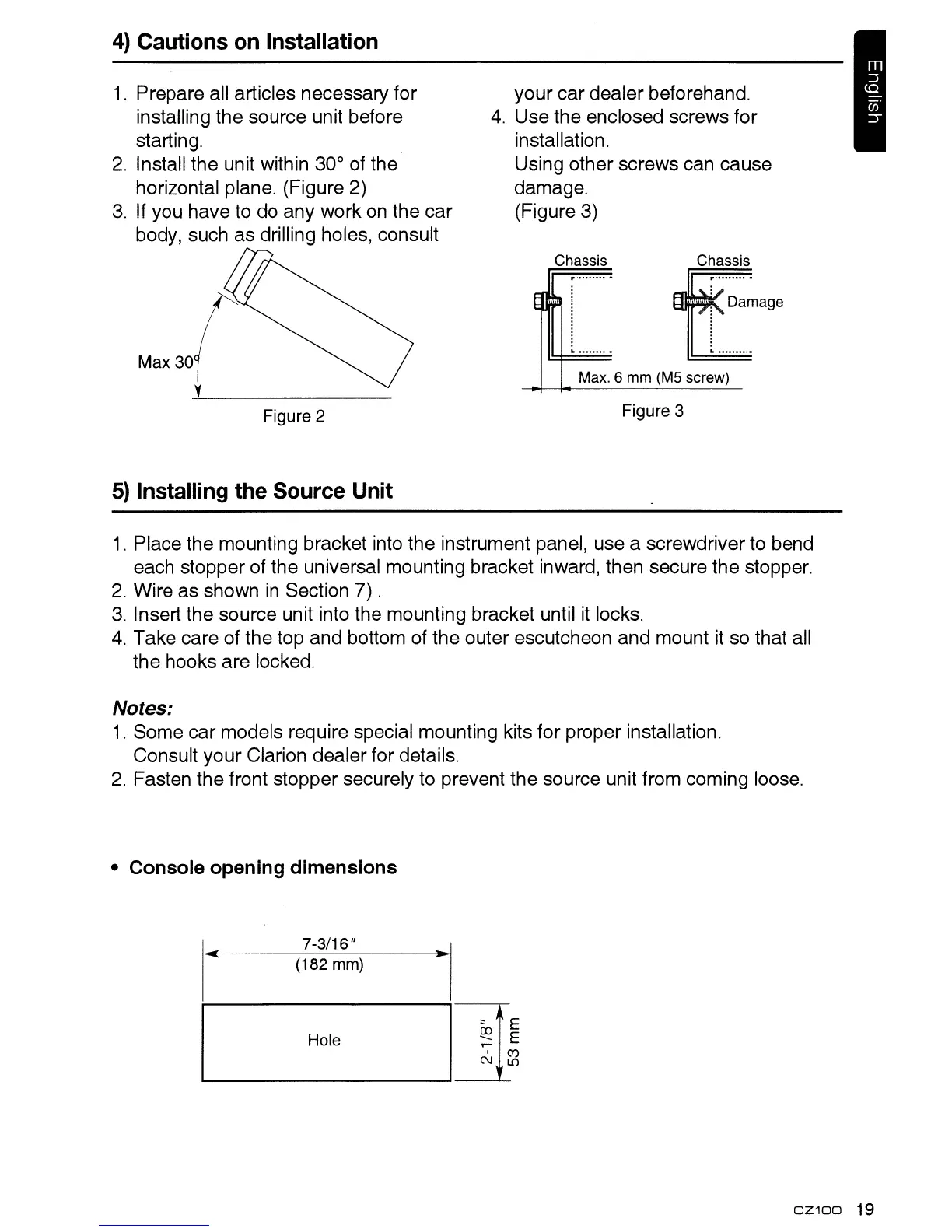

Cautions on Installation
1.
Prepare all articles necessary for
installing the source unit before
starting.
2.
Install the unit within 30° of the
horizontal plane. (Figure 2)
3.
If
you have to do any work
on
the car
body, such as drilling holes, consult
your car dealer beforehand.
4.
Use the enclosed screws for
installation.
Using other screws can cause
damage.
(Figure 3)
Max. 6 mm (M5 screw)
Max 30
Chassis Chassis
ff·~:~age
to
••••••••.•
Figure 2
5)
Installing the Source Unit
Figure 3
1.
Place the mounting bracket into the instrument panel, use a screwdriver to bend
each stopper of the universal mounting bracket inward, then secure the stopper.
2.
Wire as shown
in
Section 7) .
3.
Insert the source unit into the mounting bracket until
it
locks.
4.
Take care of the top and bottom of the outer escutcheon and mount
it
so that all
the hooks are locked.
Notes:
1.
Some car models require special mounting kits for proper installation.
Consult your Clarion dealer for details.
2.
Fasten the front stopper securely to prevent the source unit from coming loose.
• Console opening dimensions
7-3/16"
~I
..
(182
mm)
Hole
I]~
CZ100
19
To Next Page
