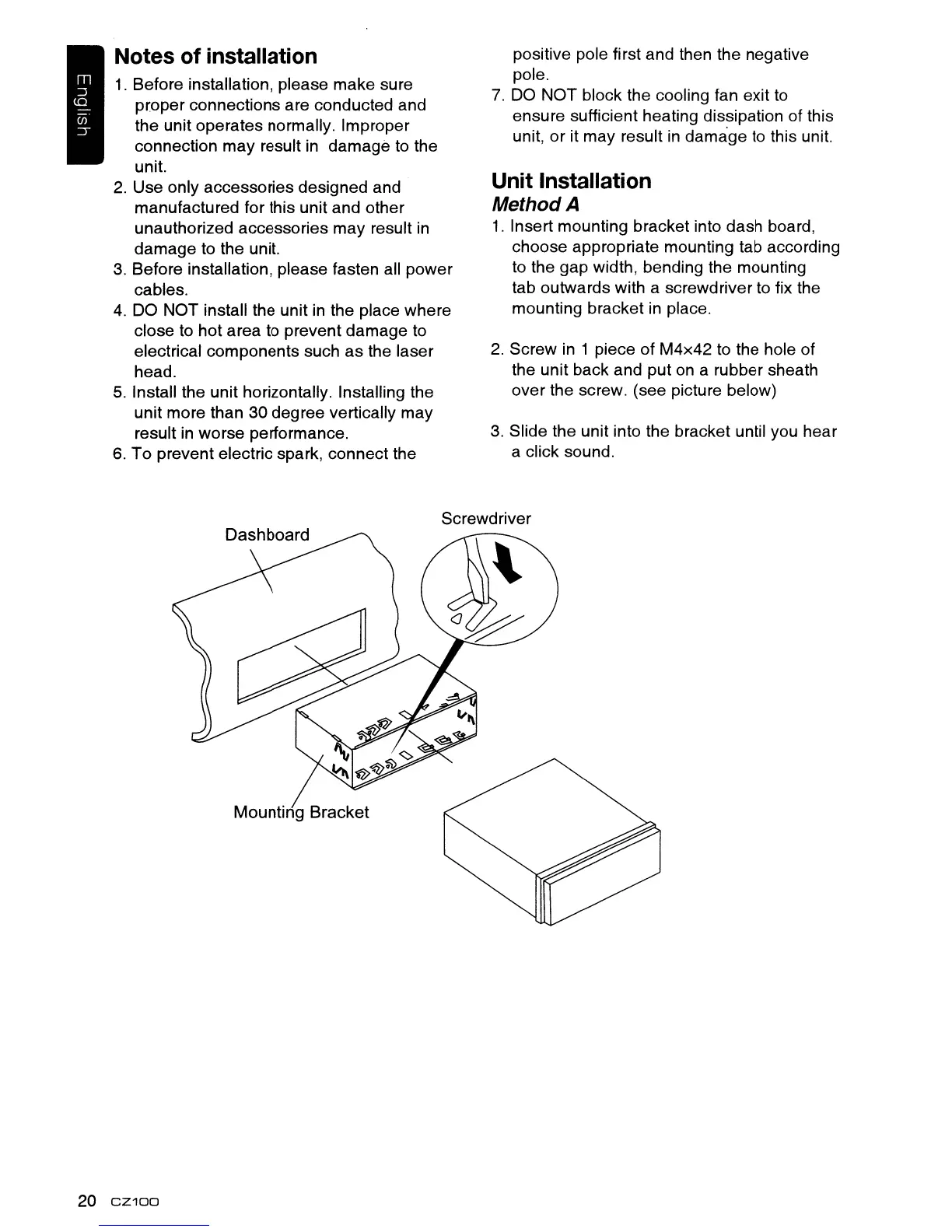

Notes of installation
1.
Before installation, please make sure
proper connections are conducted and
the unit operates normally. Improper
connection may result
in
damage to the
unit.
2.
Use only accessories designed and
manufactured for this unit and other
unauthorized accessories may result in
damage to the unit.
3.
Before installation, please fasten all power
cables.
4.
DO NOT install the unit in the place where
close to hot area to prevent damage to
electrical components such as the laser
head.
5.
Install the unit horizontally. Installing the
unit more than 30 degree vertically may
result
in
worse performance.
6.
To prevent electric spark, connect the
positive pole first and then the negative
pole.
7.
DO NOT block the cooling fan exit to
ensure sufficient heating dissipation of this
unit, or it may result
in
damage to this unit.
Unit Installation
Method A
1.
Insert mounting bracket into dash board,
choose appropriate mounting tab according
to
the gap width, bending the mounting
tab outwards with a screwdriver to fix the
mounting bracket
in
place.
2.
Screw
in
1 piece of M4x42 to the hole of
the unit back and put on a rubber sheath
over the screw. (see picture below)
3.
Slide the unit into the bracket until you hear
a click sound.
Screwdriver
Mounting Bracket
