Clarion CZ100 User Manual

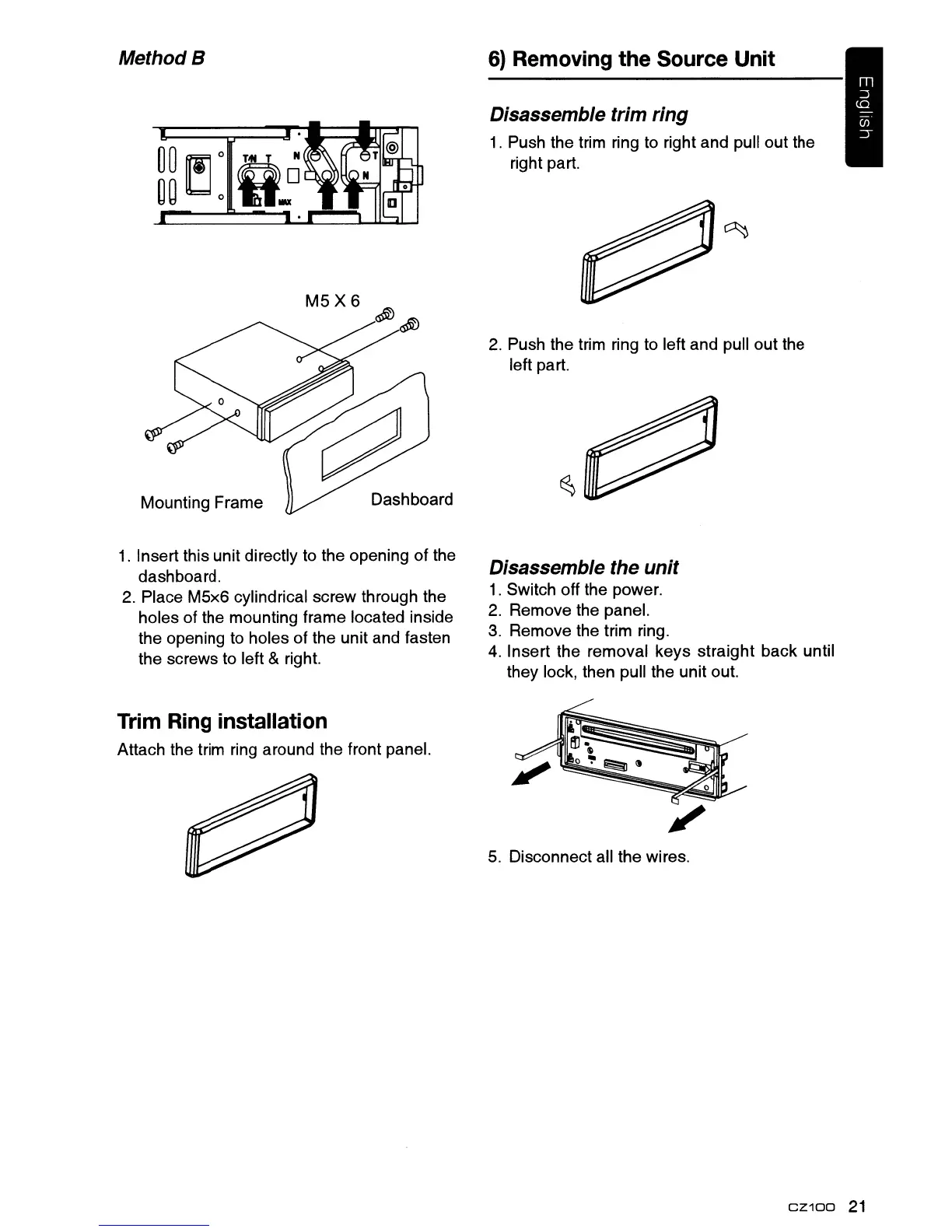

MethodS
M5X6
6) Removing the Source Unit
Disassemble trim ring
1. Push the trim ring to right and pull out the
right part.
Mounting Frame
Dashboard
2. Push the trim ring to left and pull out the
left part.
1. Insert this unit directly to the opening of the
dashboard.
2. Place M5x6 cylindrical screw through the
holes of the mounting frame located inside
the opening to holes of the unit and fasten
the screws to left
& right.
Trim Ring installation
Attach the trim ring around the front panel.
Disassemble the unit
1. Switch off the power.
2. Remove the panel.
3. Remove the trim ring.
4. Insert the removal keys straight back until
they lock, then pull the unit out.
5. Disconnect all the wires.
CZ100 21
