Clarion CZ505 Owner's Manual & Installation Manual

English
20
CZ505
Radio Antenna
(Red) Front Line out R
(Red) Rear Line out R
Front Line out L (White)
Rear Line out L (White)
SWI (Steering Wheel Interface)
Bluetooth Microphone
(Blue) Sub out 2 Sub out 1 (Blue)
16-Pin Connector Extension Lead
(attached to the source unit)
Brown wire (Phone mute lead)
Yellow wire (Memory back-up lead)
Red wire (Power lead)
Blue/White wire (Amplifi er turn-on lead)
Black wire (Ground lead)
Orange/White wire (Illumination lead)
Blue wire (Auto antenna lead)
Connect to remote turn-on lead of amplifi er
Connect to vehicle chassis ground
Connect it to the car power supply terminal
for illumination
Connect it to the car power supply terminal
for antenna
Connect to cellular phone mute lead.
Connect directly to battery
Accessory
12V
Front Right
Front Right
Gray
Gray
White
White
Purple
Purple
Green
Green
Gray/Black
Gray/Black
White/Black
White/Black
Purple/Black
Purple/Black
Green/Black
Green/Black
4-Speaker system
2-Speaker system
or
Rear Right
Rear Left
Not used.
Insulate each wire
Front Left
Front Left
FUSE 15A

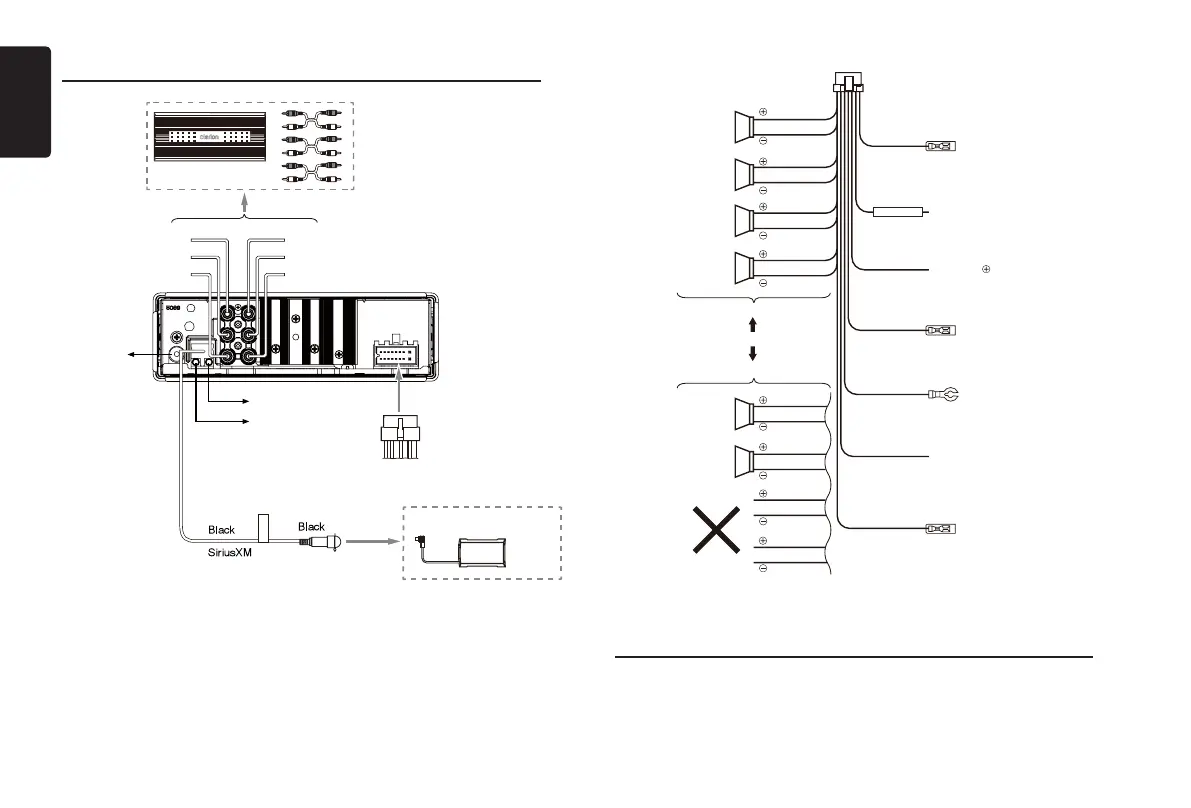

7) Wiring and Connections
• Connecting to the external amplifi er
External amplifi ers can be connected to the 4 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the
unit.
8) Connecting the accessories
SiriusXM-Connect™ Vehicle Tuner to
be connected: Sold separately
SiriusXM
Refer to the right
6 Channel Amplifi er
