CZ505

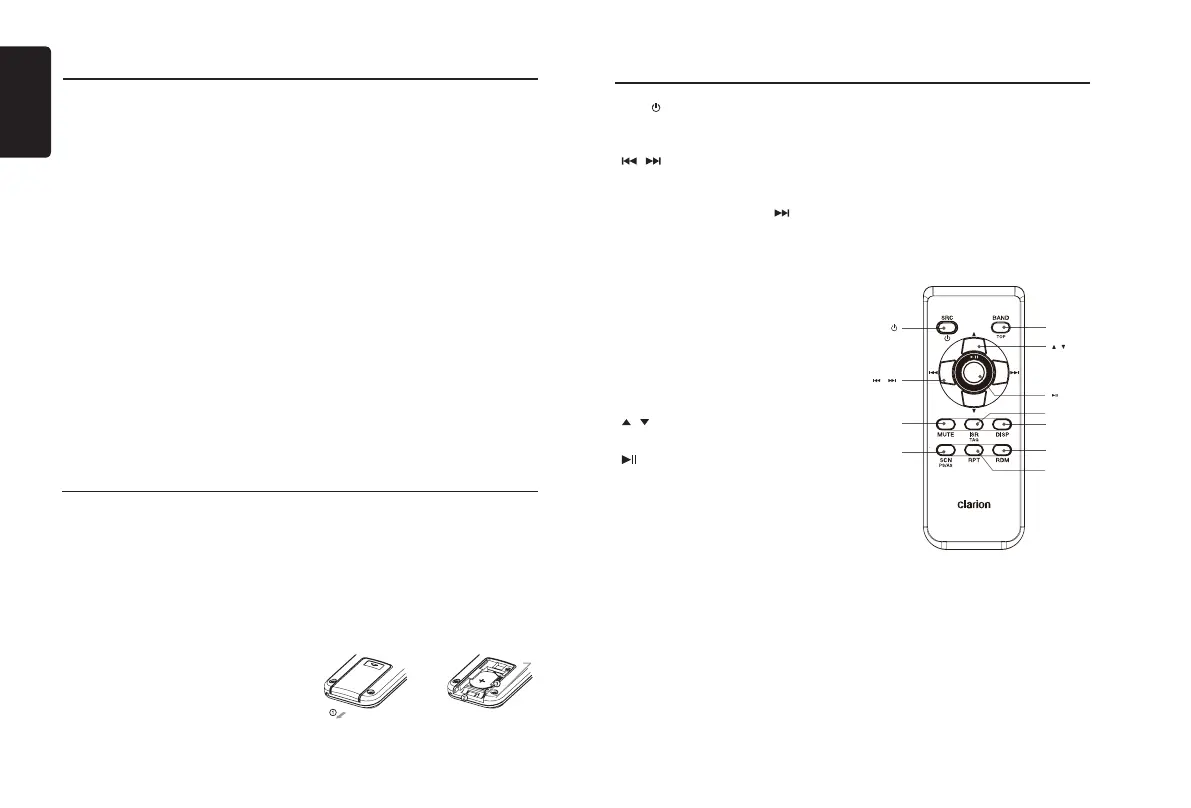

Names of Buttons
Notes for use of Remote Control
Inserting the Battery
1. Slide remote control unit’s rear cover in
the direction shown.
2. Insert battery (CR2025) into insertion
guides with printed side (+) up.
3. Press battery into compartment as shown.
4. Replace and slide cover until it clicks into
place.
1. Aim the remote control at the remote sensor
on the unit.
2. Remove the battery from the remote control
or insert a battery insulator if the battery has
not been used for a month or longer.
3. DO NOT store the remote control under
direct sunlight or in high temperature
environment, or it may not function properly.
4. Use “button shaped” lithium battery
“CR2025” (3V) only.
5. DO NOT subject battery to recharge,
disassemble, heat or dispose in fire or
water.
6. Insert the battery in proper direction
according to the (+) and (-) polarities.
7. Store the battery in a place where children
cannot reach to avoid the risk of accident.
Insertion guide
[1~6] Buttons
• [1] Button: Scan play / Preset station 1
/ Preset station memory 1
(long press) / Pandora mode -
Thumbs down
• [2] Button: Repeat play / Preset station
2 / Preset station memory 2
(long press) / Pandora mode -
Thumbs up
• [3] Button: Random play / Preset station 3
/ Preset station memory 3 (long
press) / Pandora mode - Create
new station by Artist / by Track
(long press)
• [4] Button:
Top play / Preset station 4 /
Preset station memory 4 (long
press)
• [5] Button: Previous folder / Preset station
5 / Preset station memory 5
(long press) / Pandora mode –
Previous station
10 tracks down (long press)
• [6] Button: Next folder / Preset station
6 / Preset station memory 6
(long press)
10 tracks up (long press)
/ Pandora mode – Next
Station
[DISP] Button
• Display change
• System setup (long press)
[ MIC ] Hole
• Internal microphone
Remote Control (RCX001)
[SRC / ] Button
• Toggle the audio source
• Power on / Power off (long press)
[
, ] Buttons
• Preset station up / down
• Previous / next track
• Search (long press)
• Pandora mode – Skip track (
)
[SCN / PS / AS] Button
• Scan play / Preset scan
• Auto store (long press)
• Pandora mode – Thumbs down
• SiriusXM mode– Channel scan (in current
category) / Preset scan (long press)
[BAND / TOP] Button
• CD/MP3/WMA/USB mode – Top play
• RADIO mode – Select tuner band
• Pandora mode – Next station
• SiriusXM mode – Select tuner band / Select
category (long press)
[
, ] Buttons
• Volume up / down
[
] Button
• Play / Pause
[ISR] Button
• SiriusXM/HD Radio mode - iTunes tagging
[DISP] Button
• Display change
[RDM] Button
• Random play
• Pandora mode – Bookmark track
[RPT] Button
• Repeat play
• Pandora mode – Thumbs up
[MUTE] Button
• Mute the volume
[ , ]
[ ]
[DISP]
[ISR]
[RDM
][RPT
]
[ , ]
[MUTE]
[SRC / ]
[BAND / TOP]
[SCN /
PS / AS]
