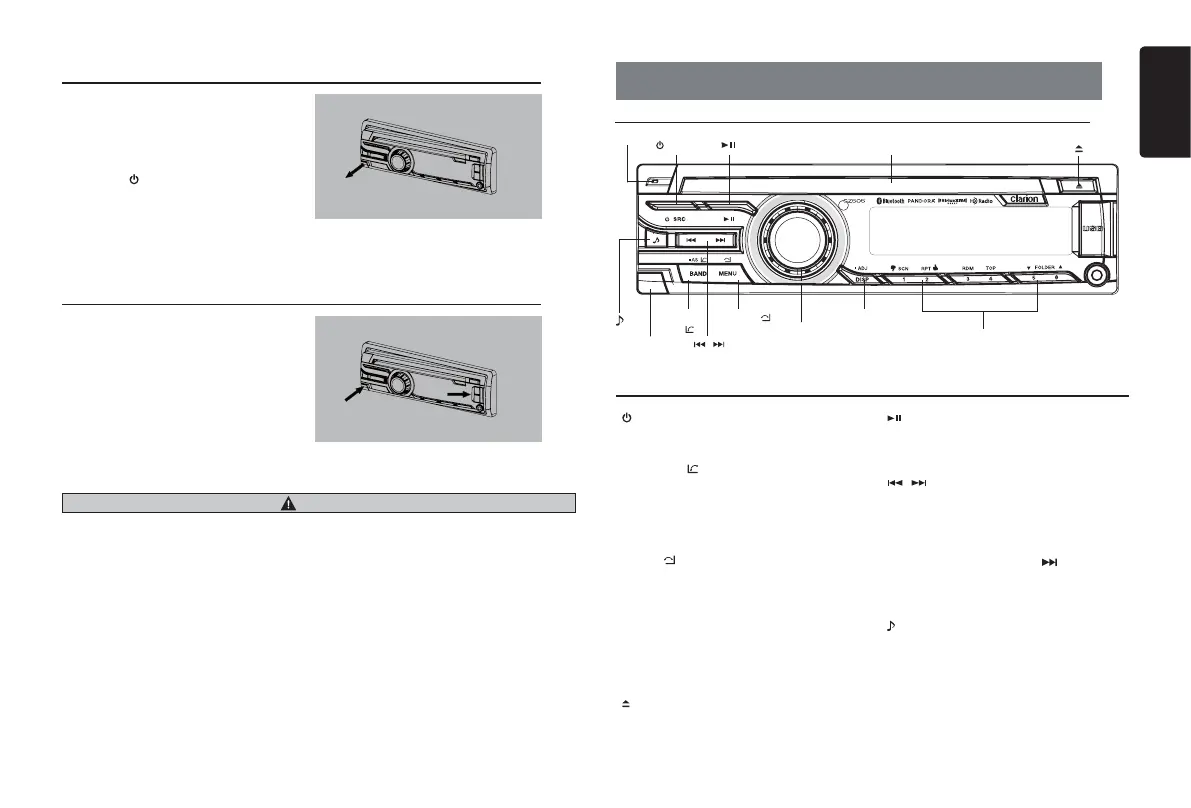

Remove the DCP
The control panel can be detached to prevent
theft. When detaching the control panel, keep
it in the safety place and prevent scratches.
We recommend taking the DCP
(DETACHABLE CONTROL PANEL) with you
when leaving the car.
1. Press the [
/
SRC] button (1 sec.) to turn
off the power.
2. Deeply push into [OPEN] button to unlock
the DCP.
3. Hold the side popped out, remove the
DCP.
Attach the DCP
1. Hold the DCP and ensure that the panel
faces towards you. Set the right side of the
DCP into the DCP bracket.
2. Press the left side of the DCP until it locks.
CAUTION
• The DCP can easily be damaged by shocks. After removing it, be careful not to drop it or subject it to
strong shocks.
• Once the [OPEN] button is pressed and DCP is unlocked, car vibrations can cause the DCP to fall.
• The connector for the main unit and DCP is extremely important. Be careful not to damage it by
pressing on it with fi ngernails, screwdrivers, etc.
Note:
If the DCP is dirty, wipe off the dirt with a soft, dry cloth only.
3. CONTROLS
Operational Panel
[
/
SRC ] Button
• Toggle the audio source
• Power on / Power off (long press)
[ BAND
/
AS /
] Button
• RADIO mode – Select tuner band / Auto
memory store (long press)
• BT mode – Dial / Answer / Transfer call / Redial
• SiriusXM mode – Select tuner band / Select
category (long press)
[ MENU
/
] Button
• MP3/WMA mode – Search function
• CD mode – No function
• RADIO mode – No function
• AUX mode – No function
• USB mode – Search function
• iPod mode – iPod menu
• Pandora mode – Station select
• BT mode – Terminate call
• SiriusXM mode – Direct select
[
] Button
• Press to eject disc
[
] Button
• Play / Pause
• SiriusXM mode– Channel scan (in current
category) / Preset scan (long press)
[
/ ] Buttons
• RADIO mode – Manual tuning / Auto search
(long press)
• MP3/WMA/CD/USB/iPod mode
– Previous / next track
– Fast Forward / Fast Backward (long press)
• Pandora mode – Skip track (
)
[OPEN] Button
• Unlock the front panel
[
] Button
• Sound effect setting
[VOLUME] Knob
• Adjust volume level / Confi rm (press)
• Pandora mode – Bookmark track
• SiriusXM/HD Radio mode – iTunes tagging
(long press)
Names of Buttons
[DISP] [MENU / ] [BAND /
AS / ]
[OPEN]
[VOLUME]
[ 1~6 ]
Disc Slot
[ ]
[ / SRC ] [ ]
[ / ]
[MIC]
