Clarion CZ505

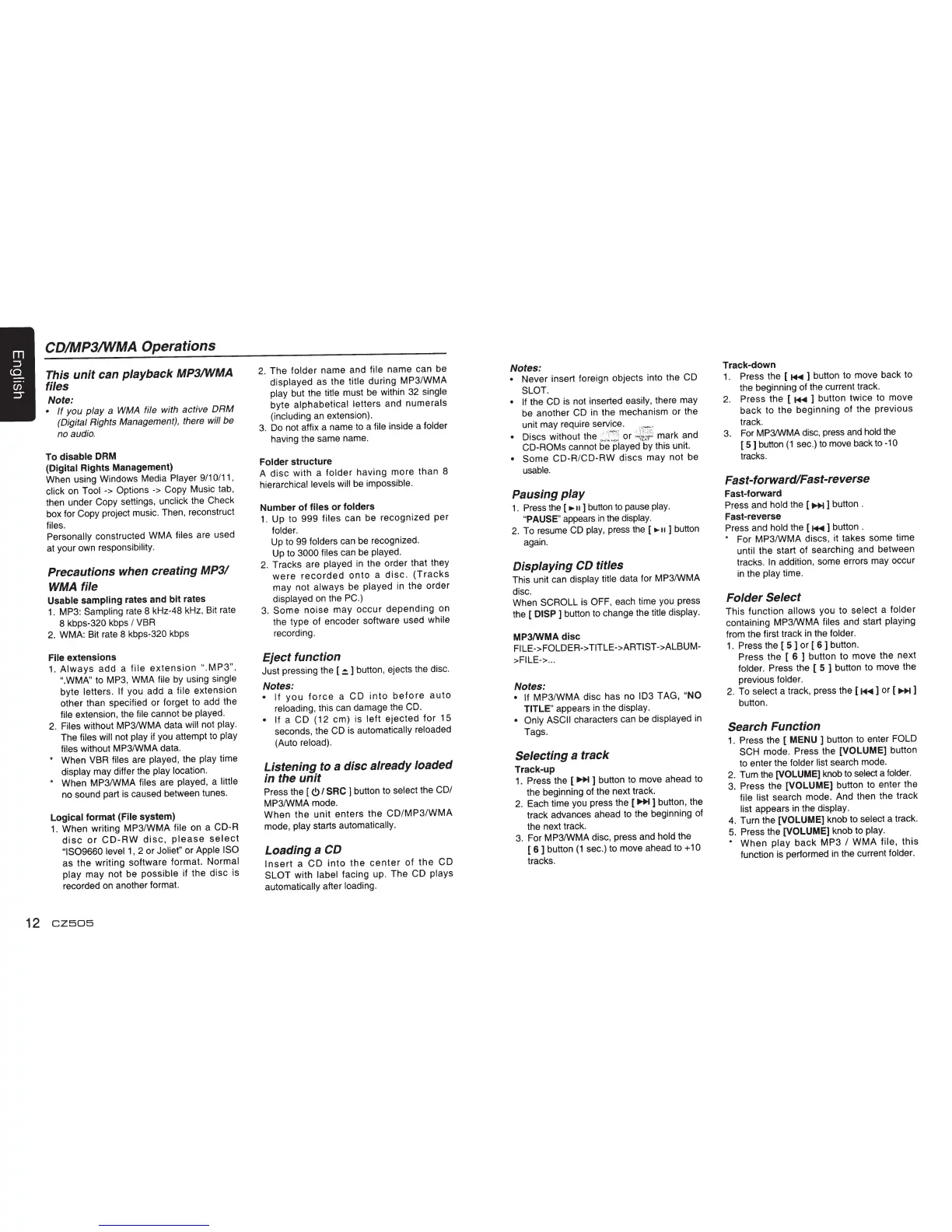

CD!MP3/WMA Operations
This unit can playback MP3/WMA
files
Note:
•
If
you
play
a
WMA
file with active
DRM
(Digital Rights Management), there
will
be
no audio.
To disable DRM
(Digital Rights Management)
When using Windows Media Player
9/1
0/11
,
click
on
Tool
->Options->
Copy Music tab,
then under Copy settings, unclick
the Check
box for Copy project music. Then, reconstruct
files.
Personally
constructed WMA
files
are used
at your own responsibility.
Precautions when creating
MP31
WMA
file
Usable sampling rates and bit rates
1.
MP3: Sampling
rate
8 kHz-48 kHz, Bit rate
8 kbps-320 kbps
I
VBR
2.
WMA: Bit rate 8 kbps-320 kbps
File extensions
1.
Always
add
a
file
extension
".MP3",
".WMA"
to
MP3,
WMA file
by
using single
byte letters.
If
you add a
file
extension
other than specified or forget to add the
file
extension, the
file
cannot
be
played.
2.
Files
without
MP3/WMA
data
will
not play.
The files
will
not play if
you
attempt to play
files
without
MP3/WMA
data.
*
When VBR files are played, the play time
display may differ the
play
location.
* When
MP3/WMA files are played, a little
no
sound part
is
caused between tunes.
Logical format (File system)
1.
When writing
MP3/WMA
file
on
a CD-R
disc
or
CD-RW
disc,
please
select
"IS09660 level1, 2 or Joliet" or Apple
ISO
as the writing software format. Normal
play may not be possible if the disc is
recorded
on
another format.
12
CZ505
2.
The folder name and
file
name can be
displayed as the
title
during
MP3/WMA
play but the title
must
be
within
32
single
byte alphabetical letters and numerals
(including
an
extension).
3.
Do
not affix a name
to
a file inside a folder
having the same name.
Folder structure
A
disc
with a
folder
having more than 8
hierarchical
levels will
be
impossible.
Number of files or folders
1.
Up to 999
files
can be recognized per
folder.
Up
to 99 folders can
be
recognized.
Up
to
3000 files can
be
played.
2.
Tracks are played
in
the order that they
were
recorded
onto
a
disc.
(Tracks
may not always
be
played
in
the order
displayed
on
the
PC.)
3.
Some
noise may occur
depending
on
the type of encoder software used
while
recording.
Eject function
Just pressing the (
~
) button, ejects the disc.
Notes:
•
If
you
force
a CD
into
before
auto
reloading, this can damage the
CD.
• If
a CD ( 12 em) is
left
ejected
for 15
seconds, the
CD
is
automatically reloaded
(Auto reload).
Listening to a disc already loaded
in the unit
Press
the [
~I
SRC ]
button to select the CD/
MP3/WMA
mode.
When
the
unit
enters the
CD/MP3/WMA
mode, play starts
automatically.
Loading a CD
Insert
a CD
into
the
center
of
the
CD
SLOT
with
label
facing up. The CD plays
automatically
after loading.
Notes:
• Never insert foreign objects into the CD
SLOT.
•
If
the
CD
is
not inserted easily, there may
be another
CD
in
the mechanism or the
unit may require service.
.
,
~
.-,-!
• Discs without the
,,·
:
;:-:~
;
or
~ill
:ii~
mark and
CO-ROMs cannot
6
'"
e'Piayed
T"
Gy
this unit.
• Some
CD-R/CD-RW discs may not be
usable.
Pausing play
1.
Press
the (
...
II
]
button
to
pause
play.
"PAUSE"
appears
in
the
display.
2.
To resume
CD
play,
press
the
(
...
II]
button
again.
Displaying CD titles
This unit can display
title
data for
MP3/WMA
disc.
When
SCROLL
is
OFF,
each time
you
press
the (
DISP]
button
to
change the
title display.
MP3/WMA disc
FILE->FOLDER-> TITLE->ARTIST->ALBUM-
>FILE->
...
Notes:
• If MP3/WMA disc has no
103
TAG,
"NO
TITLE"
appears
in
the display.
• Only ASCII
characters can
be
displayed
in
Tags.
Selecting a track
Track-up
1.
Press the [
..,..
] button to move ahead to
the beginning of the next track.
2.
Each time
you
press the
[..,..]button,
the
track advances ahead to the beginning of
the next track.
3.
For
MP3/WMA
disc, press and hold the
(
6]
button
(1
sec.) to move ahead to
+
10
tracks.
Track-down
1.
Press
the (
~]
button to move back to
the beginning of the current track.
2.
Press the [
~
] button twice to move
back to the beginning of the previous
track.
3.
For
MP3/WMA
disc,
press
and
hold
the
[ 5 ]
button
(1
sec.)
to
move
back
to
-1
0
tracks.
Fast-forward/Fast-reverse
Fast-forward
Press
and
hold
the [
..,..
] button .
Fast-reverse
Press
and hold the [
~]
button .
*
For
MP3/WMA
discs, it takes some time
until the start of searching and between
tracks.
In
addition, some errors may occur
in
the
play
time.
Folder Select
This function
allows
you to select a folder
containing MP3/WMA files
and start playing
from the first track
in
the folder.
1.
Press
the [
5 ]
or [
6 ]
button.
Press the (
6 ]
button to move the next
folder.
Press
the [
5 )
button to move the
previous folder.
2.
To select a track, press the
(~]or
[..,..]
button.
Search Function
1.
Press the (
MENU )
button
to
enter
FOLD
SCH mode.
Press
the
[VOLUME]
button
to enter the folder list search mode.
2.
Turn
the
[VOLUME]
knob
to
select a
folder.
3.
Press
the
(VOLUME]
button to enter the
file list search mode. And then the track
list appears in the display.
4.
Turn the
[VOLUME]
knob to select a track.
5.
Press
the
[VOLUME]
knob to
play.
* When
play
back
MP3
I
WMA file,
this
function is performed
in
the current folder.
