DB345MP/DB346MPDB345MP/DB346MP
DB345MP/DB346MPDB345MP/DB346MP
DB345MP/DB346MP
- 18 -
5
NO DESCRIPTION COLOR
1 GND BLACK
2
3 ILL ORANGE/WHITE
4 REMOTE BLUE/WHITE
6 ACC RED
7
8 RL (-) GREEN/BLACK
9 BACK UP YELLOW
10 RR (-) PURPLE/BLACK
11 RR (+) PURPLE
12 FR (-) GREY/BLACK
13 FR (+) GREY
14 FL (+) WHI TE
15 FL (-) WHITE/BLACK
16 RL (+) GREEN
EXTENSION CONNECTOR

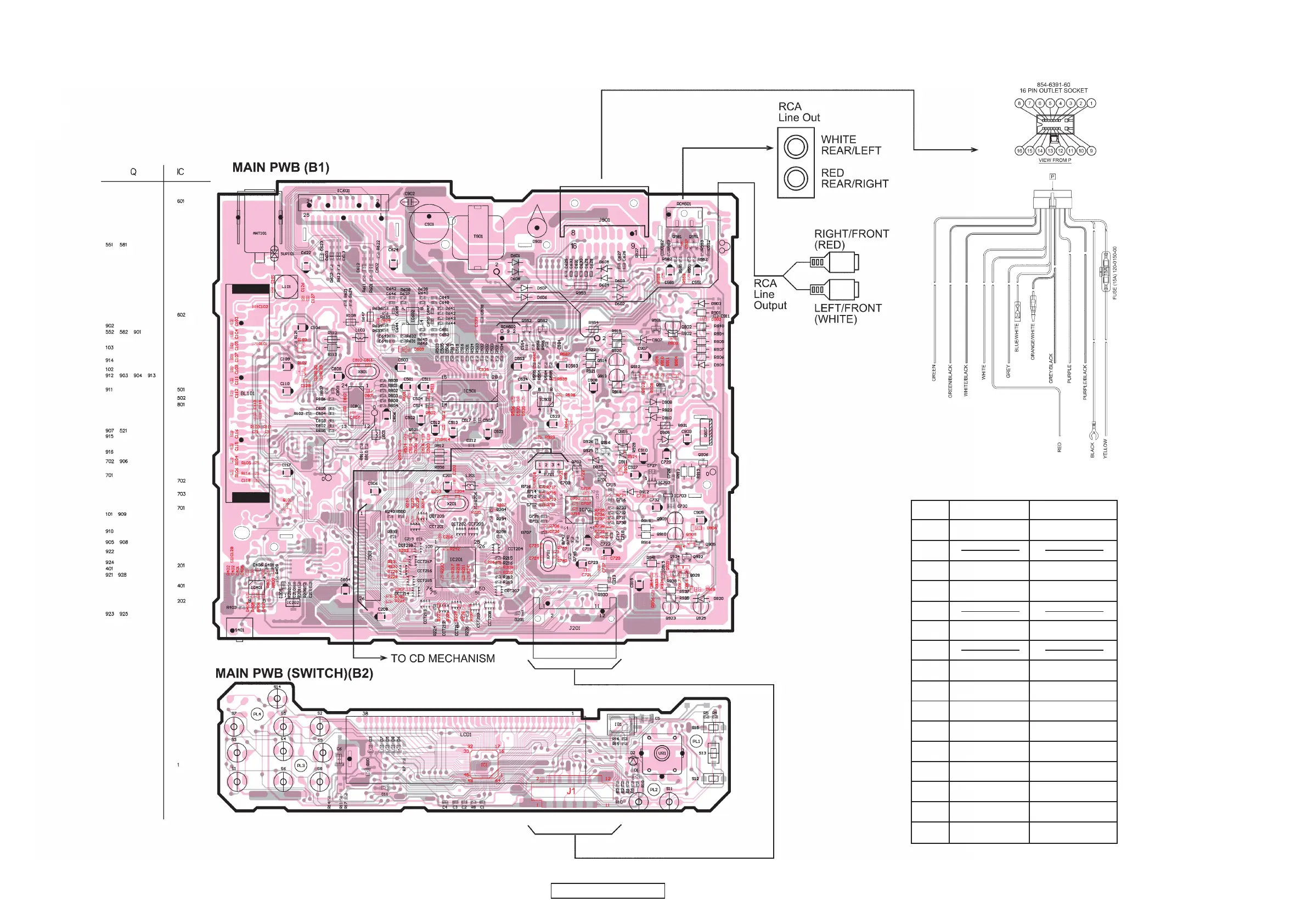

PRINTED WIRING BOARD
Main PWB (B1), Main PWB (Switch) (B2) Section
