Clarion DXZ785USB Service Manual

30
34
31
32
33
35
36
37
38
39
39
39
40
41
42
43
43
44
45
39
46
50
50
51
39
20
41
27
27
Inner escutcheon
It attaches in
the open position.
27
-12-
DXZ785USB/DXZ786USB

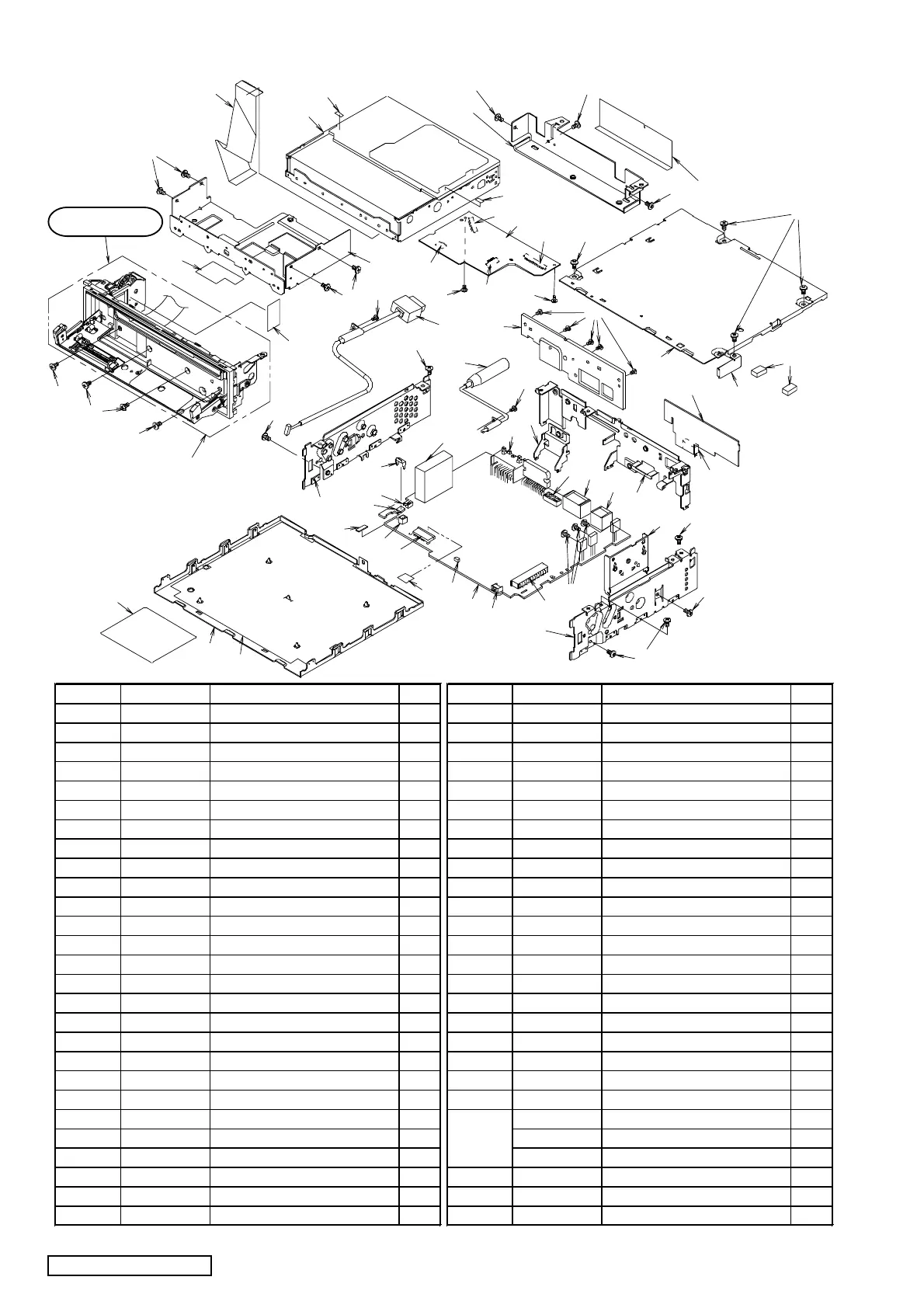

Main section
1
2
3
4
5
6
7
8
9
10
11
29
29
13
14
15
16
17
18
19
22
23
24
25
21
27
26
27
28
29
47
48
49
52
12
14
27
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 076-0312-02 PLUG(2P) 1 28 313-1923-00 HEAT SINK 1
2 013-7206-50 DETECTOR SWITCH 1 29 714-3006-8B MACHINE SCREW(M3x6) 7
3 013-7106-00 DETECTOR SWITCH 1 30 074-1138-65 OUTLET SOCKET(15P) 1
4 331-3378-00 SW-HOLDER 1 31 076-0478-55 PLUG(5P) 1
5 880-2091E TUNER 1 32 074-1228-79 OUTLET SOCKET(29P) 1
6 074-1138-79 OUTLET SOCKET(29P) 1 33 074-1138-60 OUTLET SOCKET(10P) 1
7 074-1214-50 OUTLET SOCKET(16P) 1 34 ------------- YAMATO PWB 1
8 331-3954-00 IC-HOLDER 1 35 3 31-2744-00 STOPPER 1
9 076-0368-16 PLUG(16P) 1 36 347-7581-10 CUSHION 2
10 076-6003-18 PLUG(18P) 1 37 303-0472-07 UPPER-CVR 1
11 074-1194-00 OUTLET SOCKET(CeNET) 1 38 347-7579-10 INSULATOR 1
12
347-6215-00 SPACER-FILM 1
39 714-2603-8B MACHINE SCREW(M2.6x3) 7
13 313-1924-00 HEAT SINK 1 40 331-3324-00 CD-SUB-BRKT(R) 1
14 714-3005-8B MACHINE SCREW(M3x5) 4 41 347-8269-00 SPACER 2
15 305-0348-00 SIDE-CVR(R) 1 42 929-5016-80 CD-MECH-MODULE 1
16 013-6100-00 TACT SWITCH 1 43 716-1670-01 SCREW(M2x4) 2
17 ------------- MAIN PWB 1 44 816-4026-50 FLAT WIRE 1
18 001-7062-90 DIODE 1 45 3 31-4367-00 MECH BRKT(F) 1
19 305-0347-00 SIDE-CVR(L) 1 46 347-6536-00 PROTECT SHEET 1
20
347-8250-00 DOUBLE FACE 1
47 347-7578-10 INSULATOR 1
21 092-2215-50 ANT-RECEPT 1 48 304-0483-00 LOWER-CVR 1
22 074-1198-68 OUTLET SOCKET(18P) 1 49 276-0379-00 SETPLATE(PE-3041B-A) 1
23 307-0723-01 REAR-CVR 1 276-0413-00 SETPLATE(PE-3041K-A) 1
24 074-0898-16 OUTLET SOCKET(16P) 1 276-0414-00 SETPLATE(PE-3041K-B) 1
25 ------------- D/D PWB 1 50
716-0717-60 STEEL SCREW(M2.3x0.4P) 2
26 855-0613-53 USB CABLE 1 51
780-2005-50 SCREW(M2x5) 2
27 731-3006-8B TAPTIGHT(M3x5) 9 52
345-8701-00 CUSHION 1
