Clarion DXZ785USB Service Manual

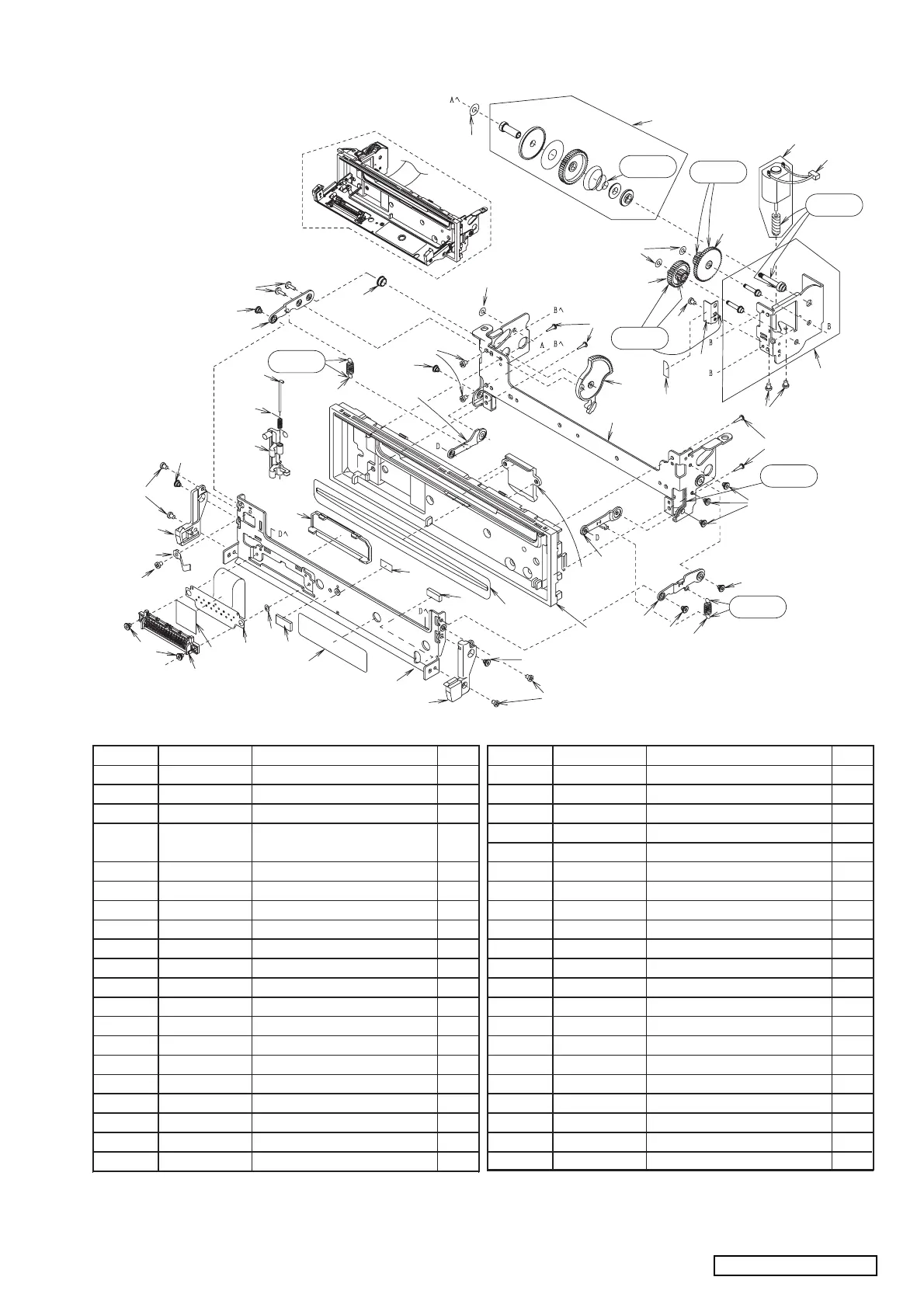

Inner escutcheon section
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 370-5935-07 INNER ESCUTCHEON 1
2 074-1278-01 OUTLET SOCKET(16P) 1
3 347-6528-00 INSULATOR 1
4 039-2409-05 INNER ES FPC 1
(WITHOUT COMPONENT)
5 331-3115-01 DCP HOLDER 1
6 335-6903-00 ARM-COVER(L) 1
7 335-6904-00 ARM-COVER(R) 1
8 716-1468-70 SCREW(M2x2.5) 10
9 335-7484-00 HOOK 1
10 750-3431-02 SPRING(HOOK) 1
11 341-1802-00 SHAFT 1
12 716-1715-52 DECO-SCREW(M2) 11
13 335-6499-00 CN-CVR 1
14 331-3117-01 LEVER-UP(R) 1
15 331-3118-01 LEVER-LO(R) 1
16 335-6505-00 ILLUMI PLATE 1
17 331-3119-00 LEVER-LO(L) 1
18 331-3120-00 LEVER-UP(L) 1
19 716-1758-50 PAD SCREW(M2x5) 2
20 341-1740-00 ROLLER(ARM) 1
23 291-0102-02 STICKER 1
24 345-8627-01 CUSHION 1
25 346-0150-02 LEATHER SHEET 1
26 716-0872-50 PAD SCREW(M1.7x5) 4
27 750-3304-20 SPRING(GEAR) 1
28 854-4380-01 EXTENSION LEAD 1
29 309-0772-02 FRONT PLATE 1
30 613-0719-00 ARM GEAR 1
31 750-3432-00 SPRING(MOTO) 1
32 613-0733-00 HUS-GEAR 1
33 746-0768-70 SPECIAL WASHER 4
34 613-0717-00 INPUT GEAR 1
35 634-0024-00 MOTOR-ASSY 1
36 947-0513-04 T-LIM-GEAR-ASSY 1
37 750-3303-20 SPRING(ARM) 1
38 347-8262-00 FILM(FRONT) 1
39 345-5937-00 CUSHION 1
40 347-7347-00 SPACER 1
41 946-0079-01 GEAR-BOX ASSY 1
22 750-3457-00 SPRING 1
Note): Grease uses FLOIL 31SB
35
12
12
12
12
16
15
25
21
24
14
27
34
33
30
19
8
18
32
26
8
23
29
38
28
31
36
41
1
5
Finished figure
Grease
application
Grease
application
Grease
application
Grease
application
Grease
application
Grease
application
7
39
40
2
3
4
12
8
22
6
8
12
9
10
11
37
12
20
12
17
8
26
8
33
33
Grease
application
13
21 347-6527-01 CUSHION 1
-11-
DXZ785USB/DXZ786USB
