10 DXZ838RMP
English
[
FUNC
]
[ ],[ ]
[
TA
]
[
MUTE
]
[
PS/AS
]
[
AF
]
[ ]
[ ],[ ]
[
BAND
]
[
DISP
]
[
PTY
]

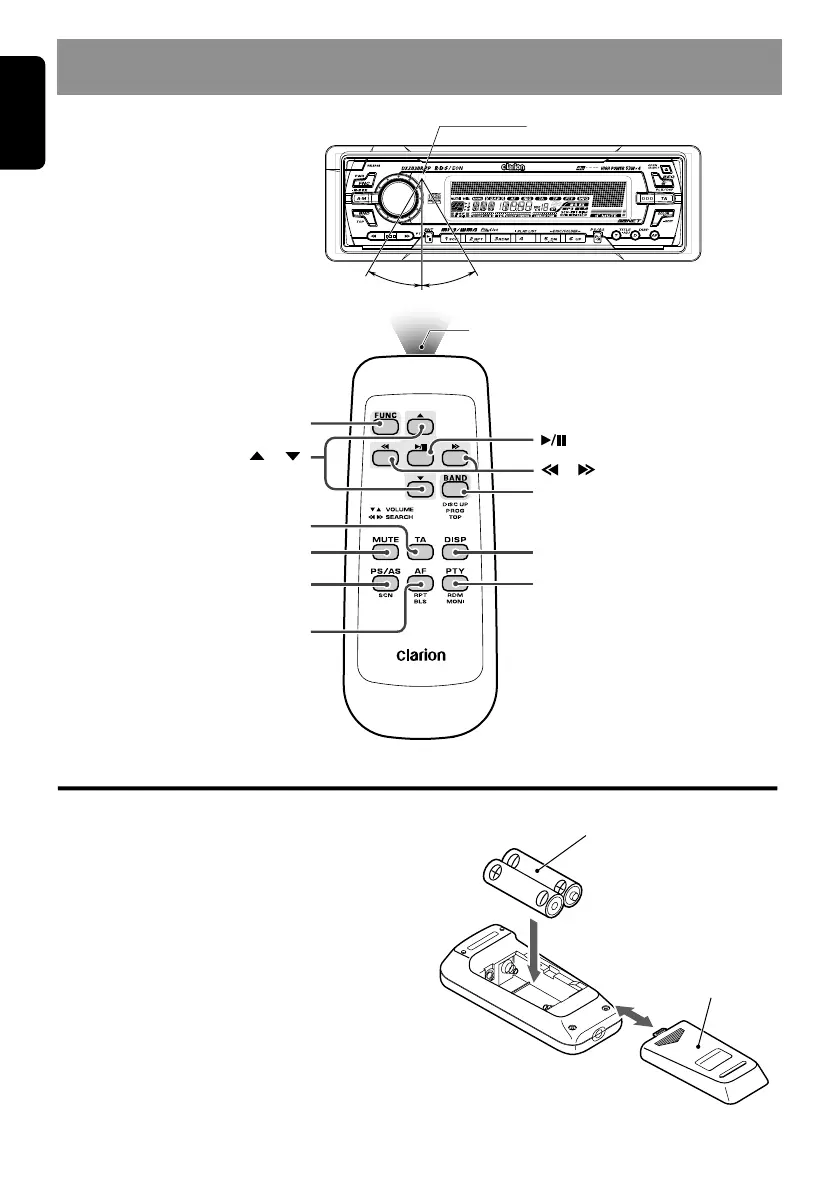

Rear side
AA (SUM-3, IECR-6/1.5V)
Batteries
Rear cover
Remote control unit
Inserting the Batteries
1. Turn the remote control unit over, then slide the
rear cover in the direction of the arrow.
2. Insert the AA (SUM-3, IECR-6/1.5V) batteries
that came with the remote control unit facing in
the directions shown in the figure, then close the
rear cover.
Notes:
Using batteries improperly can cause them to
explode. Take note of the following points:
• When replacing batteries, replace both batteries
with new ones.
• Do not short-circuit, disassemble or heat batteries.
• Do not dispose of batteries into fire or flames.
• Dispose of spent batteries properly.
Receiver for remote control unit
Operating range: 30˚ in all directions
Signal transmitter
5. REMOTE CONTROL

Clarion DXZ838RMP Specifications

Radio Section

FM receiving frequencies	87.5 to 108 MHz (0.05 MHz steps)
MW receiving frequencies	531 to 1602 kHz (9 kHz steps)
LW receiving frequencies	153 to 279 kHz (3 kHz steps)

CD Player Section

frequency response	5 Hz to 20 kHz (± 1 dB)
signal to noise ratio	100 dB (1 kHz) IHF-A
dynamic range	95 dB (1 kHz)

General Specifications

output power	4 ✕ 31 W (DIN 45324, +B=14.4V)
power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
power consumption	Less than 15 A

Weight and Dimensions

main unit weight	1.6 kg
remote control unit weight	30 g (including battery)
main unit dimensions	178 (W) ✕ 50 (H) ✕ 155 (D) mm
