Clarion DXZ938R User Manual

280-7876-00
DXZ938R 75 DXZ938R
280-7876-00
6 DXZ938R
280-7876-00
English English Français Deutsch Italiano
Nederlands
Español Svenska
Português
English

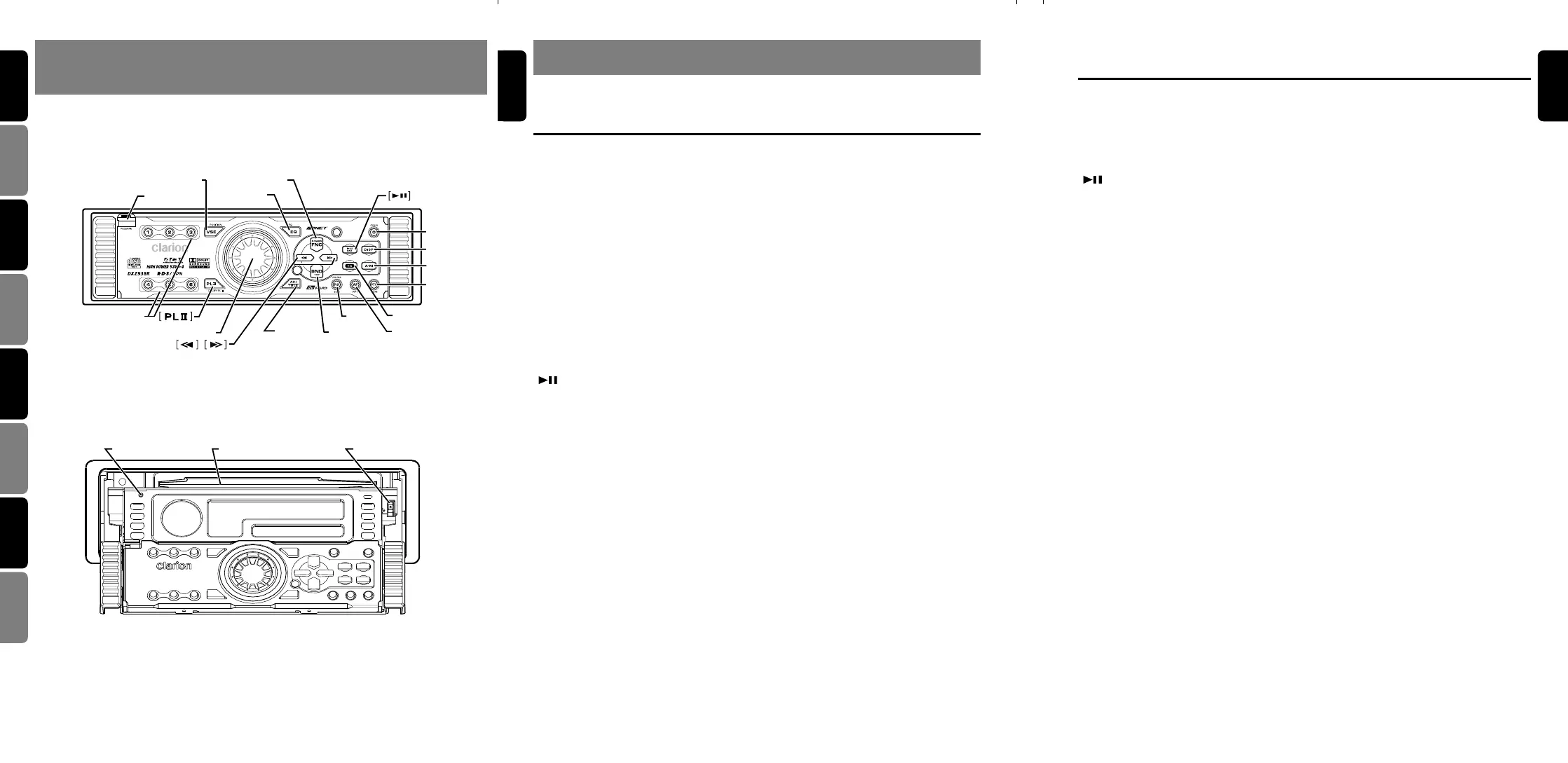

Main unit / Appareil principal / Hauptgerät / Apparecchio principale
Hoofdtoestel / Unidad principal / Huvudenhet / Unidade principal
With the DUAL ACTION opened / Lorsque la Double action est ouverte
SCHRÄGKONSOLE geöffnet / Con la DOPPIA AZIONE aperta
Met het DUAL ACTION bedieningspaneel geopend / Con el panel frontal de acción doble abierto
Med den nedfällbara panelen öppen / Com o painel de DUPLA ACÇÃO aberto
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Hinweis: Bitte diese Seite ausfalten und beim Lesen der einzelnen Kapitel die Frontdiagramme beachten.
Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo.
Opmerking: Vouw deze pagina uit en zie tevens de afbeeldingen van het voorpaneel tijdens het doorlezen van de volgende hoofdstukken.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen.
Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo.
[
RELEASE
]
[
VSE
]
[
FNC
]
[
EQ
]
[
O
]
[
A-M
]
[
DISP
]
[
PTY
]
[
TA
]
[
ROTALY
]
[
TITLE
]
[
BND
]
[
P/A
]
[
AF
]
[
DIRECT
]
[
CD EJECT
] BUTTON
[
RESET
] BUTTON
[
CD SLOT
]
2.
CONTROLS / LES COMMANDES / REGLER / CONTROLLI
REGELAARS / CONTROLES / KONTROLLER / CONTROLOS
3.NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold).
[RELEASE] button
• Deeply press the button to remove the DCP.
[VSE] button
• Press to enter VSE mode or the Position mode.
• When the button is pressed and hold for 1 sec-
ond or longer, the mode is turned on or off.
[EQ] button
• Press to enter the EQ mode.
•
When the button is pressed and hold for 1 sec-
ond or longer, the mode is turned on or off.
[FNC] button
• Press the button to turn on the power.
Press and hold the button for 1second or
longer to turn off the power.
• Switches the operation mode among the ra-
dio mode, etc.
[ ] button
• Plays or pauses a CD while in the CD mode.
• Used as “Enter button” while the unit is in
the ADJ mode.
[O] button
• Use the button to open the dual action.
[DISP] button
• Switches the display indication(Main
display,clock display).
[A-M] button
• Use the button to switch to the audio mode (bal-
ance/fader/sub.w/center SP/NF. adjustment)
[PTY] button
• Use the button to set the PTY (Programme
Type) standby mode or PTY items.
• Performs random play while in the CD mode.
[TA] button
• Use the button to set the TA (Traffic An-
nouncement) standby mode.
[AF] button
• Press the button to turn on or off the AF (Al-
ternative Frequency) function.
• Plays repeatedly while in the CD mode.
• When the button is pressed and held,
Reginal function can select ON or OFF.
Names of the Buttons and their Functions
●When the CD/MD/DVD changer
is connected
∗ For details, see the section “CD/MD/DVD
changer operations”. For the DVD
changer, refer to the Owner’s Manual pro-
vided with the DVD changer.
[ ] button
• Plays or pauses a CD, MD or DVD.
[DISP] button
• Switches CT or select disc titles mode.
• When the button is pressed and held,
switches the disc titles or track titles while in
the MD changer mode.
• When the button is pressed and held,
switches the user titles or track titles ,etc.while
in the CD changer mode.
[PTY] button
• Performs random play. Also performs disc ran-
dom play when the button is pressed and held
[AF] button
• Performs repeat play. When this button is
pressed and held, disc repeat play is performed.
[P/A] button
• Performs scan play for 10 seconds for each
track. Disc scan play is performed when the
button is pressed and held.
[BND] button
• Plays a first track.
• Used as “disc up button” while the unit is in
the DVD changer mode.
[TITLE] button
• Use the button to input a title in the CD
changer mode.
•
Use the button to scroll the title during CD-text play
or MD changer play in the CD changer mode.
[a], [d] button
• Selects a track when listening to a disc.
[DIRECT] button
• Designates the disc to be played.
●When the TV/DAB is connected
∗ For details, see the section “TV opera-
tions” or “DAB operations”.
[PTY] button
• Use the button to set the PTY (Programme Type)
standby mode or PTY items in the DAB mode.
• Switches the TV picture mode or VTR (external)
picture mode.
[TA] button
• Use the button to set the TA (Traffic An-
nouncement) standby mode in the DAB mode.
(This function is only DAB tuner.)
[AF] button
• Press the button to turn on or off the AF (Alter-
native Frequency) function in the DAB mode.
(This function is only DAB tuner.)
[P/A] button
• Performs preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed. (This function is only TV
tuner.)
[BND] button
• Switches the band.
• When the button is pressed and held,
switches seek tuning or manual mode.
[a], [d] button
• Selects a station.
[DIRECT] button
• Stores a station into memory or recall it directly.
●When the DTS/DOLBY DIGITAL
is connected
∗ For details, see the owner’s manual of the
DTS/DOLBY DIGITAL.
[VSE] button
• Press the button to turn on the DSF.
• After DSF is selected, press and hold the
[VSE] button for 1 second or longer to turn to
off DSF effect.
After DSF is selected, press the [BND] button
and then the [DIRECT] button to select the
DSF menu.
[PLII] button
• Press the button to turn on the PLII , and each
time to press PLII mode changes following or-
der:
Music mode ➜ Matrix mode ➜ Movie mode
➜ Virtual mode ➜ mode off
Major button operations when external equipment is
connected to this unit
[P/A] button
• Performs preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
• Performs scan play for 10 seconds for each
track while in the CD mode.
[BND] button
• Switches the band, or seek tuning or manual
tuning while in the radio mode.
• Plays a first track while in the CD mode.
[TITLE] button
• Use the button to input a title in the CD mode.
• Press and hold the button for 1 second or
longer to enter the adjust mode.
[a], [d] button
• Selects a station while in the radio mode or
selects a track when listening to a CD. These
buttons are used to make various settings.
[ROTARY] knob
• Adjust the volume by turning the knob clock-
wise or counterclockwise.
• Use the knob to perform various settings.
[PLII ] button
• Press to select Dolby Pro Logic II mode.
[DIRECT] button
• Stores a station into memory or recall it di-
rectly while in the radio mode.
[CD SLOT]
• CD insertion slot.
[CD EJECT] button
• Press to eject a CD loaded in the unit.
• Press to open the CD slot and insert a CD.
[RESET] button
• Press to reset the system.
280-7876-00_3~8 10/2/02, 10:33 AM2

Clarion DXZ938R Specifications

Radio Specifications

FM receiving frequency range	87.5 to 108 MHz (0.05 MHz steps)
MW receiving frequency range	531 to 1602 kHz (9 kHz steps)
LW receiving frequency range	153 to 279 kHz (3 kHz steps)

CD Player Specifications

frequency response	5 Hz to 20 kHz (± 1 dB)
signal to noise ratio	100 dB (1 kHz) IHF-A
dynamic range	96 dB (1 kHz)

General Specifications

output power	4 x 31 W (DIN 45324, +B=14.4V)
power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
power consumption	Less than 15 A

Weight and Dimensions

main unit weight	1.7 kg
remote control unit weight	30 g (including battery)
main unit dimensions	178 (W) x 50 (H) x 155 (D) mm
