10 DXZ938R
English
5.REMOTE CONTROL
[FUNC]
[BAND]
[ ] , [ ]
[ ] , [ ]
Mode
Button
Radio
(DAB) (RDS)
CD
CD/MD changer
DVD changer
TV
Switches among radio, DAB, CD, DVD deck, CD/MD changer, DVD changer, TV, and AUX.
Switches reception
band.
Plays the first track.
Top play.
Moves the next disc
in increasing order.
Switches reception
band.
Increases and decreases volume (in all modes).
Moves preset
channels up and
down.
Moves tracks up and down.
When pressed and held for 1 second:
Fast-forward/fast-backward.
Moves preset
channels up and
down.
∗ Some of the corresponding buttons on the main unit and remote control unit have different functions.
Names of Parts

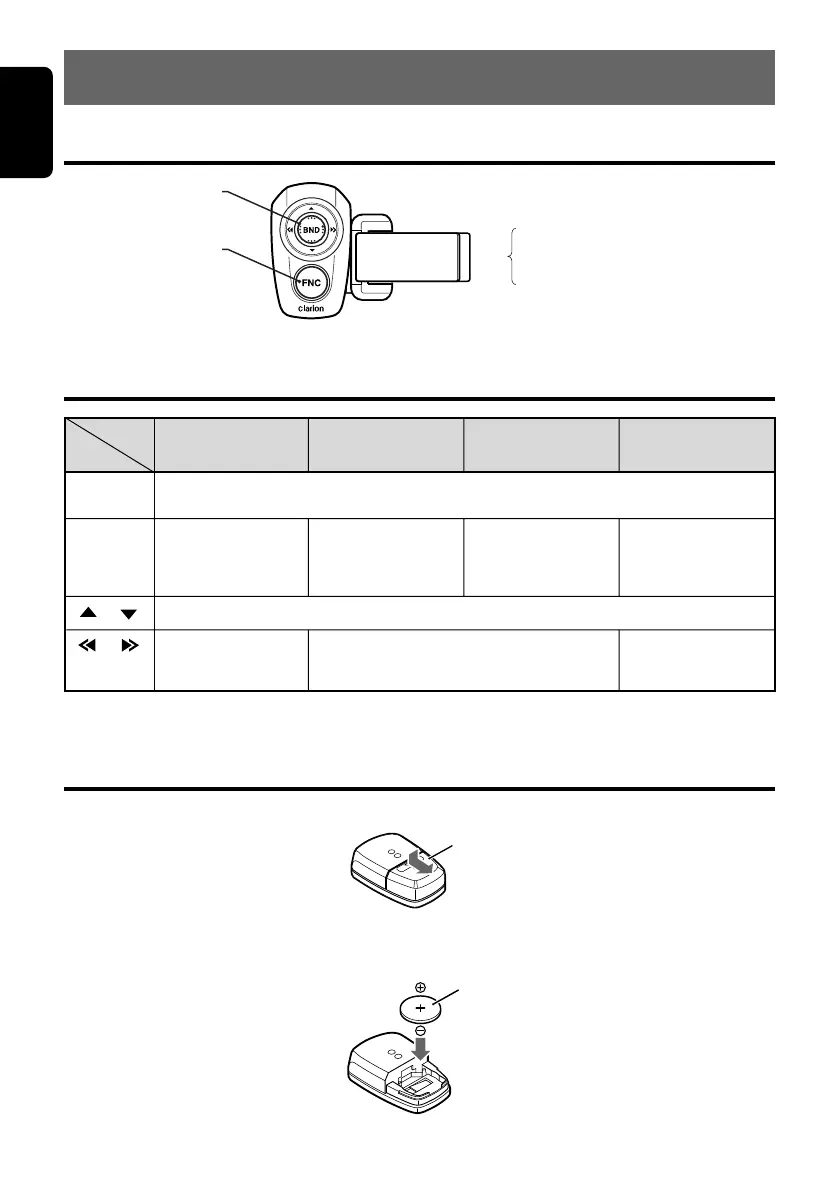

Loading Batteries
1. Open the battery cover.
2. Insert the supplied lithium battery (CR2032) with the plus + symbol facing up and close the battery
cover.
Joystick
FNC (function)
BND (Band) button
Top button
Disc Up button
Program button
wz
ad
Volume control
Search
BND
Battery cover
Lithium battery
Functions of Remote Control Unit Buttons

Clarion DXZ938R Specifications

Radio Specifications

FM receiving frequency range	87.5 to 108 MHz (0.05 MHz steps)
MW receiving frequency range	531 to 1602 kHz (9 kHz steps)
LW receiving frequency range	153 to 279 kHz (3 kHz steps)

CD Player Specifications

frequency response	5 Hz to 20 kHz (± 1 dB)
signal to noise ratio	100 dB (1 kHz) IHF-A
dynamic range	96 dB (1 kHz)

General Specifications

output power	4 x 31 W (DIN 45324, +B=14.4V)
power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
power consumption	Less than 15 A

Weight and Dimensions

main unit weight	1.7 kg
remote control unit weight	30 g (including battery)
main unit dimensions	178 (W) x 50 (H) x 155 (D) mm
