EF-1080I-C

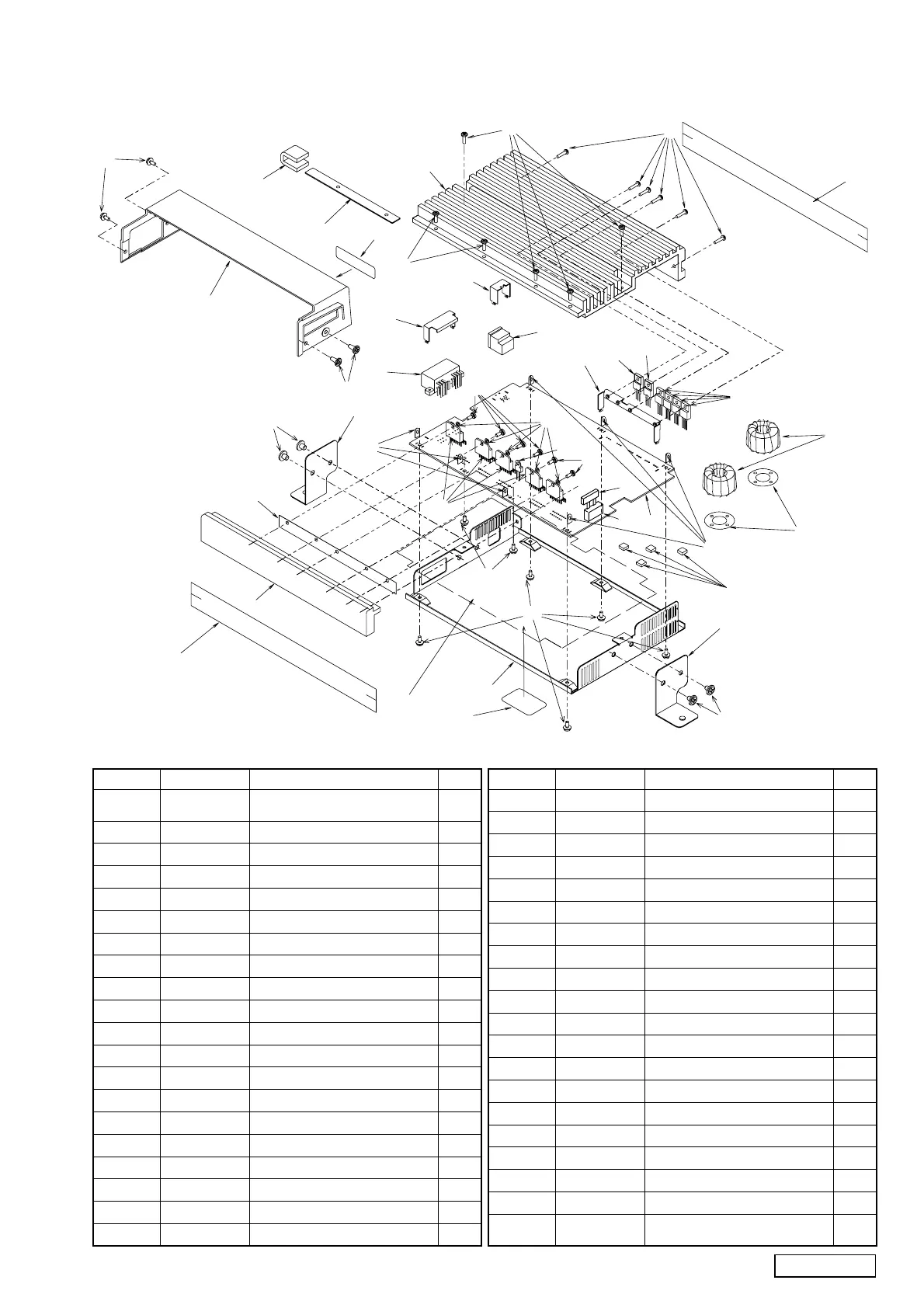

■EXPLODED VIEW・PARTS LIST
3 5
3 5
8
3 1
3 0
2 8
2
2 2
2 3
3 6
2 6
1 3
1 1
1 8
3 3
2 0
2 1
2 7
3
3 4
2 4
1
3 2
1 6
1 7
1 5
1 4
1 2
6
2 9
7
9
3 2
1 8
1 9
2 1
5
4
3 6
2 5
1 0
3 7
3 8
3 9
1 039-1480-01 MAIN PWB 1
(WITHOUT COMPONENT)
2 313-1721-02 HEAT SINK(MAIN) 1
3 304-0457-03 LOWER COVER 1
4 313-1720-00 HEAT SINK(SUB) 1
5 347-5659-00 INSULATOR 1
6 074-1137-00 OUTLET SOCKET(13PIN) 1
7 331-2343-00 DIN-HOLDER 1
8 074-0973-00 OUTLET SOCKET 1
9 331-2344-00 CONNECTOR HOLDER 1
10 051-2024-00 IC(TDA7295) 5
11 347-5660-00 INSULATOR 2
12 331-2342-00 IC-HOLDER 1
13 125-8004-00 TRANSISTOR(MTAJ30N06) 4
14 001-0650-0B DIODE(FMG22S) 1
15 001-0650-0A DIODE(FMG22R) 1
16 002-0223-00 THERMISTOR 1
17 078-0045-00 WASHER(AC316A) 5
18 073-0743-90 TERMINAL(GND) 7
19 300-7708-01 MTG-BRKT(CON) 1
20 300-7707-00 MTG-BRKT 1
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
21 714-5006-77 MACHINE SCREW(M5×6) 4
22 714-3010-87 MACHINE SCREW(M3×10) 4
23 714-3014-87 MACHINE SCREW(M3×14) 6
24 732-3008-17 SEMS SCREW(M3×8) 5
25 735-3008-18 D-SEMS SCREW(M3×8) 2
26 010-8018-00 COIL 2
27 286-9064-09 SETPLATE 1
28 285-1823-00 GUIDE LABEL 1
29 714-3012-80 MACHINE SCREW(M3×12) 2
30 300-7751-00 BRACKET 1
31 345-8193-00 CUSHION 1
32 716-0881-01 D-SEMS SCREW(M3×8) 6
33 345-7555-00 SPACER 4
34 347-5861-00 SHELTER 1
35 735-3008-19 D-SEMS SCREW(M3×8) 4
36 353-0513-01 SHADE 2
37 335-6542-00 HEAT SINK COVER 1
38 060-0057-59 AUTO FUSE(25A) 1
39 335-3086-00 FUSE SUPPORT 1
