Clarion NX504E Installation Manual

60 NX504E/FX504E
English
Connecting the parking brake lead
Connect the lead to parking brake lamp ground in the meter panel.
●
Connecting the parking brake lead to lamp ground allows you to watch video images
when the parking brake is engaged.
●
When the parking brake lead is not connected, the monitor will not display video images.
Parking brake lamp
Electro-tap
Parking brake lead
(Grass-green)
Parking brake
signal lead
Parking brake
+
lead to battery
●
How to attach the electro-tap
1. Place the Parking brake lead at the stopper,
and fold it back in the direction of the arrow.
2. Pass the Parking brake signal lead through,
and fold it back in the direction of the arrow.
Parking brake
signal lead
Stopper
Parking brake
signal lead
Parking brake lead
(Grass-green)
❏
Connecting the Accessories
Connection to the Rear Vision Camera for vehicle
The Rear Vision Camera for vehicle can be connected to optional Rear Vision Camera input
cable (CCA-644) with RCA pin cable. For detailed information, refer to the instruction sheet
or manual for the Rear Vision Camera.
●
Be sure to connect the reverse gear lead to the vehicle’s relevant terminal.
●
Connect the Rear Vision Camera to the RCA pin cable; if not, the screen turns black while
the gearshift lever is in the reverse gear position.

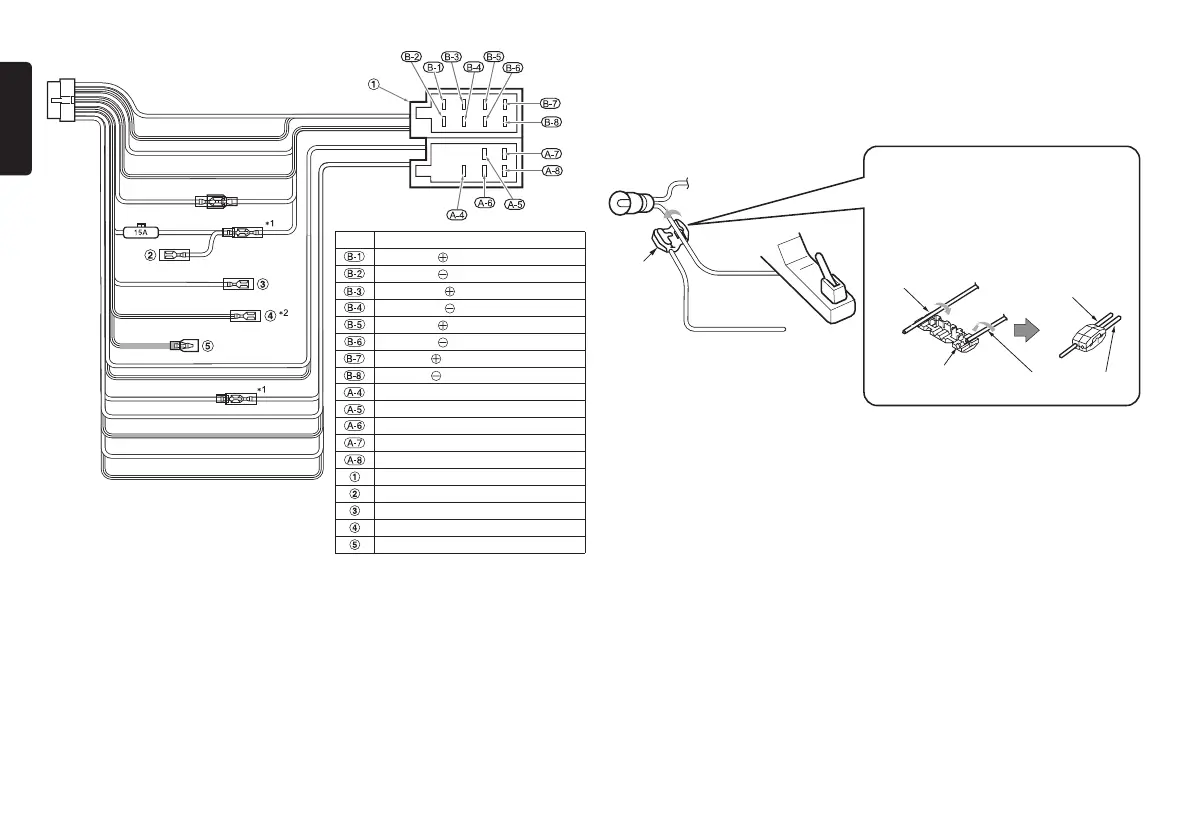

No. Description
REAR RIGHT
REAR RIGHT
FRONT RIGHT
FRONT RIGHT
FRONT LEFT
FRONT LEFT
REAR LEFT
REAR LEFT
+12 V MAIN POWER (*1)
Auto antenna
ILLUMINATION
+12 V ACCESSORY (*1)
GROUND
ISO CONNECTOR
Spare terminal (Yellow)
Parking brake (Grass-green)
Remote terminal (Blue/White) (*2)
Reverse gear terminal (Purple/White)
*1 In certain vehicles - Volkswagen/Opel/Vauxhall - it is necessary to exchange the accessory
<<Red>> and the main power <<Yellow>> connection, to avoid overload and loss of memory.
*2 When the unit is installed in a 1998 or later Volkswagen model, make sure to interrupt the
<<Remote>> output. Disconnect the <<blue/white>> wire and insulate the front ends of this
cord. A breakdown may occur if the cord is not disconnected, or front ends are not insulated.
See next page for how to connect the parking brake lead.

Clarion NX504E Specifications

General

MP3 playback	Yes
Product color	Black
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, DAB, FM
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Key illumination color	Multi

Weight and Dimensions

Dimensions (WxDxH)	178 x 157 x 100 mm
