Clarion PF-2945A-A User Manual

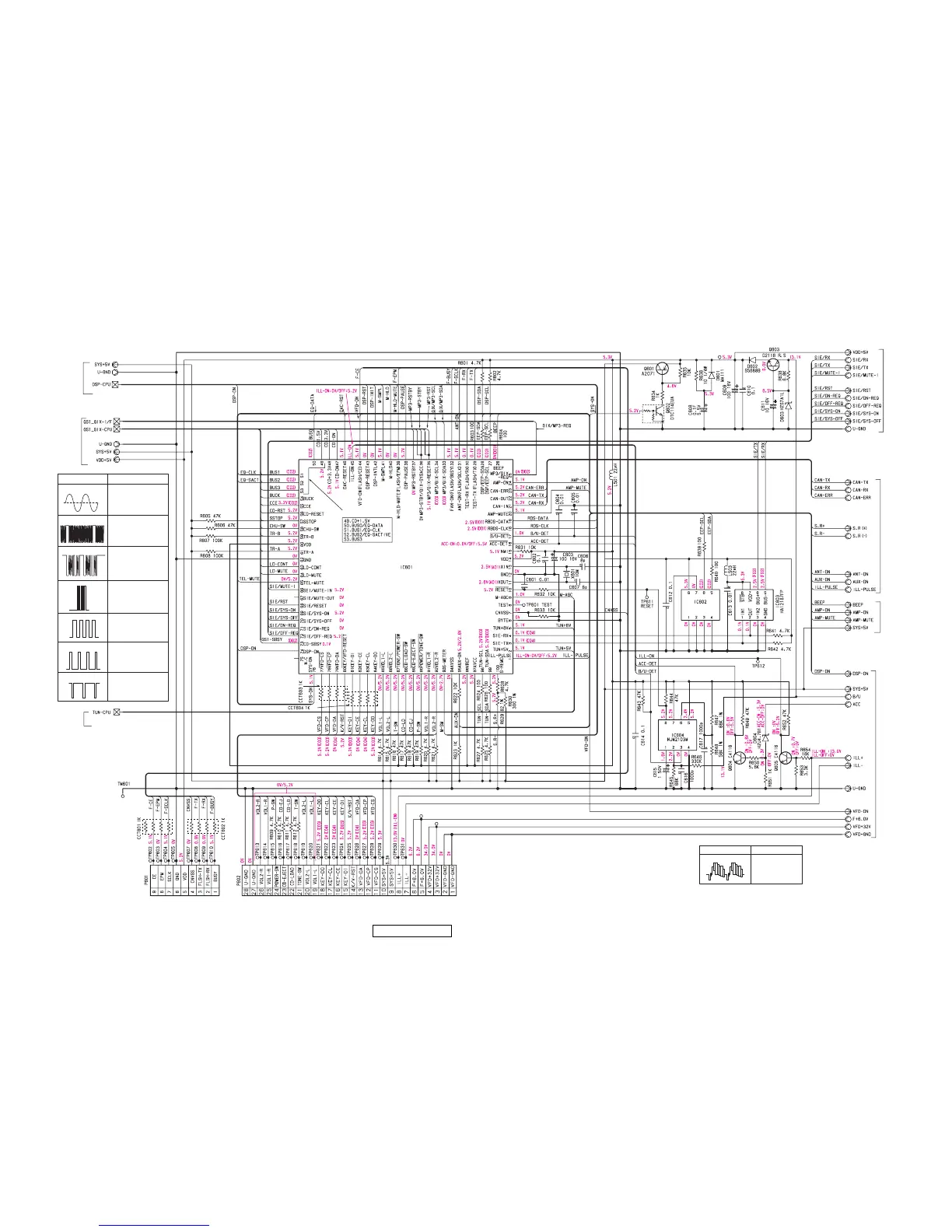

CIRCUIT DIAGRAM 7/10
Main PWB(B1) section 6/7
-25-
PF-2945A-A/PF-2982B-A
To J1 of Switch PWB(B2) (page 27)
To 3/7 (page 23)
To 1/7 (page 21)
To 2/7 (page 22)
To 7/7 (page 26)
To 7/7 (page 26)
To 4/7 (page 24)
To 5/7 (page 24)
x4
x4
x4
x4
( FIASH-WRITE)
M30876FJAGP
S-24CS16A01
-T8T1G
IC601---18,19,26Pin
IC601---25,73Pin
IC601---81,98,99Pin
IC601---3,4,79,82,83,Pin
IC601---33,34,77,78,84Pin
P602---11,12,18Pin
P602---13,16,17Pin
IC601---11,13Pin
IC602---5,6Pin
IC601---27,28,50,51,52,
53,54,55Pin
Waveform
Waveform
point
C03
C04
C02
D01
D02
D03
A01
P602---15Pin
F02
IC603---5,6Pin
Waveform
Waveform point
