Clarion PF-2945A-A User Manual

PF-2945A-A/PF-2982B-A
-7-
1
15
9
7
x23
9
10
8
x4
8x4
11
12
16
14
17
3
2
13
13
4
5

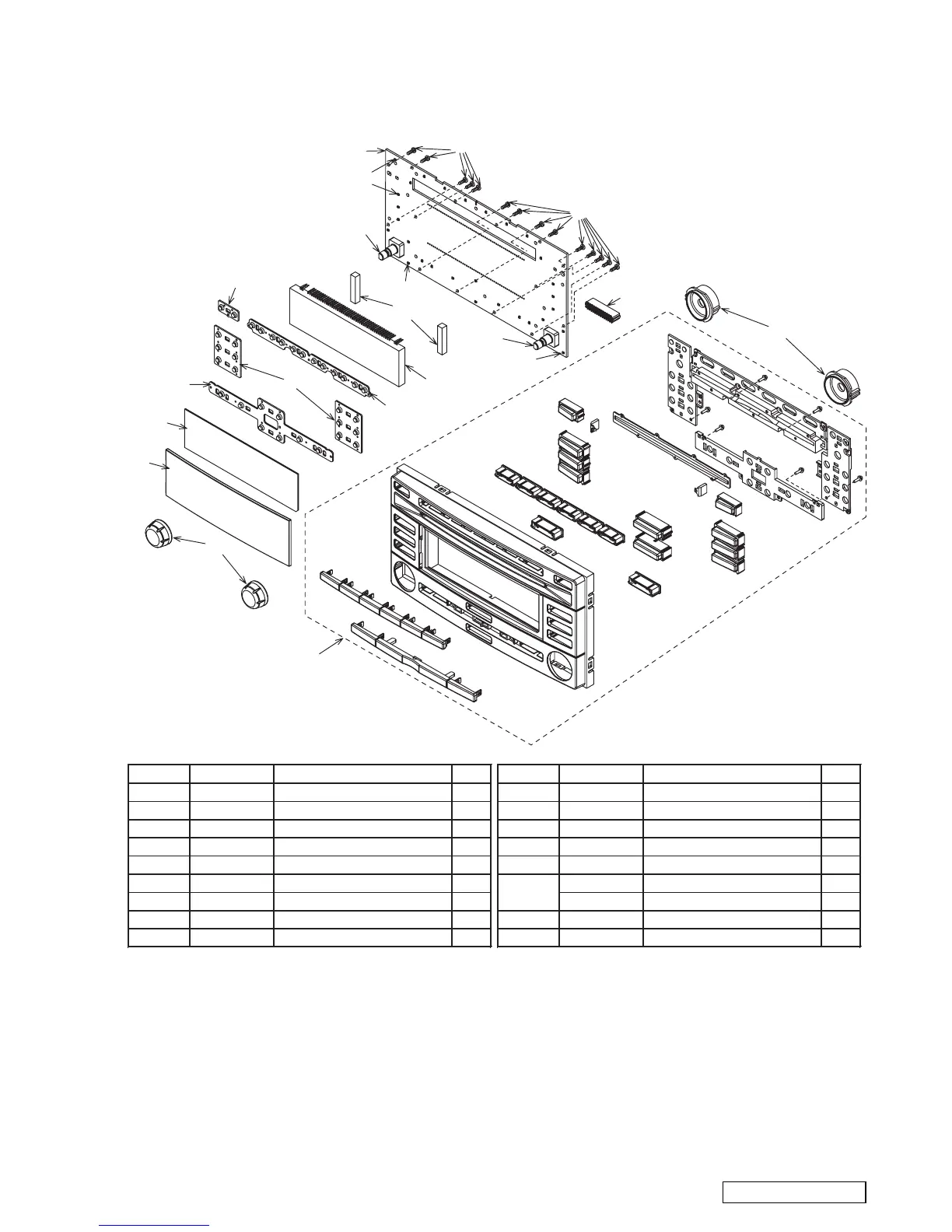

EXPLODED VIEW / PARTS LIST
Escutcheon section
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 940-8185-10 ES-ASSY 1 10 074-3014-78 OUTLET SOCKET(28P) 1
2 345-6070-00 RUBBER SWITCH A 1 11 345-5995-20 SPACER 2
3 345-6071-00 RUBBER SWITCH B 1 12 379-4062-24 INDICATOR(VFD) 1
4 345-6072-00 RUBBER SWITCH C 2 13 716-0778-52 SCREW(M2x8) 14
5 345-6073-00 RUBBER SWITCH D 1 14 335-8079-00 COLOR-FILTER 1
6 ------------- Switch PWB 1 15 373-1146-10 DIAL-CVR(PF-2945A-A) 1
7 001-7094-91 DIODE 23 373-1146-15 DIAL-CVR(PF-2982B-A) 1
8 001-7094-92 DIODE 8 16 380-5700-10 KNOB 2
9 016-0018-21 VR W/SHAFT 2 17 335-8078-00 ILLUMI RING 2
6
Note) Some parts depend on
each model. The model name
is specified in the description.
