Clarion PP-2515L User Manual

- 6 -PP-2515L

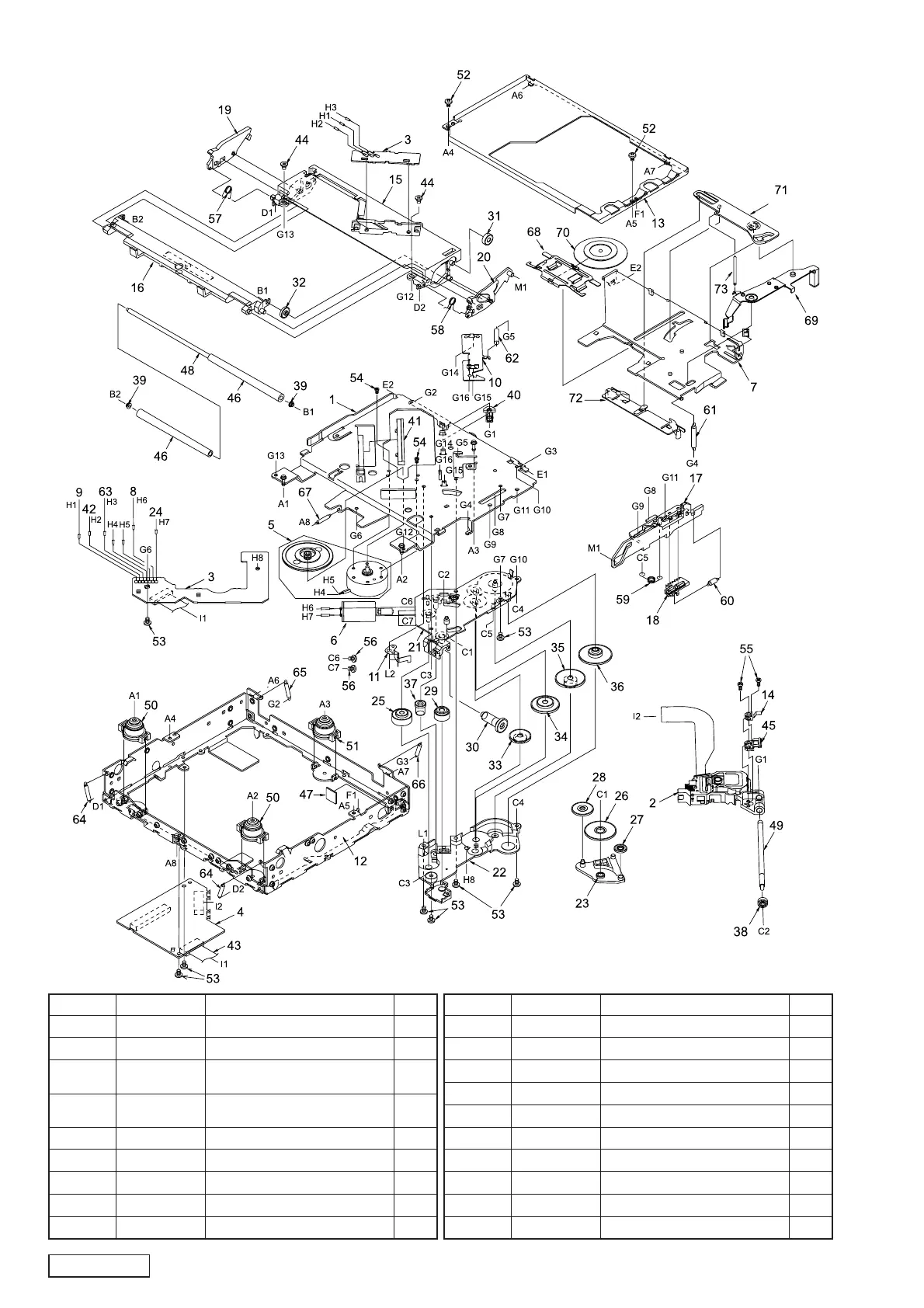

CD mechanism section 929-0220-83
1 966-0595-25 DRIVE PLATE ASSY 1
2 969-0060-30 PICK UP UNIT 1
3 039-1944-21 LED PWB 1
(WITHOUT COMPONENT)
4 039-1945-20 CD PWB 1
(WITHOUT COMPONENT)
5 SMA-182-100 MOTOR ASSY(SPINDLE) 1
6 SMA-183-100 MOTOR ASSY(SLED) 1
7 620-1022-24 CLAMPER LINK 1
8 803-4906-60 VINYL COAT WIRE(ORG) 1
9 816-2591-00 LEAD WIRE(YEL) 1
10 620-1025-22 ID-LOCK PLATE 1
11 620-1026-21 SPRING PLATE 1
12 620-1027-25 LOWER CHASSIS 1
13 620-1028-22 UPPER CHASSIS 1
14 966-0638-20 SH-RACK ASSY 1
15 621-0598-26 UPPER GUIDE 1
16 621-0599-25 ROLLER GUIDE 1
17 621-0600-25 SHIFT LEVER 1
18 621-0601-21 RACK 1
19 621-0602-22 LOCK ARM L 1
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY

Clarion PP-2515L Specifications

General

Brand	Clarion
Model	PP-2515L
Category	Car Receiver
Language	English
