PU-2471A
PU-2472B, C
- 5 -

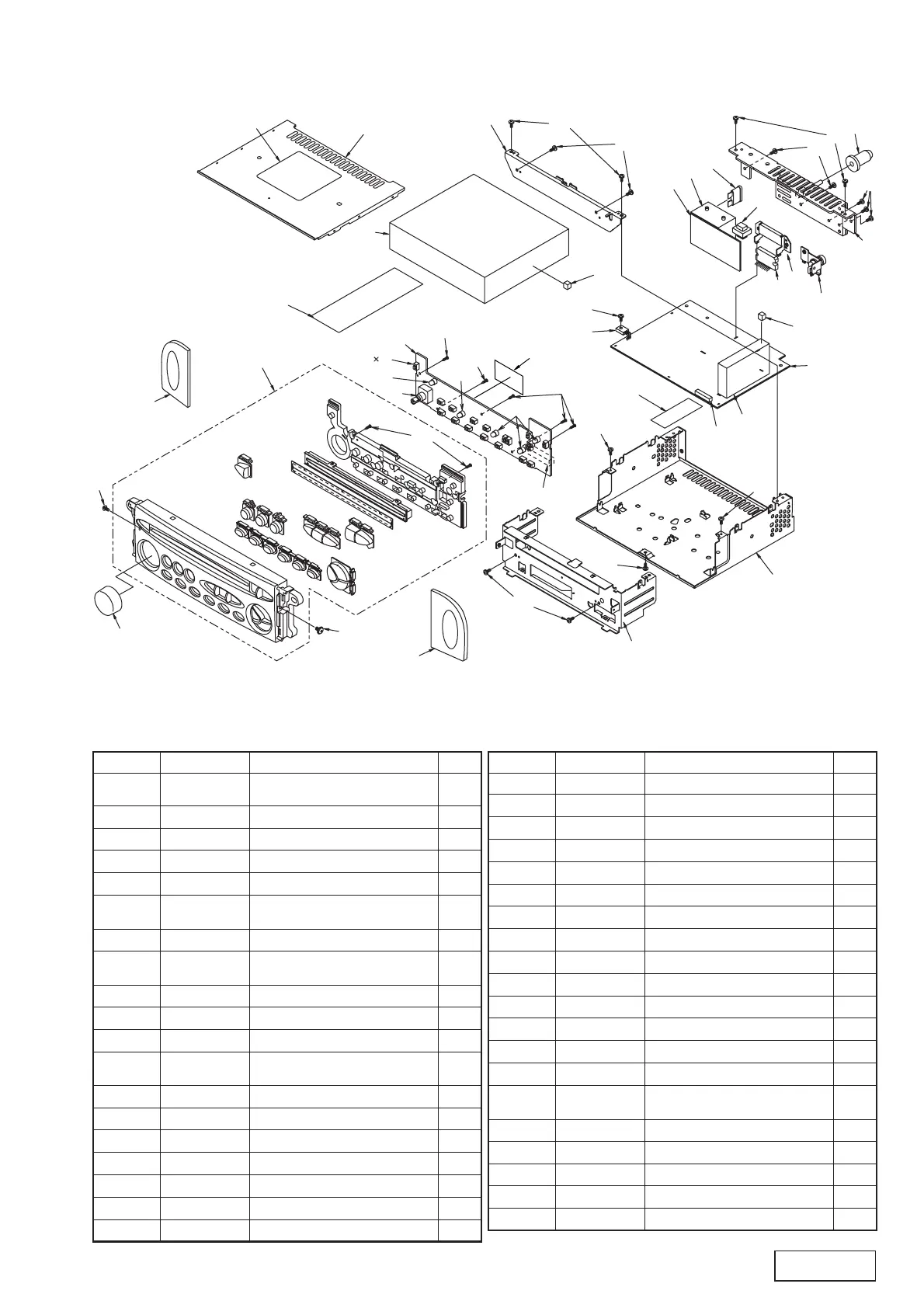

Main section : PU-2472B,C
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 940-7897-66 ESCUTCHEON ASSY(2472C-C) 1
940-7897-72 ESCUTCHEON ASSY(2472B-C)
1-1 716-0778-00 WAVE SCREW 2
2 380-5439-11 KNOB 1
3 780-2605-00 IT IB SCREW(M2.6 x 5) 2
4 309-0774-11 FRONT PLATE 1
5 039-1936-00 SWITCH PWB 1
(WITHOUT COMPONENT)
6 311-1808-11 LOWER CASE 1
7 039-2047-02 MAIN PWB 1
(WITHOUT COMPONENT)
8 880-2088A TUNER PACK(FM/MW/LW) 1
9 816-2525-02 FLAT WIRE 1
10 102-3420-00 TRANSISTOR(2SC3420) 1
11 039-1805-02 ISO PWB 1
(WITHOUT COMPONENT)
12 074-1159-01 OUTLET SOCKET 1
13 060-0057-56 AUTO FUSE(10A) 1
14 009-9006-60 CHOKE 1
15 331-2574-00 IC HOLDER 1
16 051-2013-00 IC(TDA7385) 1
17 331-2989-00 ANT HOLDER 1
18 074-1228-68 OUTLET SOCKET(18P) 1
19 313-1796-00 HEATSINK 1
20 345-8581-02 GASKET 1
21 345-4847-21 STOPPER 1
22 816-2564-01 FLAT WIRE 1
23 929-0220-80 CD MECHANISM 1
24 331-3377-00 MECHANISM BRACKET 1
25 310-1713-10 UPPER COVER 1
26 714-2603-81 MACHINE SCREW(M2.6 x 3) 4
27 731-2606-80 TAPTIGHT(M2.6 x 6) 6
28 716-0778-10 WAVE SCREW 5
29 714-2606-81 MACHINE SCREW(M2.6 x 6) 7
30 016-0010-16 ROTARY ENCODER 1
31 017-0454-02 PILOT LAMP(14V40mA) 5
32 345-8581-03 GASKET 1
33 286-9487-32 SETPLATE(2472B-C) 1
286-9487-33 SETPLATE(2472C-C)
34 013-3741-11 SWITCH 18
35 074-1035-68 OUTLET SOCKET(18P) 1
36 335-6315-10 DUMMY COVER(2472B-C) 1
37 335-6316-10 DUMMY COVER(2472B-C) 1
38 345-5162-00 INSULATOR 1
6
7
8
10
11
12
13
14
16
17
19
22
23
25
33
9
35
26
27
24
29
21
29
27
15
29
26
29
27
27
4
32
20
2
1
3
3
30
34
5
18
31
28
36
37
38
1-1
28
28
31
31
18
( 2472B-C )
( 2472B-C )
Note) Some parts depend on each model. The model name is specified in the description.
