PU-2471A
PU-2472B, C
- 4 -

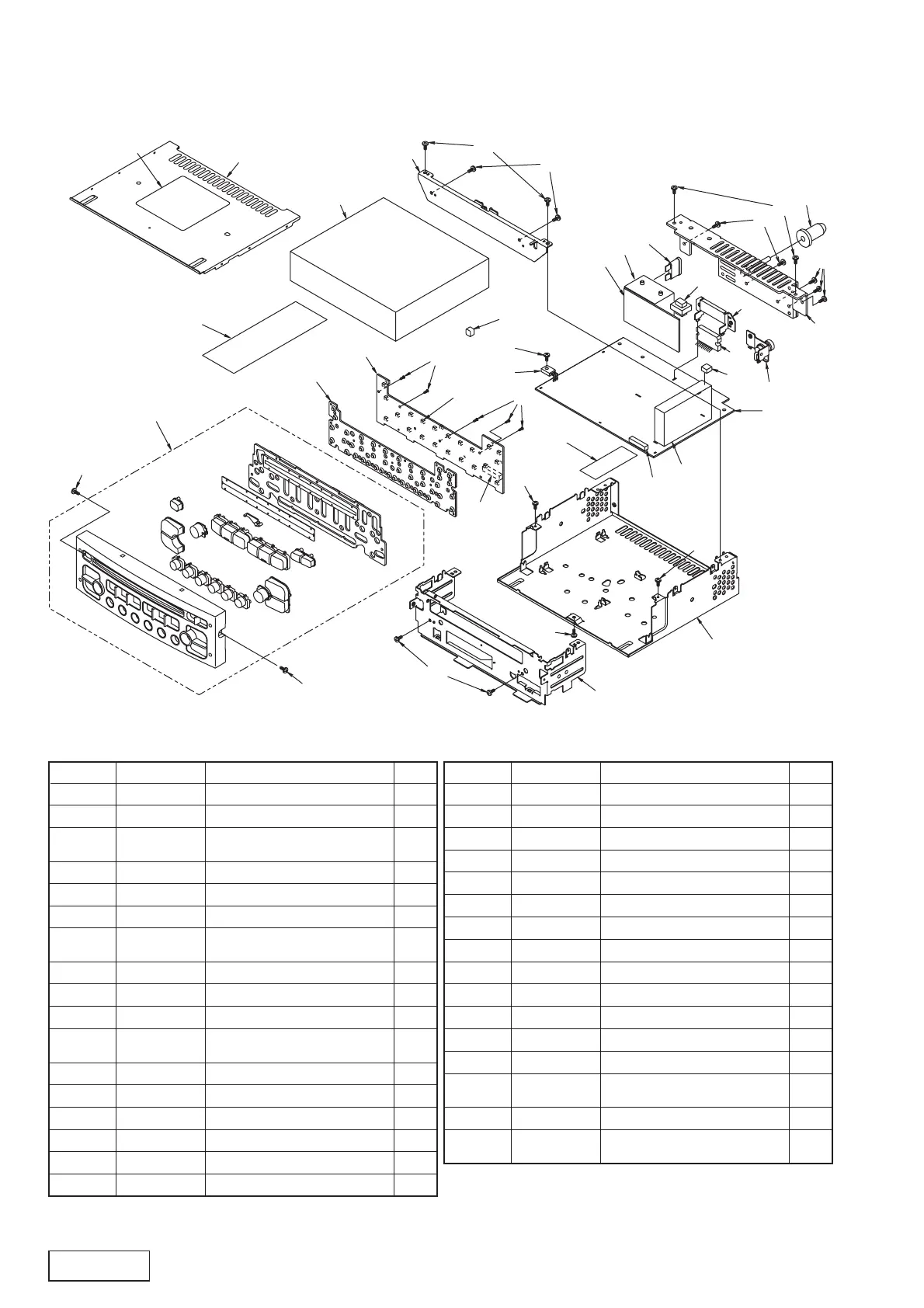

EXPLODED VIEW/PARTS LIST
Main section : PU-2471A
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 940-7915-64 ESCUTCHEON ASSY 1
2 345-8532-00 RUBBER SWITCH 1
3 039-1806-01 SWITCH PWB 1
(WITHOUT COMPONENT)
4 309-0759-11 FRONT PLATE 1
5 780-2605-00 IT IB SCREW(M2.6 x 5) 2
6 311-1808-01 LOWER CASE 1
7 039-2047-02 MAIN PWB 1
(WITHOUT COMPONENT)
8 880-2088A TUNER PACK(FM/MW/LW) 1
9 816-2525-02 FLAT WIRE 1
10 102-3420-00 TRANSISTOR(2SC3420) 1
11 039-1805-02 ISO PWB 1
(WITHOUT COMPONENT)
12 074-1159-01 OUTLET SOCKET 1
13 060-0057-56 AUTO FUSE(10A) 1
14 009-9006-60 CHOKE 1
15 331-2574-00 IC HOLDER 1
16 051-2013-00 IC(TDA7385) 1
17 331-2989-00 ANT HOLDER 1
18 074-1035-00 OUTLET SOCKET(18P) 1
19 313-1796-00 HEATSINK 1
20 345-8581-02 GASKET 1
21 345-4847-21 STOPPER 1
22 816-2564-01 FLAT WIRE 1
23 929-0220-80 CD MECHANISM 1
24 331-3377-00 MECHANISM BRACKET 1
25 310-1713-00 UPPER COVER 1
26 714-2603-81 MACHINE SCREW(M2.6 x 3) 4
27 731-2606-80 TAPTIGHT(M2.6 x 6) 6
28 716-0778-10 WAVE SCREW 5
29 714-2606-81 MACHINE SCREW(M2.6 x 6) 7
30 074-1304-68 OUTLET SOCKET(18P) 1
31 001-7053-90 DIODE (2471A-G) 22
001-7053-91 DIODE (2471A-H)
32 345-8581-03 GASKET 1
33 286-9487-30 SETPLATE(2471A-G) 1
286-9487-31 SETPLATE(2471A-H)
6
1
2
3
7
8
10
11
12
13
14
17
19
22
23
30
5
5
9
18
28
31
x
22
28
26
27
24
29
21
29
27
29
26
29
27
27
4
32
15
16
20
25
33
Note) Some parts depend on each model. The model name is specified in the description.
