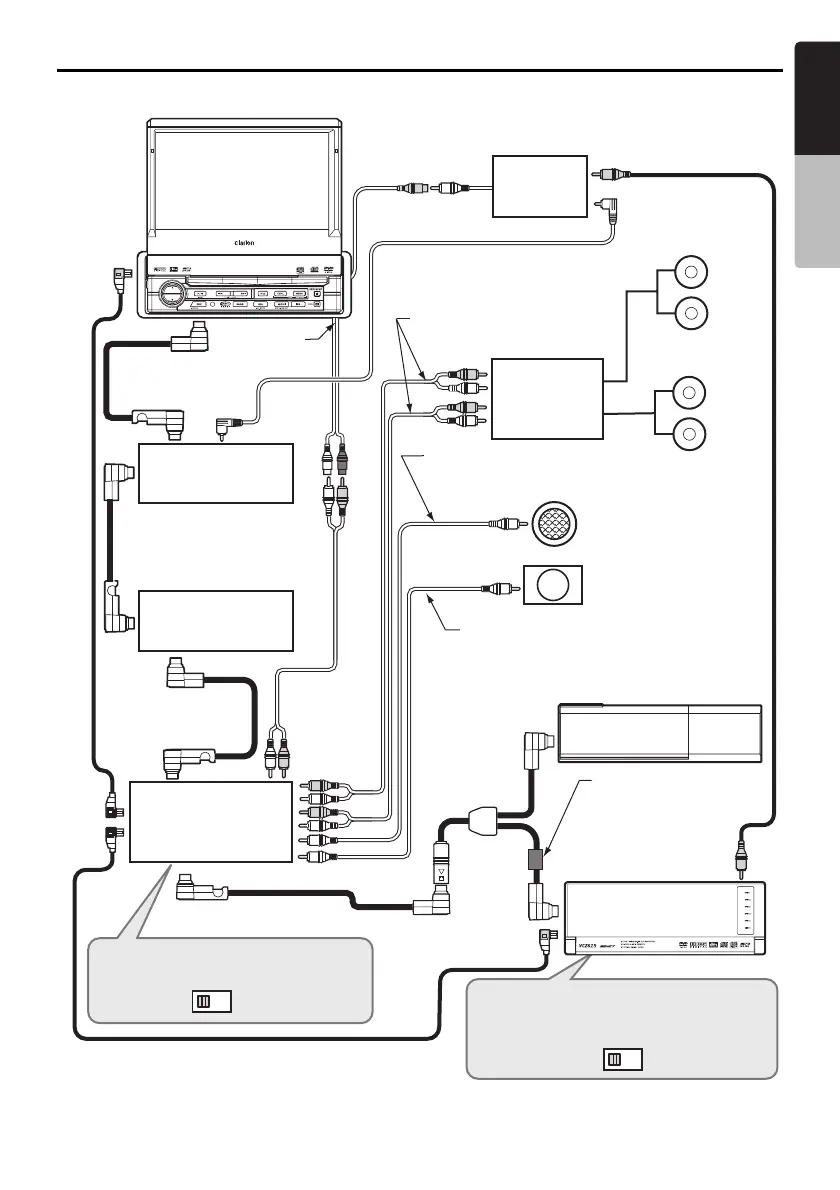

9. SAMPLE SYSTEM
VRX765VD
CeNET
STAND
ALONE
SLAVE
STAND
ALONE
(VCZ625)
(DVH940)
(TTX7501z)
(SRK5)
(SRV303)
(DCZ625)
TV Tuner
CeNET cable
(included
the TV tuner)
RCA video cable
(included the TV tuner)
CeNET DVD Changer
5.1 ch Surround
Decoder
CeNET cable
(included the
DVH940)
Front
Speakers
4-Channel
Amplifier
Rear
Speakers
Center speaker
built-in amplifier
Powered sub-woofer
built-in amplifier
(Black)
Digital optical fiber cable (included the DVH940)
RCA cable
(sold separately)
RCA cable
(sold separately)
RCA cable (sold separately)
Digital optical fiber cable
(
DCA-005/008, sold separately)
Set the [SLAVE/STAND ALONE]
switch to the [SLAVE] position.
Set the [CeNET/STAND ALONE] switch
to the [CeNET] position.
(Gray)
(Gray)
RCA video cable (included the VCZ625)
Ferrite clamp
(Included the
DVD changer)
RCA cable
(included
the DVH940)
Red
White
Non fader
output
CeNET Cable
(included the Changer)
Satellite Radio
Receiver
CeNET cable
(included the SIRIUS)
*XM ; sold separately
CeNET Y-adapter
(CCA-519-601,
sold separately)
CeNET CD Changer
Video
Selector
Yellow
Purple
