Installation manual

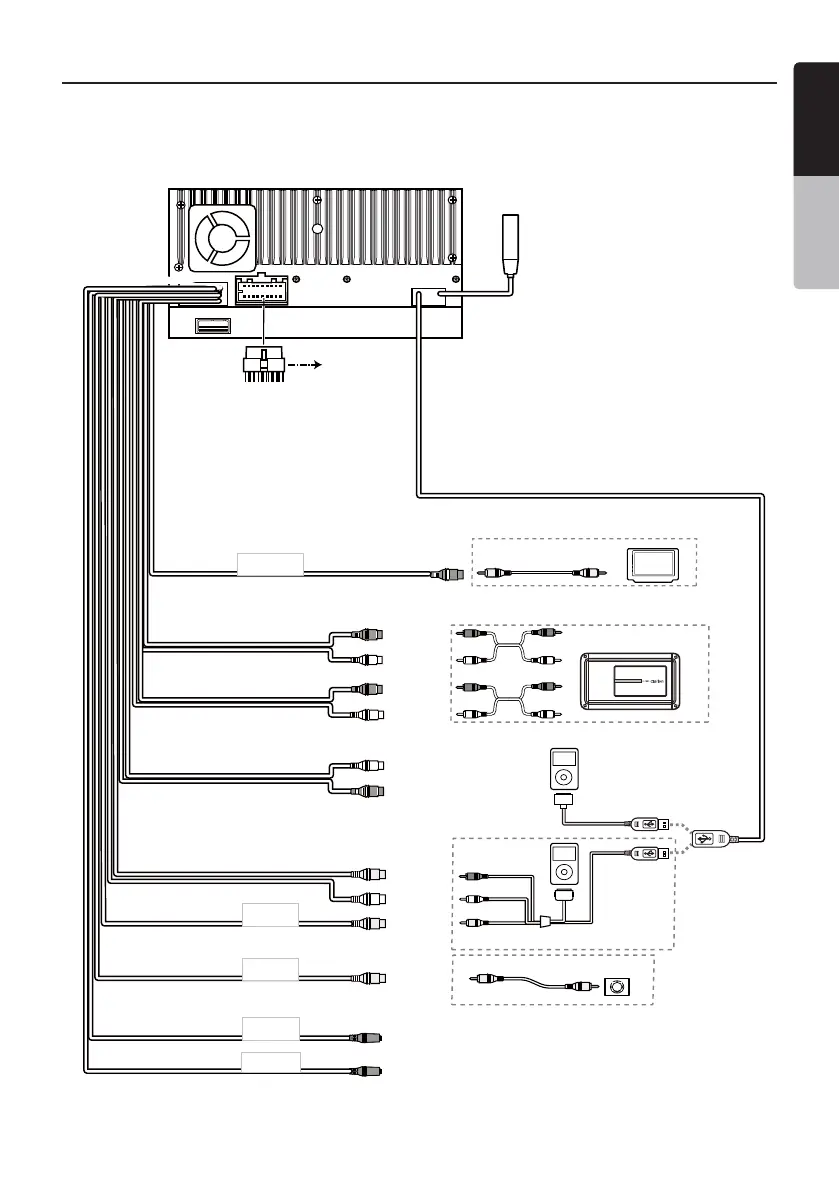

7. Wire Connections
Note:
• Before installing, be sure to disconnect the negative cable of the car battery.
• In the optional devices, the RCA cables and the Connector cables are separately-sold
items.
VX401E
iPod/iPhone
Video In
Audio/L
Audio/R
CCA-748 (sold separately)
4-Channel Amplifier
Subwoofer 1
Subwoofer 2
Line Out
Rear R
Line Out
Rear L
Line Out
Front R
Line Out
Front L
Red
Steering Wheel
Remote Control Terminal
External Microphone
Connection
Monitor
Gray
Black
Black
Video Out
Rear Vision Camera
Radio Antenna
Jack
Purple
Gray
Black
Yellow
Red
White
Red
White
Red
White
Yellow
Yellow
White
Red
SWI
CAMERA
VIDEO OUT
VISUAL IN
MIC
Camera
Black
Refer to
page 53
