FEATURES - XC1120
The Clarion XC1120 amplifi er is designed with performance and convenience in mind.
Through the use of state-of-the art signal processing and high speed output devices, this
amplifi er offers excellent sound quality and dynamics. The XC1120 amplifi er incorporates
the following features:
• High Speed output devices for dynamic performance
• Pulse Width Modulated MOSFET Power Supply for effi cient power delivery
• Remote Turn-On with muting for silent start-up
• Adjustable Low-Pass Electronic Crossover with -12dB/Octave Slope, 60, 90 or 250Hz
• Adjustable input level controls with ground loop isolation
• 2-Ohm load stable
• Corrosion resistant power, speaker and RCA connections
• BC2 Remote subwoofer level control compatible
• Speaker level input Jack included
• Circuit Boards with a conformal coating to resist moisture damage
• Low Profi le design with corrosion resistant high effi ciency aluminum heat sink

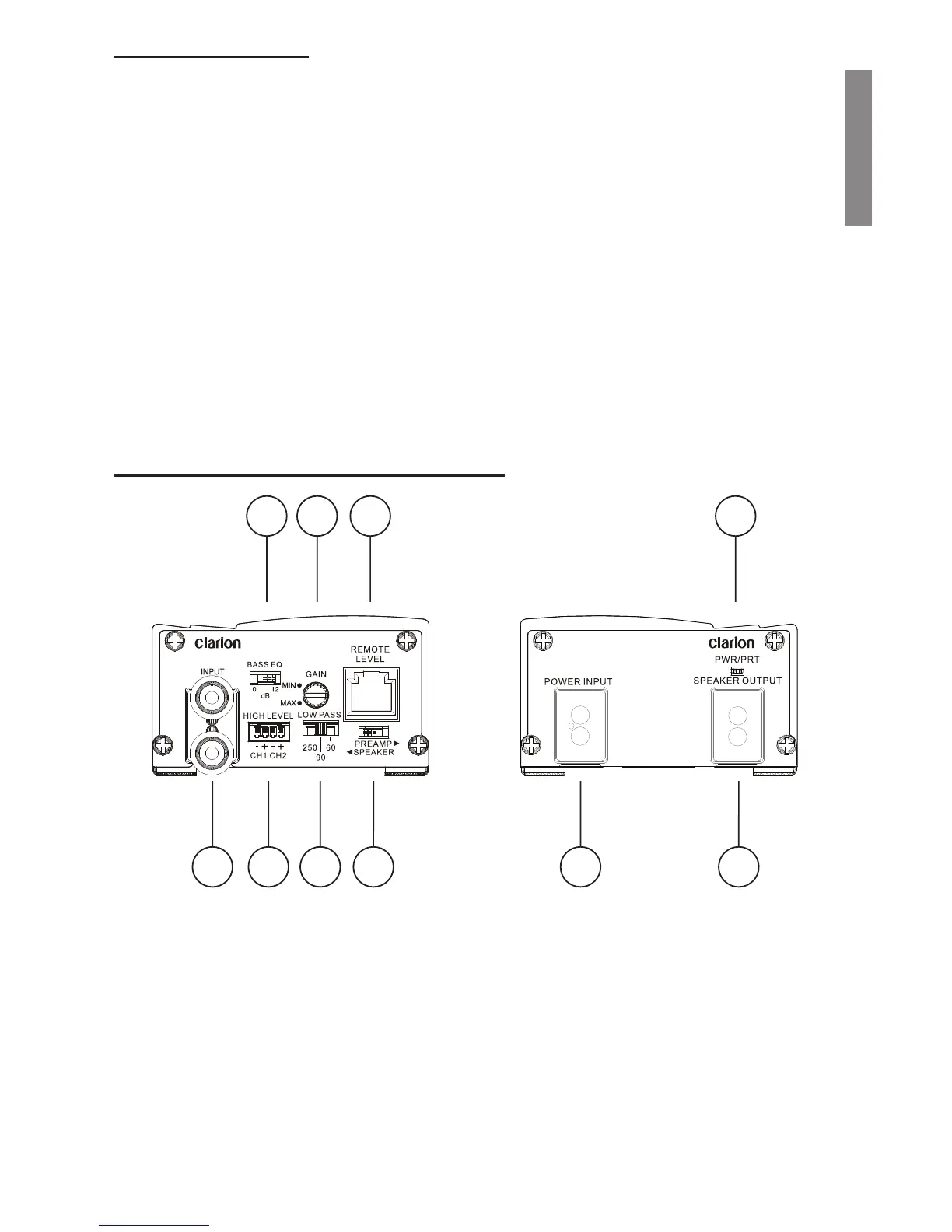

XC1120 CONNECTIONS AND CONTROLS
1. Bass EQ Switch
2. Input Sensitivity Control (Gain)
3. BC2 Remote Level Control Connection Jack
4. Power/Protection LED
5. Input RCA Connection Pigtails
6. Speaker Level Input Jack
7. Crossover Frequency Selector
8. Preamp/Speaker Level input selector
9. Power Input Connector Jack
10. Output Speaker Wires:
Red: + Output
Black: - Output
5 6 7 8 9
321
10
4
