FEATURES - XC1420
The Clarion XC1420 amplifi er is designed with performance and convenience in mind.
Through the use of state-of-the art signal processing and high speed output devices, this
amplifi er offers excellent sound quality and dynamics. The XC1120 amplifi er incorporates
the following features:
• High Speed output devices for dynamic performance
• Pulse Width Modulated MOSFET Power Supply for effi cient power delivery
• Remote Turn-On with muting for silent start-up
• Selectable High-Pass Electronic Crossover with -12dB/Octave Slope - 60/90/Off
• Adjustable input level controls with ground loop isolation
• 2-Ohm load stable
• Bridgeable design (Minimum impedance 4 Ohms)
• Corrosion resistant power, speaker and RCA connections
• Speaker level input RCA Adapters
• Circuit Boards with a conformal coating to resist moisture damage
• Low Profi le design with corrosion resistant high effi ciency aluminum heat sink

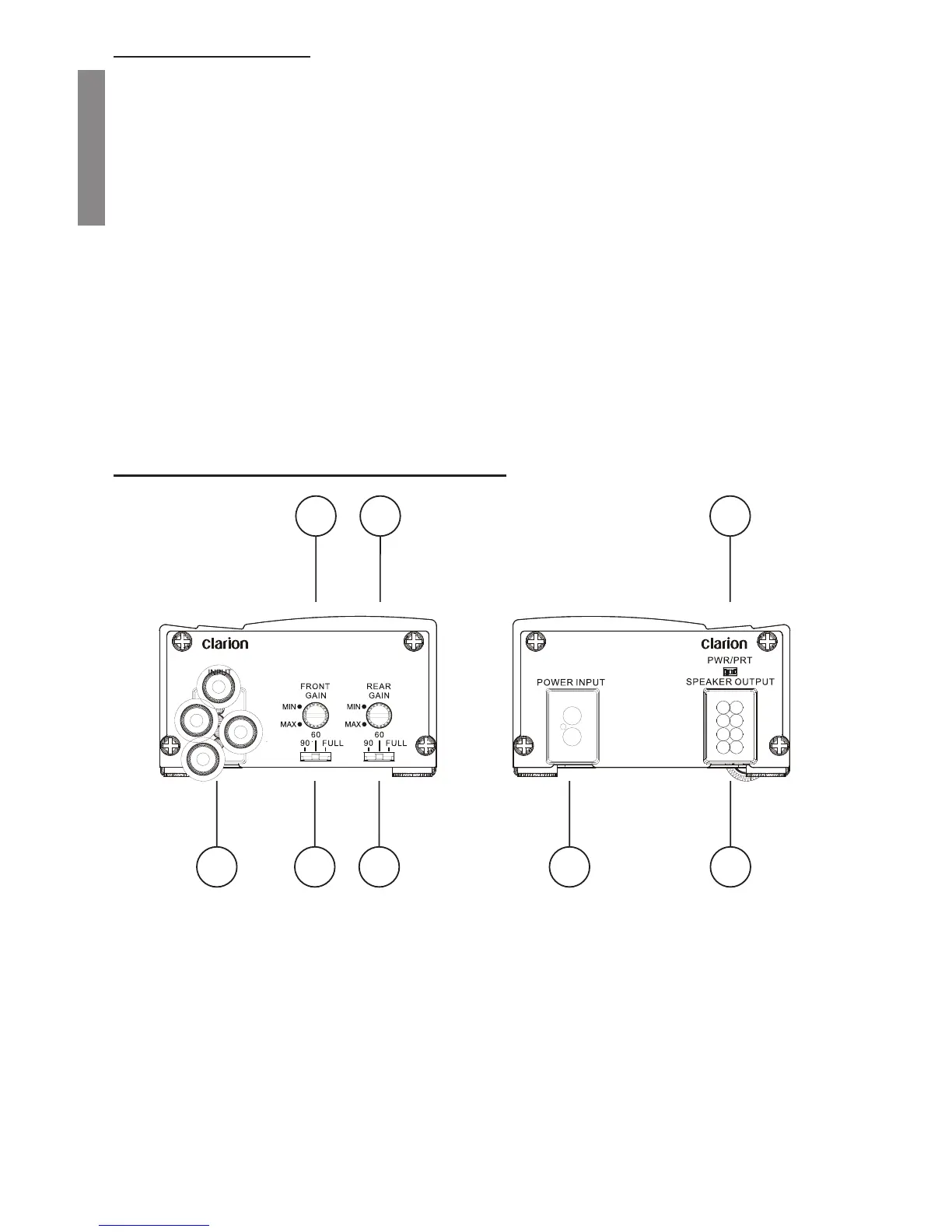

XC1420 CONNECTIONS AND CONTROLS
1. Front Channel’s Input Sensitivity Control (Gain)
2. Rear Channel’s Input Sensitivity Control (Gain)
3. Power/Protection LED
4. Input RCA Connection Pigtails
5. Front Channel’s Crossover Frequency Selector
6. Rear Channel’s Crossover Frequency Selector
7. Power Input Connector Jack
8. Output Speaker Wires
White: Left Front + Green: Left Rear +
White/Black: Left Front - Green/Black: Left Rear -
Grey: Right Front + Violet: Right Rear +
Grey/Black: Right Front - Violet/Black: Right Rear -
321
4 5 6 7 8
