XN3210/XN3410 15
English
Owner’s Manual

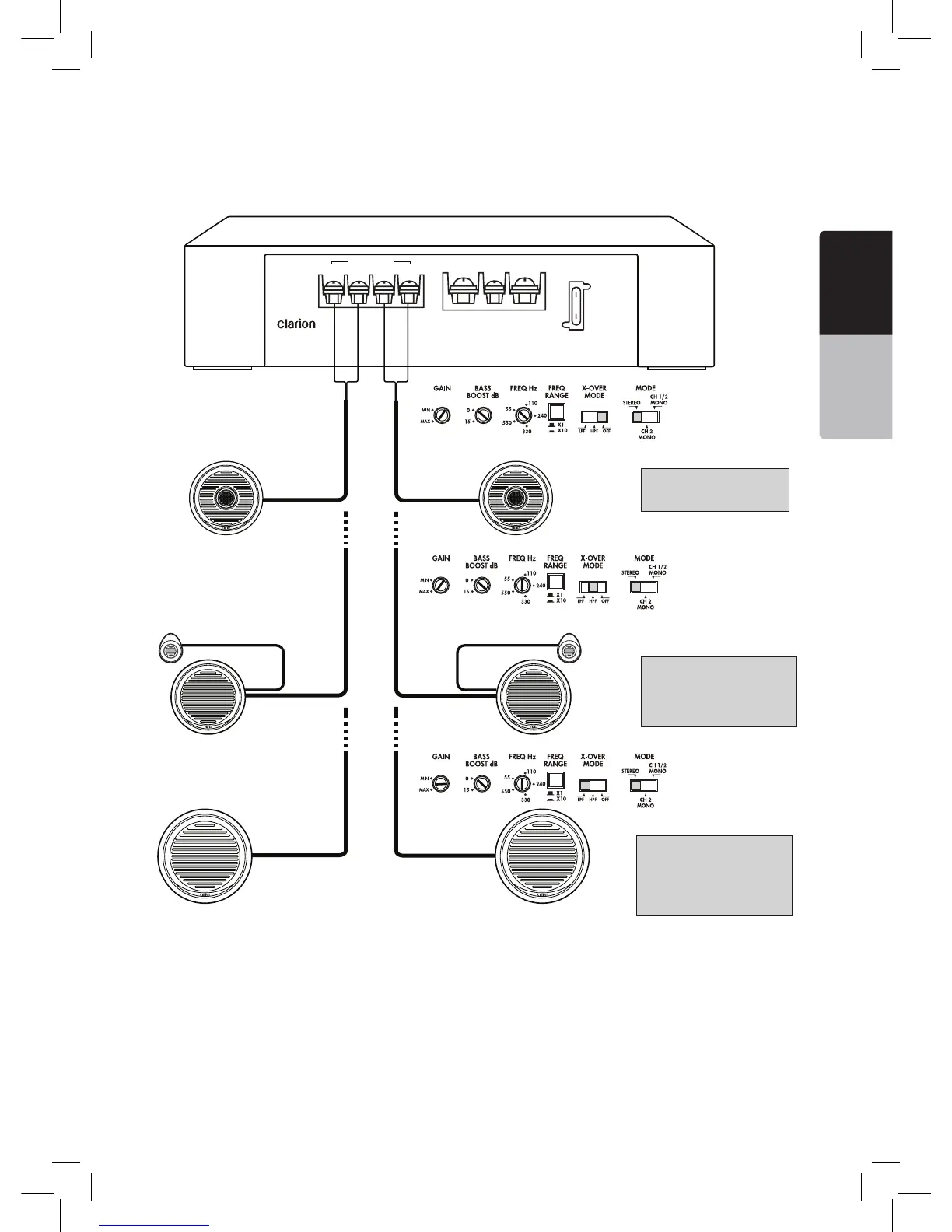

Fig. 10
2-Channel Full-Range, Satellite, or Subwoofer Stereo System
(Set INPUT SELECT Switch to STEREO)
Left Full Range Speaker Right Full Range Speaker
Right Component
Speaker System
Left Component
Speaker System
Left Subwoofer
Right Subwoofer
4 Ω BRIDGED
FUSE
40A
GND REM +12V
+ L – + R –
In this application, the amplifier is used in stereo and drives two full-range (or
satellite or subwoofer) speakers.
Note the filter settings.
Set X-Over Mode as
shown.
Set X-Over Mode
as shown.
Adjust FREQ to speaker
specifications.
Set X-Over Mode as
shown.
Adjust FREQ to speaker
specifications.
XN3210_3410 manual_060410 R2.ind15 15 9/3/2010 8:49:30 AM

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Clarion XN3210 and is the answer not in the manual?

Clarion XN3210 Specifications

XN3410

Audio Specifications IconAudio Specifications
frequency response20Hz ~ 20kHz
signal to noise ratio97db
total harmonic distortion (THD).10% all channels driven
Input Sensitivity IconInput Sensitivity
low level input sensitivity200mV ~ 6.0V

XN3210

Audio Specifications IconAudio Specifications
frequency response20Hz ~ 20kHz
signal to noise ratio95db
total harmonic distortion (THD).10% all channels driven
Input Sensitivity IconInput Sensitivity
low level input sensitivity200mV ~ 6.0V
speaker level input sensitivity500mV ~ 13V
Power Output IconPower Output
max power output360W (180W x2)
continuous power output180W (90W x2) @ 1.0% THD
2-ohm stereo output150W x 2 @ 1.0% THD
bridged power250W x 1 @ 1.0% THD
Power Consumption IconPower Consumption
current consumption29A @ 382 Watts
Weight and Dimensions IconWeight and Dimensions
dimensions2-9/16" H x 9" W x 13" L
