Owner’s Manual
7. When creating passage holes for power cables, RCA's cables, and speaker wires,
use grommets to eliminate any sharp edges created during drilling. This will
protect the wire from being nicked and causing a short circuit.
8. Extra cable can cause signal loss and act as an "antenna" for noise. Use only
high-quality RCA cables that are no longer than necessary.
9. In multiple amplifier systems, it is recommended to use a relay on the remote
turn-on lead of the radio.
XN3410 WIRING AND APPLICATIONS
The Clarion XN3410 4-channel marine audio amplifier can be used in a variety of
system applications. Here are some examples to help plan your own installation.
CH4 Speaker
CH3 Speaker
4 Ω BRIDGED
FUSE
+ CH1 –
GND REM +12V
30A 30A
+ CH2 –
4 Ω BRIDGED
+ CH3 – + CH4 –
CH1 Speaker CH2 Speaker

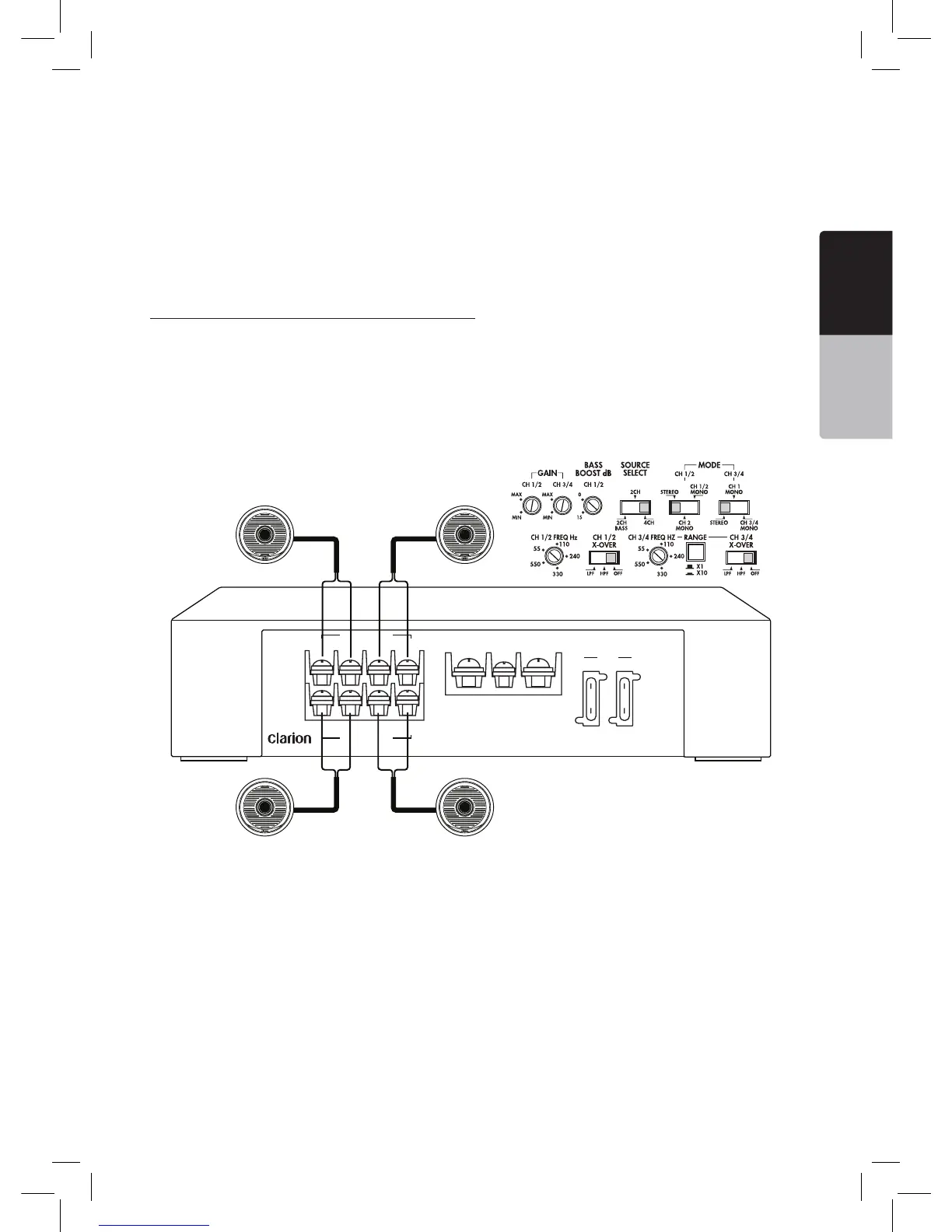

Fig. 4
4-Channel Full Range Stereo System
In this application, the XN3410 is used as a 4-channel amplifier to drive four full
range speakers in stereo.
