10 XN3210/XN3410
English
Owner’s Manual
4 Ω BRIDGED
FUSE
+ CH1 –
GND REM +12V
30A 30A
+ CH2 –
4 Ω BRIDGED
+ CH3 – + CH4 –
CH1 Subwoofer CH2 Subwoofer
CH3 Speaker System CH4 Speaker System

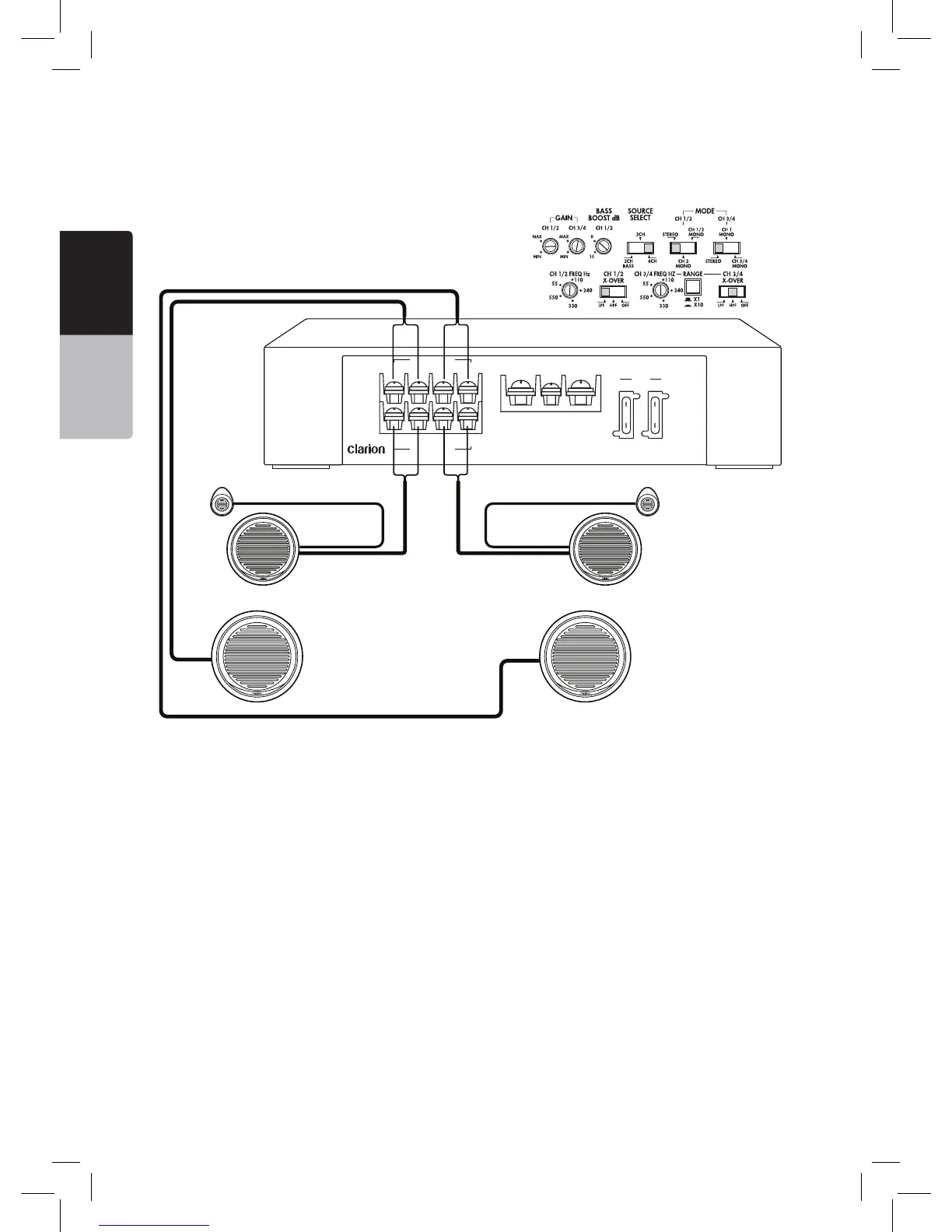

Fig. 5
4-Channel Stereo System,
2-Channel High-Pass, 2-Channel Low-Pass
In this 4-channel system, the XN3410 drives a pair of stereo satellites for the front
and a pair of subwoofers. Note the filter settings.
XN3210_3410 manual_060410 R2.ind10 10 9/3/2010 8:49:25 AM

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Clarion XN3210 and is the answer not in the manual?

Clarion XN3210 Specifications

XN3410

Audio Specifications IconAudio Specifications
frequency response20Hz ~ 20kHz
signal to noise ratio97db
total harmonic distortion (THD).10% all channels driven
Input Sensitivity IconInput Sensitivity
low level input sensitivity200mV ~ 6.0V

XN3210

Audio Specifications IconAudio Specifications
frequency response20Hz ~ 20kHz
signal to noise ratio95db
total harmonic distortion (THD).10% all channels driven
Input Sensitivity IconInput Sensitivity
low level input sensitivity200mV ~ 6.0V
speaker level input sensitivity500mV ~ 13V
Power Output IconPower Output
max power output360W (180W x2)
continuous power output180W (90W x2) @ 1.0% THD
2-ohm stereo output150W x 2 @ 1.0% THD
bridged power250W x 1 @ 1.0% THD
Power Consumption IconPower Consumption
current consumption29A @ 382 Watts
Weight and Dimensions IconWeight and Dimensions
dimensions2-9/16" H x 9" W x 13" L
