4-4 GEX40-50 Operator Compartment

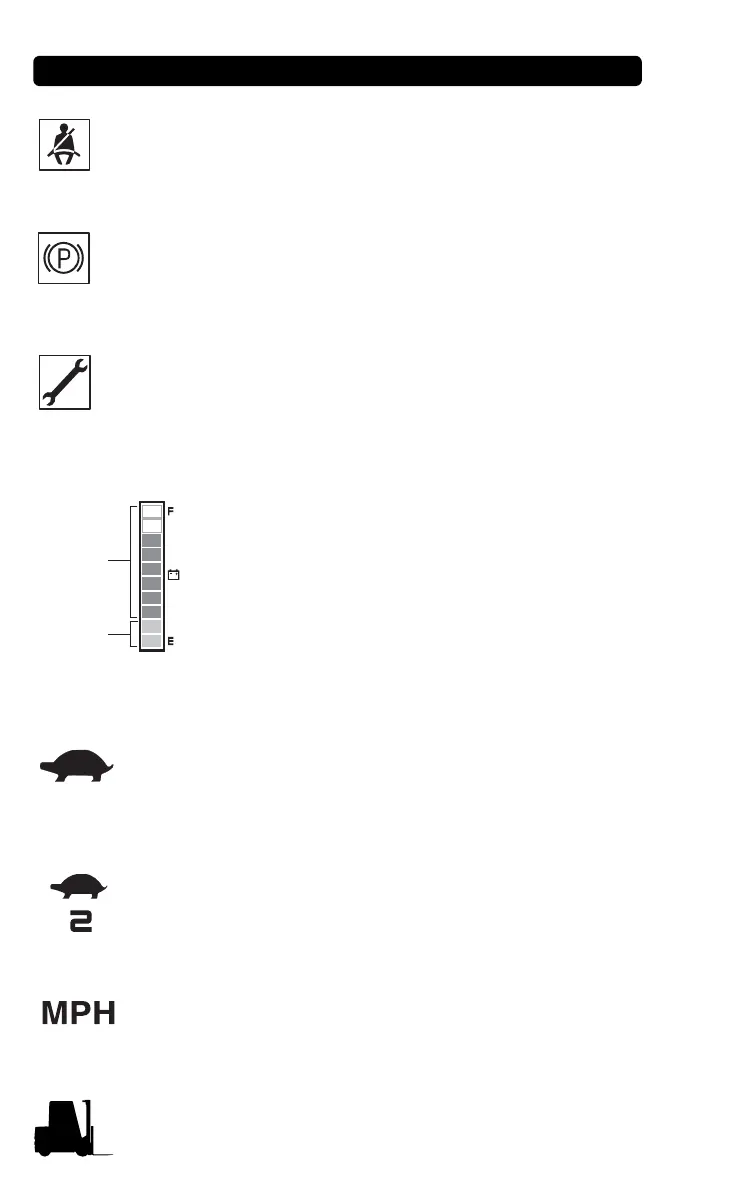

Seat Belt: At start up this symbol displays along with an
audio alarm for 4 seconds. This display reminds you to
fasten your seat belt.
Parking Brake: The symbol is displayed when the parking
brake is applied. Release parking brake to operate truck.
Alarm Code: This symbol will be displayed anytime the
inputs to the controls are missing, incorrect or anytime the
controls sense a fault in the circuits or in the controls
themselves.
Battery discharge indicator : Displays the
battery state of charge of forklift truck. Each bar
indicates 10% charge condition. The top 8 LEDs
are blue and indicate proper battery running
level. The bottom two LEDs are red and indicate
the need to charge the battery. If it is less than
10% (1 bar), the LEDs will flicker and buzzer
sound.
Speed limit function indicator : This indicator lamp
shows that the traveling speed is limited. It will turn on
when the traveling speed limit function of fork lift truck is
active.
Slow-speed indicator : The traveling speed of truck is
limited to a set speed. The upper mark is slow speed
operating icon, and the figure shows the limited max.
speed. (In example, the limited max. speed is 2MPH)
Traveling speed indicator : This icon is shown when the
truck is moving. The speed will be displayed in MPH on
the digital display.
Bl u e co l o r
Re d co l o r
