Clarke AT101 User Manual

18
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

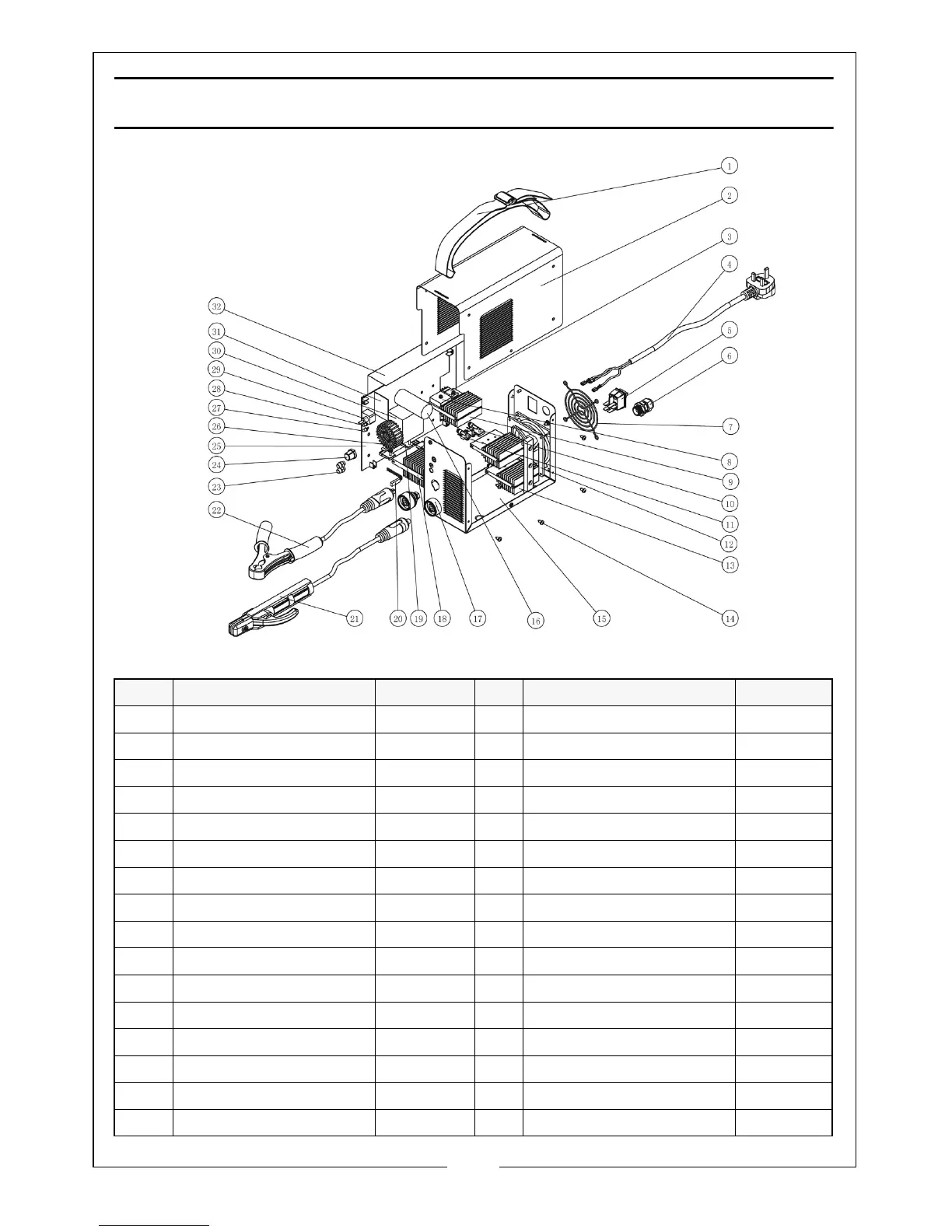

EXPLODED DIAGRAM & PARTS LIST AT101
NO DESCRIPTION PAR T N O NO DESCRIPTION PART NO
1 Belt SWAT10101 17 Quick Connector SWAT10117
2 Steel Cover SWAT10102 18 Heat Sink for F.R.D. SWAT10118
3 IGBT SWAT10103 19 Fast Recovery Diode SWAT10119
4 Main Cable SWAT10104 20 Temperature Controller SWAT10120
5 Switch SWAT10105 21 Electrode Holder SWAT10121
6 Cable Clip SWAT10106 22 Earth Clamp SWAT10122
7 Fan Cover SWAT10107 23 LED Cover SWAT10123
8 Bridge SWAT10108 24 Potentiometer Knob SWAT10124
9 Heat Sink for IGBT SWAT10109 25 PCB SWAT10125
10 IGBT SWAT10110 26 Inductance SWAT10126
11 Fast Recovery Diode SWAT10111 27 Yellow LED SWAT10127
12 Fan SWAT10112 28 Green LED SWAT10128
13 Heat Sink for IGBT SWAT10113 29 Potentiometer SWAT10129
14 4.2 x 9.5 Screw SWAT10114 30 Transformer SWAT10130
15 Steel Base SWAT10115 31 Control PCB SWAT10131
16 Capacitor SWAT10116 32 Insulating Clapboard SWAT10132
