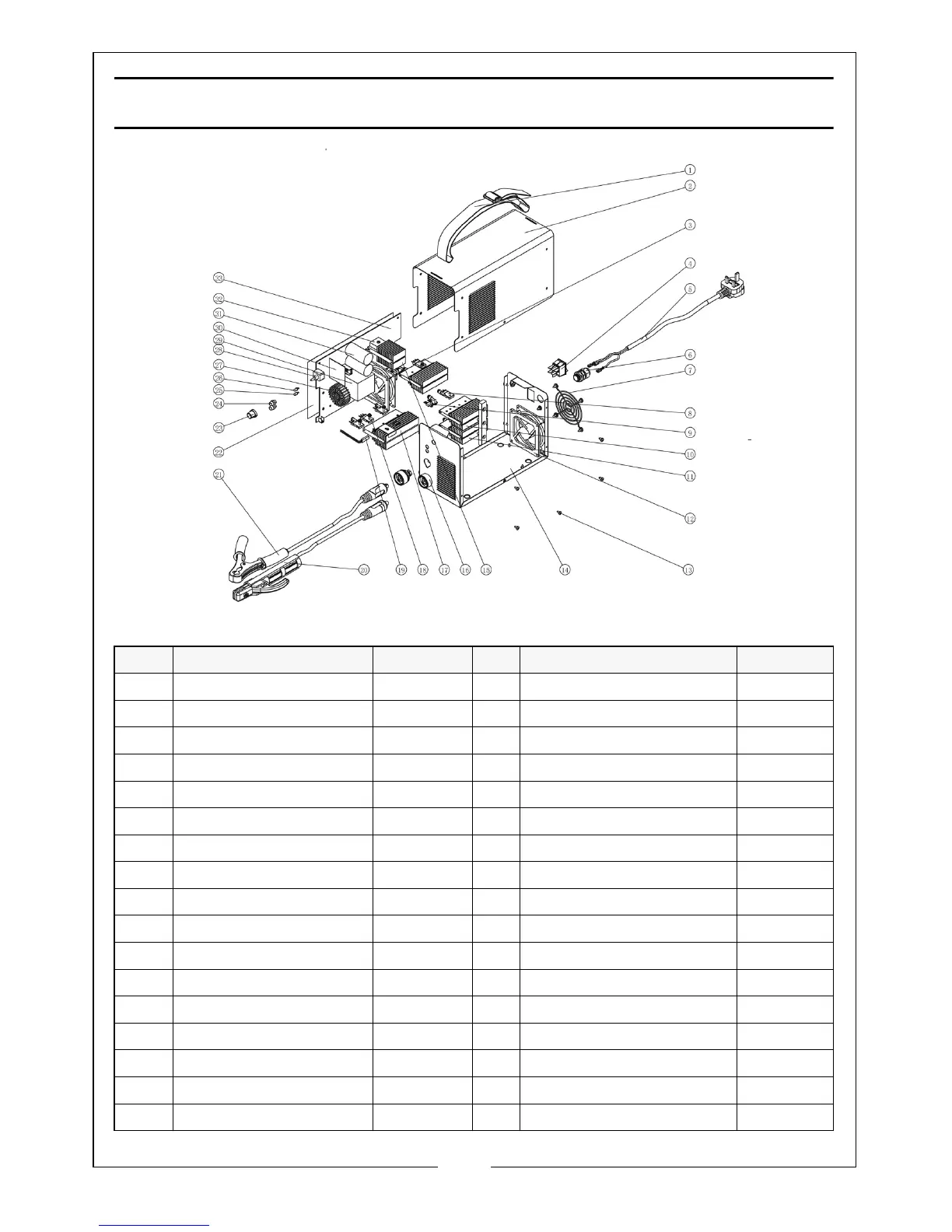

EXPLODED DIAGRAM & PARTS LIST AT132
NO DESCRIPTION PAR T NO NO DESCRIPTION PART NO
1 Belt SWAT13201 18 Fast Recovery Diode SWAT13218
2 Steel Cover SWAT13202 19 Temperature Controller SWAT13219
3 IGBT SWAT13203 20 Electrode Holder SWAT13220
4 Switch SWAT13204 21 Earth Clamp SWAT13221
5 Main Cable SWAT13205 22 Insulating Clapboard SWAT13222
6 Cable Clip SWAT13206 23 Potentiometer Knob SWAT13223
7 Fan Cover SWAT13207 24 LED Cover SWAT13224
8 IGBT IKW40N60H3 SWAT13208 25 Yellow LED SWAT13225
9 Heat Sink for IGBT SWAT13209 26 Green LED SWAT13226
10 Fast Recovery Diode SWAT13210 27 Inductance SWAT13227
11 Heat Sink for IGBT SWAT13211 28 Potentiometer SWAT13228
12 Fan SWAT13212 29 Transformer SWAT13229
13 4.2x9.5 ST Screw SWAT13213 30 Control PCB SWAT13230
14 Steel Base SWAT13214 31 Capacitor SWAT13231
15 Heat Sink for Bridge SWAT13215 32 Bridge SWAT13232
16 Quick Connector SWAT13216 33 PCB SWAT13233
17 Heat Sink for F.R.D. SWAT13217
