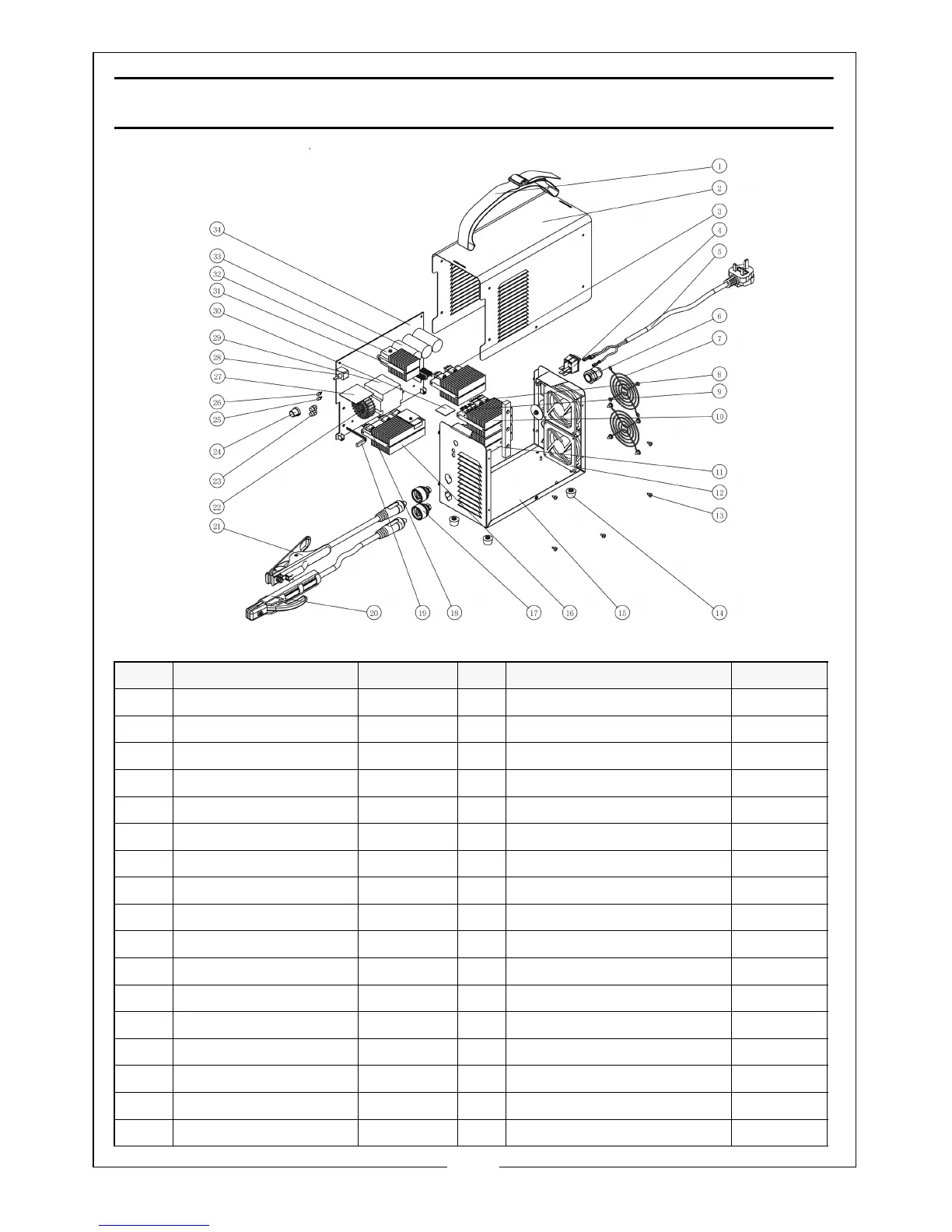

EXPLODED DIAGRAM & PARTS LIST AT161
NO DESCRIPTION PART NO NO DESCRIPTION PAR T NO
1 Belt SWAT16101 18 Fast Recovery Diode SWAT16118
2 Steel Cover SWAT16102 19 Temperature Controller SWAT16119
3 IGBT SWAT16103 20 Electrode Holder SWAT16120
4 Switch SWAT16104 21 Earth Clamp SWAT16121
5 Main Cable SWAT16105 22 Inductance SWAT16122
6 Cable Clip SWAT16106 23 LED Cover SWAT16123
7 Fan Cover SWAT16107 24 Potentiometer Knob SWAT16124
8 IGBT SWAT16108 25 Yellow LED SWAT16125
9 Fast Recovery Diode SWAT16109 26 Green LED SWAT16126
10 Heat Sink for IGBT SWAT16110 27 Control PCB SWAT16127
11 Heat Sink for IGBT SWAT16111 28 Potentiometer SWAT16128
12 Fan SWAT16112 29 Transformer SWAT16129
13 4.2 x 9.5 Screw SWAR16113 30 PFC Control PCB SWAT16130
14 Feet SWAT16114 31 Heat Sink for Bridge SWAT16131
15 Steel Base SWAT16115 32 Bridge SWAT16132
16 Heat Sink for F.R.D SWAT16116 33 Capacitor SWAT16133
17 Quick Connector SWAT16117 34 PCB SWAT16134
