Clarke CA7500 - Control Panel

CONTROL PANEL
The control panel is located on top of the unit, and all functions are operated by pressure pad

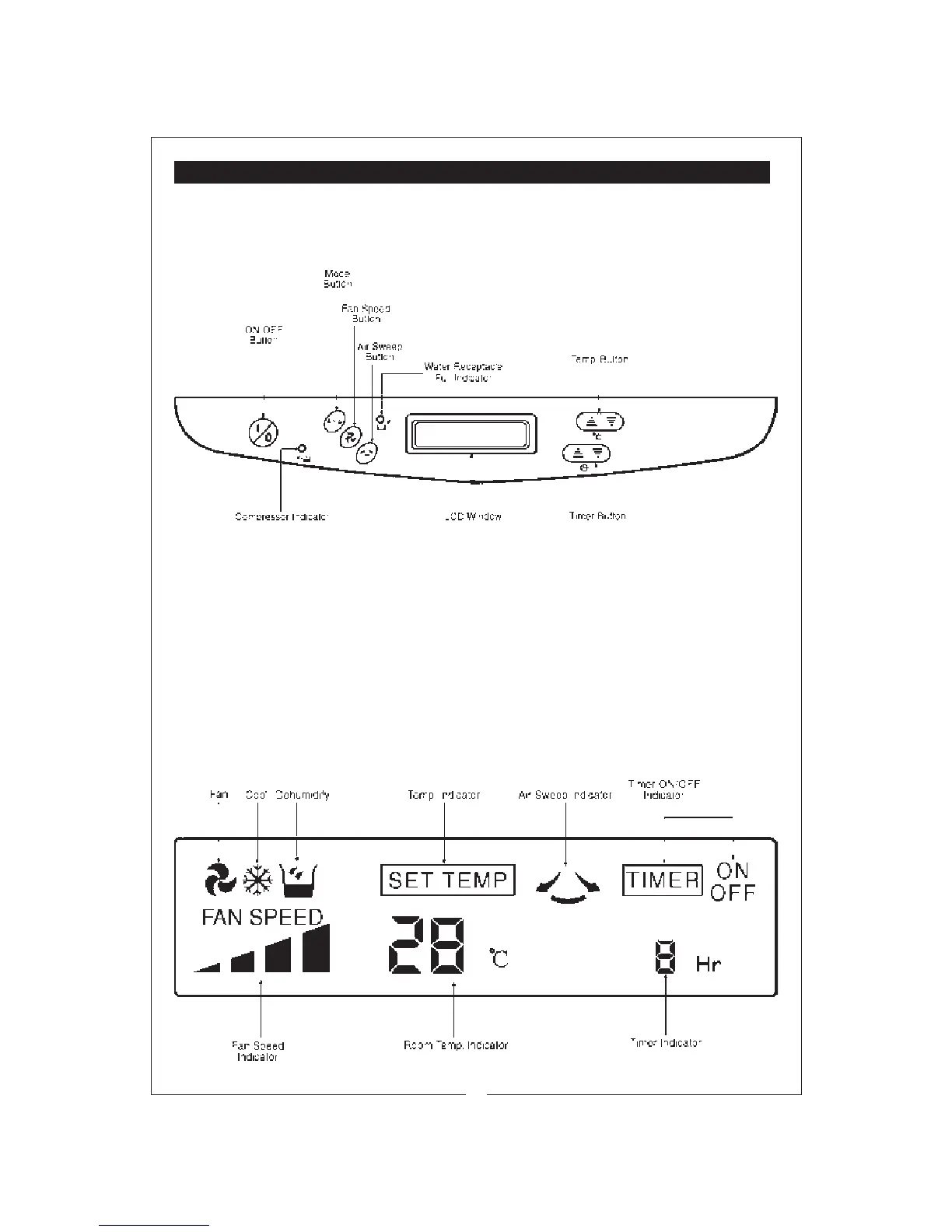

type controls as illustrated in fig.4.
In the centre of the panel is an LCD window, shown in fig.5, and in which is displayed the current
status of the unit.
i.e • selected mode
• fan speed
• temperature setting
• air sweep indicator
Fig.4
Fig.5
