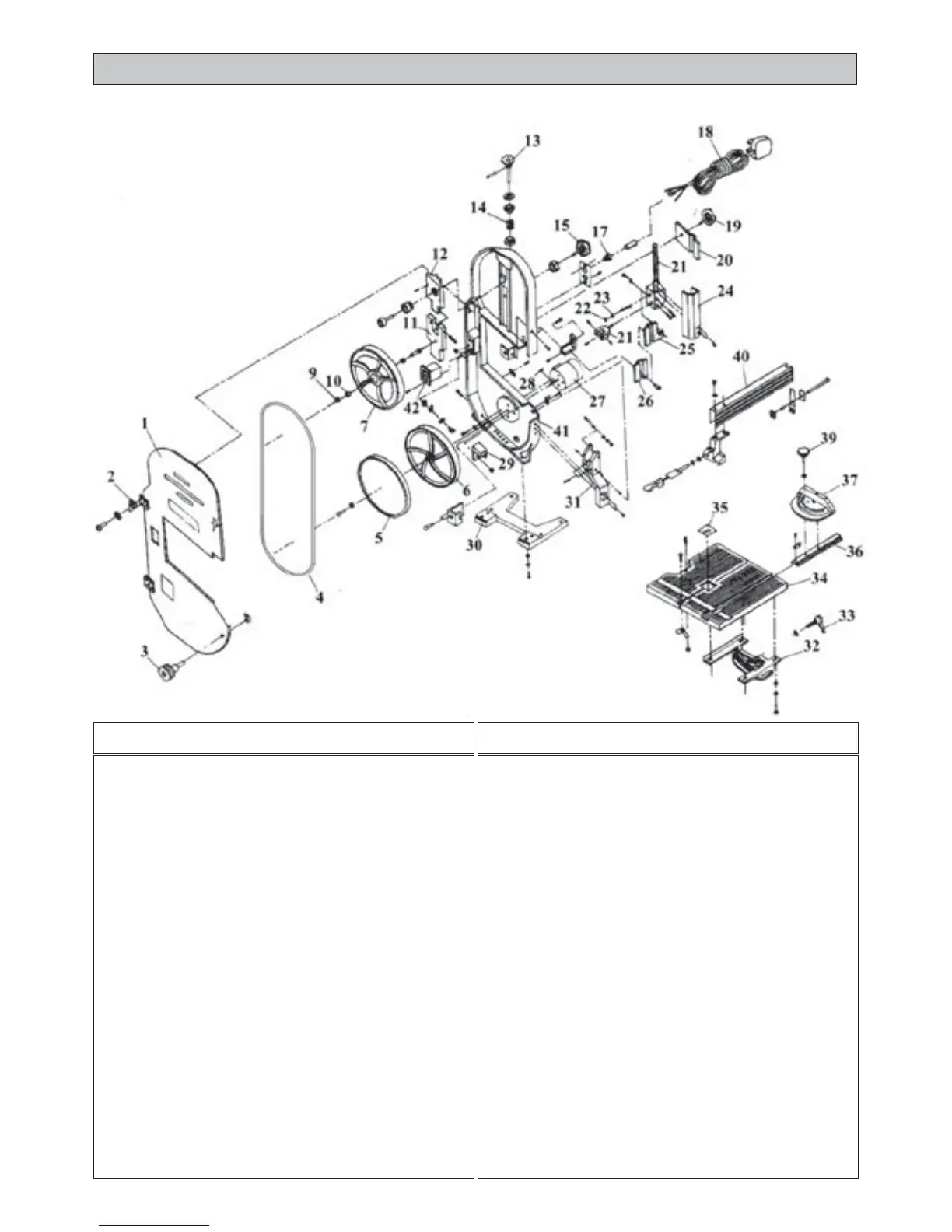

PARTS LIST & DIAGRAM
14
No. Description Part No.
1 Side Cover HT190001
2 Hinge HT190002
3 Side Cover Knob HT190003
4 Saw Blade HT190004
5 Rubber Tyre HT190005
6 Drive Wheel HT190006
7 Driven Wheel HT190007
9 Circlip HT190009
10 Bearing HT190010
11 Lower Plate HT190011
12 Upper Plate HT190012
13 Blade tension Adjuster Knob HT190013
14 Spring HT190014
15 Blade Tracking Adjuster Knob HT190015
17 Cable Grommet HT190017
18 Power Cable HT190018
19 Upper Guard Fixing Knob HT190019
20 Clamping Plate HT190020
21 Upper Guide Block HT190021
22 Circlip HT190022
23 Bearing HT190023
24 Upper Blade Guard complete HT190024
25 Lower Blade Guard complete HT190025
27 Motor HT190027
29 Brush complete HT190029
30 Stand HT190030
31 Lower Guide Block HT190031
32 Quadrant HT190032
33 Table Clamping Screw complete HT190033
34 Table HT190034
35 Table Insert HT190035
36 Guide bar HT190036
37 Mitre Gauge complete HT190037
39 Mitre Gauge Adjuster Knob HT190039
40 Parallel/Rip Fence complete HT190040
41 Casing HT190041
42 ON/OFF Switch complete HT190042
No. Description Part No.
To Next Page
