Motor Housing Assembly
ORIENT CUT CORNER AS SHOWN.
APPLY THIN COAT OF 91600A
PRIOR TO INSTALLATION
1
2
3
4
5
6
7
8
9

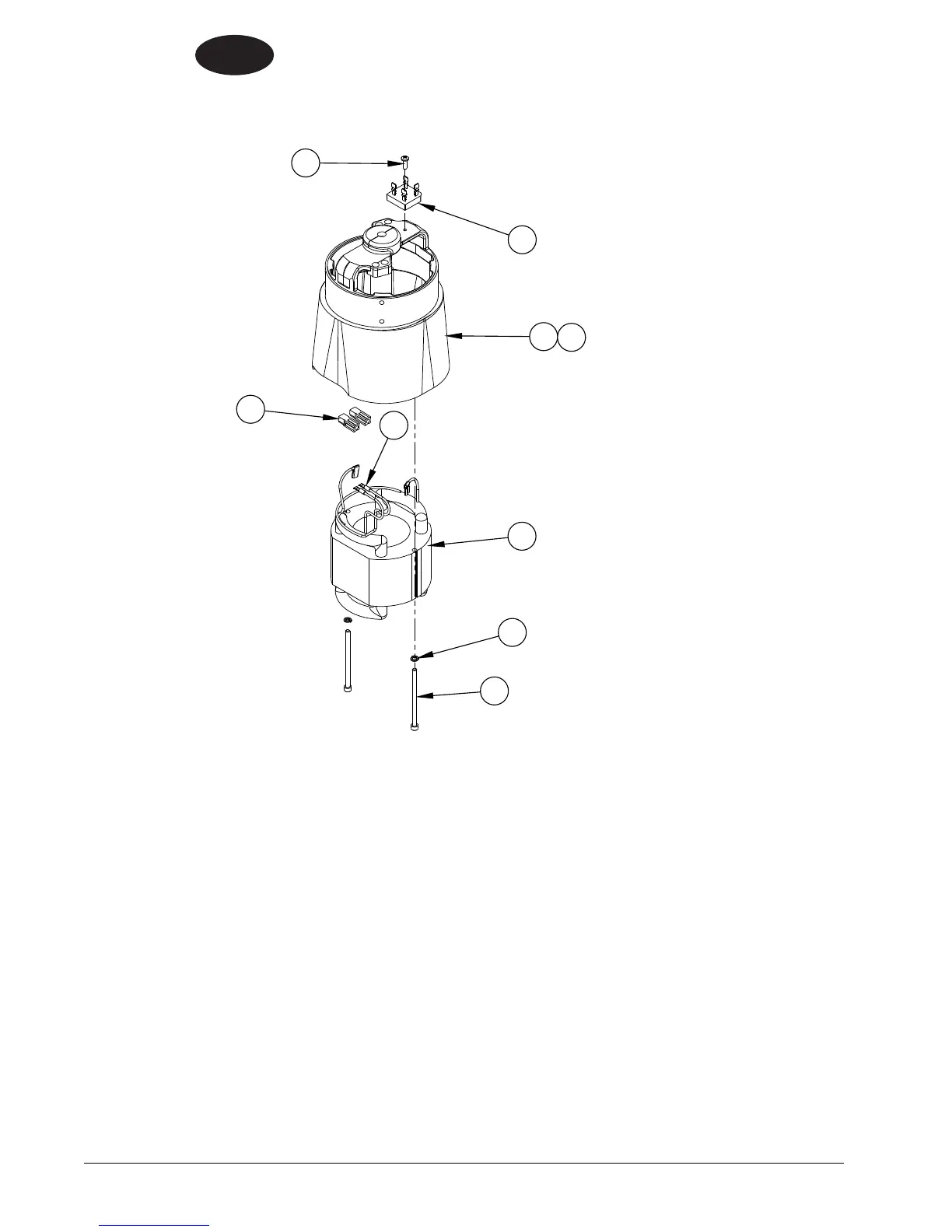

MOTOR HOUSING ASSEMBLY
Item Ref. No. Qty Description
1 86117A 2 Screw, 10-24X3 SHMS
2 980650 2 Washer, #10 Lock
3 40718A 1 Field 115V
4 29911A 1 Motor Housing, Polished (07170A, 07176A)
