Clarke G700 - Electrical Fault Finding; Electrical Diagram

Troubleshooting : Electrical Fault finding
* Engine RPM (No Load): 50 Hz = 3150 RPM
- 11 -

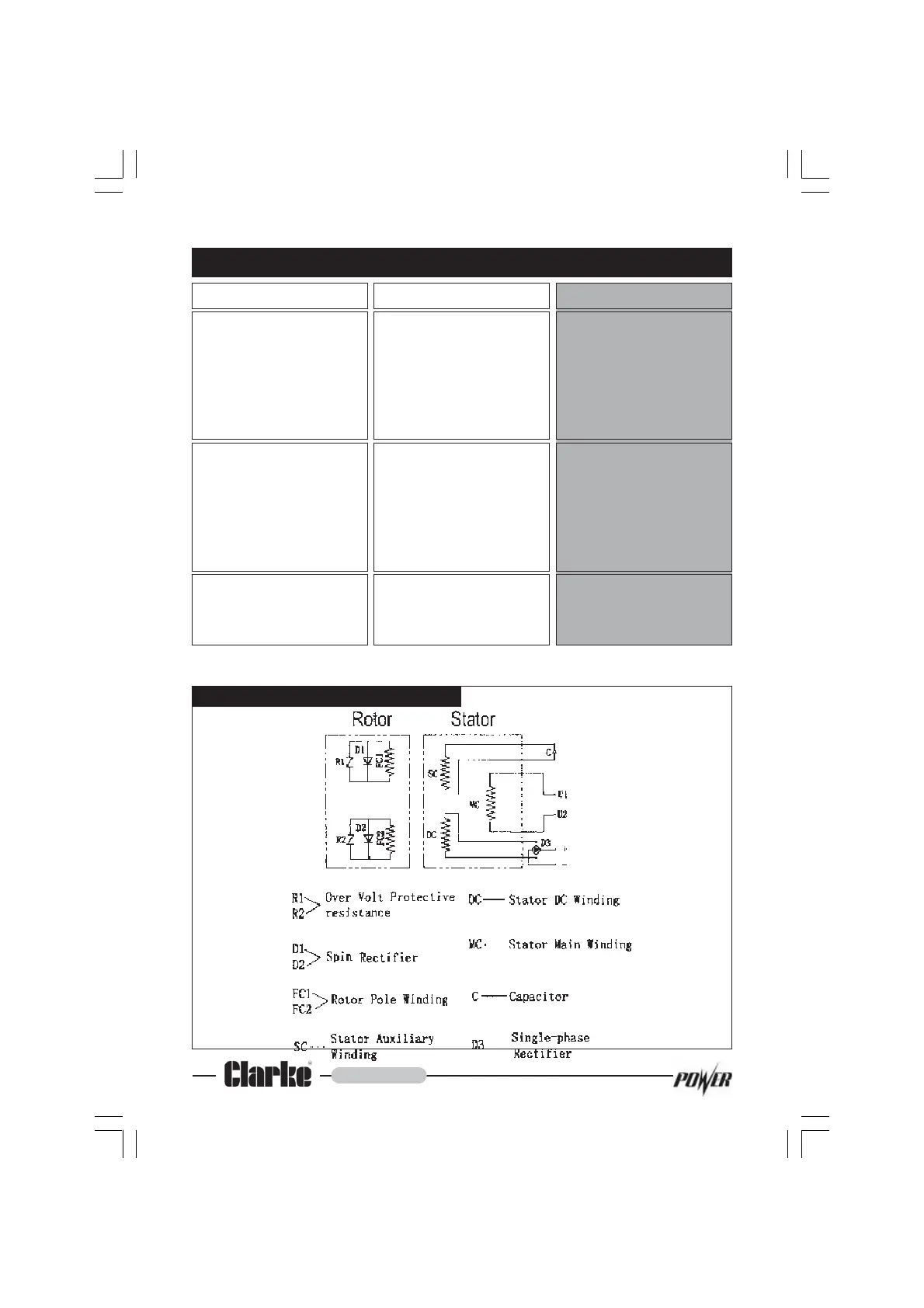

Figure (9) Electrical Diagram
Remedy
1. Reset AC safety trip
2. Check connection and
(or) replace lead
3. Contact Clarke Servicing
4. Contact Clarke Servicing
1. Reset DC safety trip
2. Check connection and
(or) replace lead
3. Contact Clarke Servicing
4. Contact Clarke Servicing
1. Set Engine RPM *
2. Contact Clarke Servicing
Problem
AC Indicator Light on :
No AC Output
No DC Output
Erratic Supply
Possible Cause
Tripped Circuit Breaker
Poor connection or
faulty lead
Broken AC connector
Faulty Circuit Breaker
Tripped Circuit Breaker
Poor connection or
faulty lead
Broken DC connector
Faulty Circuit Breaker
Incorrect engine RPM
Internal Generator
problem
