9
Check the oil level, which should be midway across the
sight glass, as shown in Fig.3.
Remove the breather and top up, using a funnel, with Clarke
compressor oil (SAE40).
Drain and replace the oil after 6 months.
When replacing the breather, unscrew the cap
and check the filter for cleanliness as shown in
Fig.4. if it is badly contaminated, it should be
replaced, otherwise, it may be washed gently in
soapy water, rinsed thoroughly and dried before
replacing
Fig. 4
Fig.3

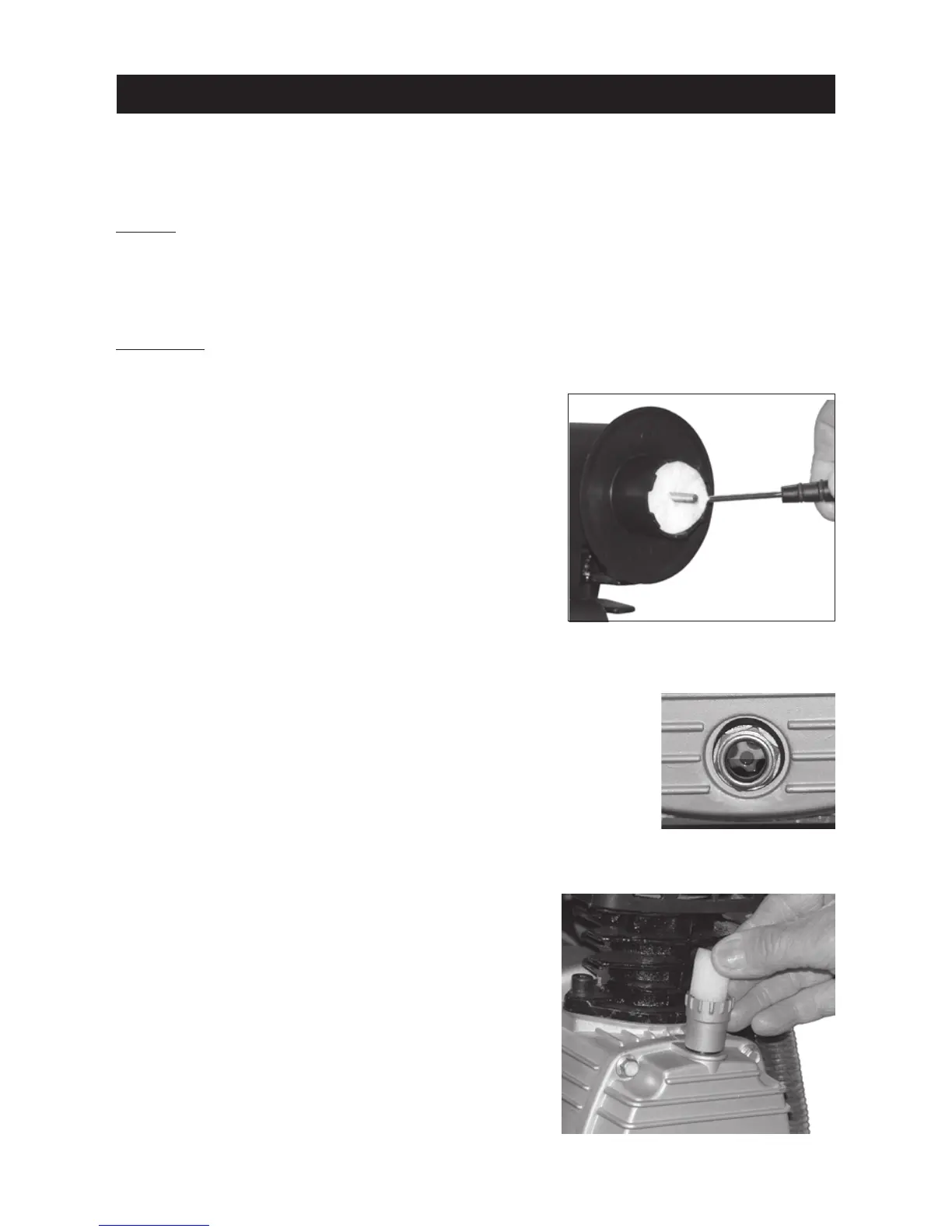

ROUTINE MAINTENANCE
IMPORTANT: Before carrying out any of this service work, always disconnect the
machine from the mains supply, drain the air receiver and, if necessary, allow the
machine to cool down before starting work.
Daily
Before use, always open the drain valve to ensure that any condensate, which
may have accumulated, is drained off.
Before use, make sure the cylinder head bolts are securely tightened.
Monthly
It is important to keep the Compressor clean, with the help of a small soft brush
and vacuum cleaner. In particular, the air intake
filter should be inspected at least MONTHLY, and
more often in dusty conditions, so that it is always
kept free of any dirt particles, which if not
cleaned away will affect the performance of
the machine.
To clean the air intake filter, unscrew the cover
and carefully prise out the element shown in
Fig.2. Clean the inner housing using a cloth or
brush.
If the filter is clogged or badly blackened, it should
be replaced. It is not possible to wash the filter
Fig.2
